Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION SENSOR

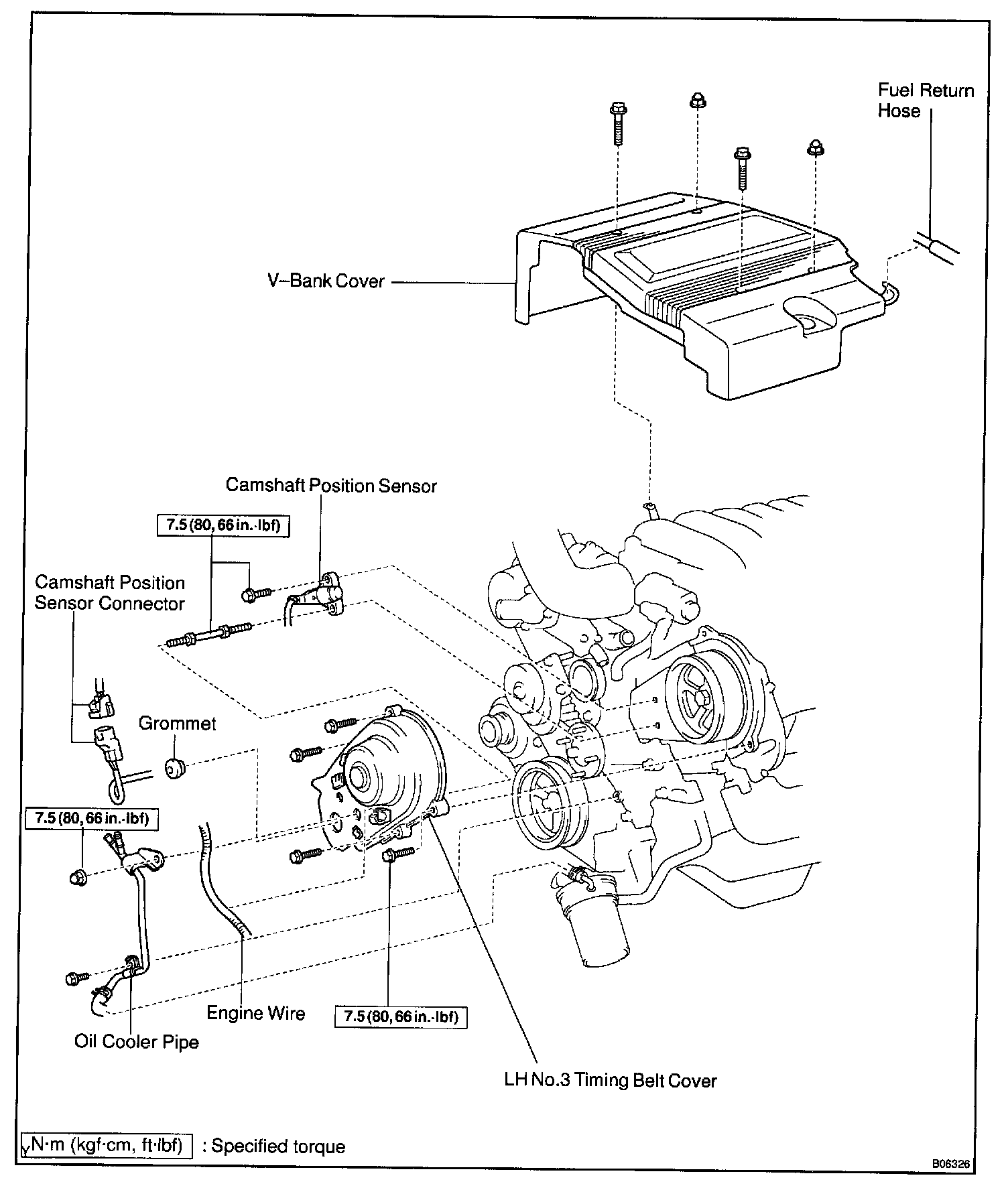

COMPONENTS

REMOVAL
1. REMOVE V-BANK COVER
2. DRAIN ENGINE COOLANT
3. DISCONNECT UPPER RADIATOR HOSE
4. REMOVE LH NO.3 TIMING BELT COVER

5. REMOVE CAMSHAFT POSITION SENSOR

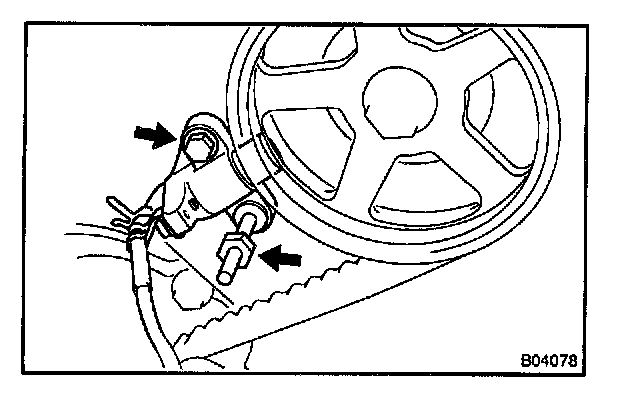

Remove the bolt, stud bolt and camshaft position sensor

INSTALLATION

1. INSTALL CAMSHAFT POSITION SENSOR

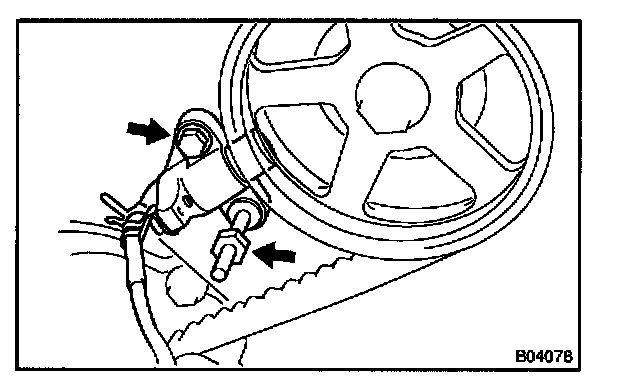

Install the camshaft position sensor with the bolt and stud bolt

Torque: 7.5 Nm (80 kg.cm, 66 in.lb)

2. INSTALL LH NO.3 TIMING BELT COVER
3. CONNECT RADIATOR HOSE
4. INSTALL V-BANK COVER
5. FILL ENGINE COOLANT
6. CHECK ENGINE COOLANT FOR LEAKS
7. CHECK IGNITION TIMING
