Camshaft Position Sensor: Testing and Inspection

INSPECT CAMSHAFT POSITION SENSOR

a. Remove the V-bank cover.
b. Disconnect the camshaft position sensor connector.

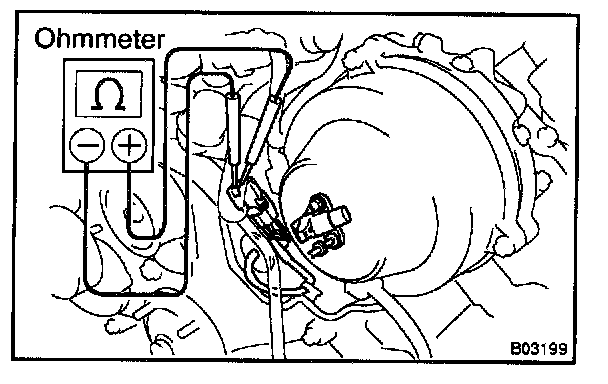

c. Using an ohmmeter, measure the resistance between terminals.

Resistance:
Cold: 835 - 1,400 ohms
Hot: 1,060 - 1,645 ohms

If the resistance is not as specified, replace me camshaft position sensor.

d. Reconnect the camshaft position sensor connector.
e. Reinstall the V-bank cover.
