Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

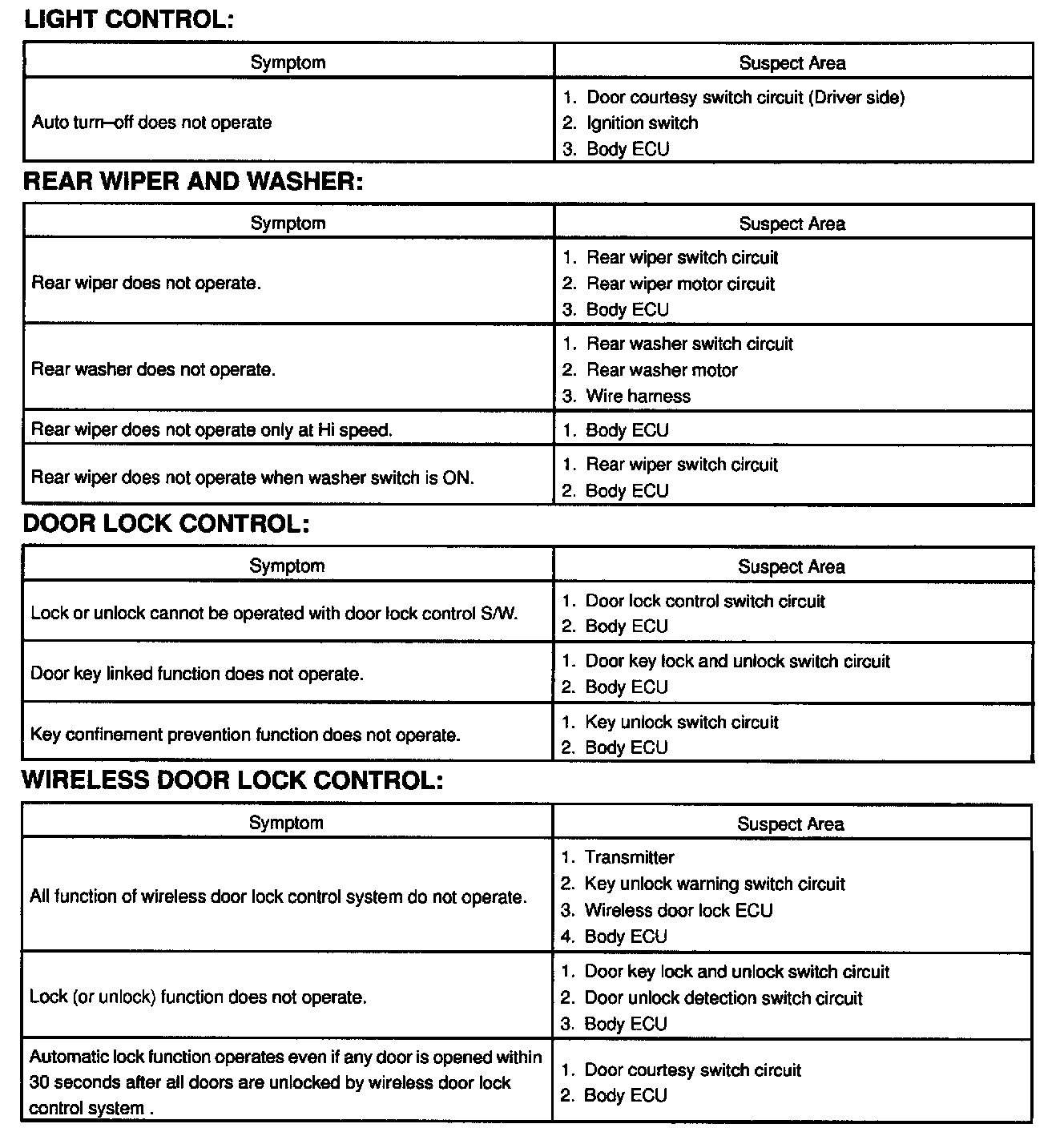

Problem Symptoms Table (Part 1 Of 2):

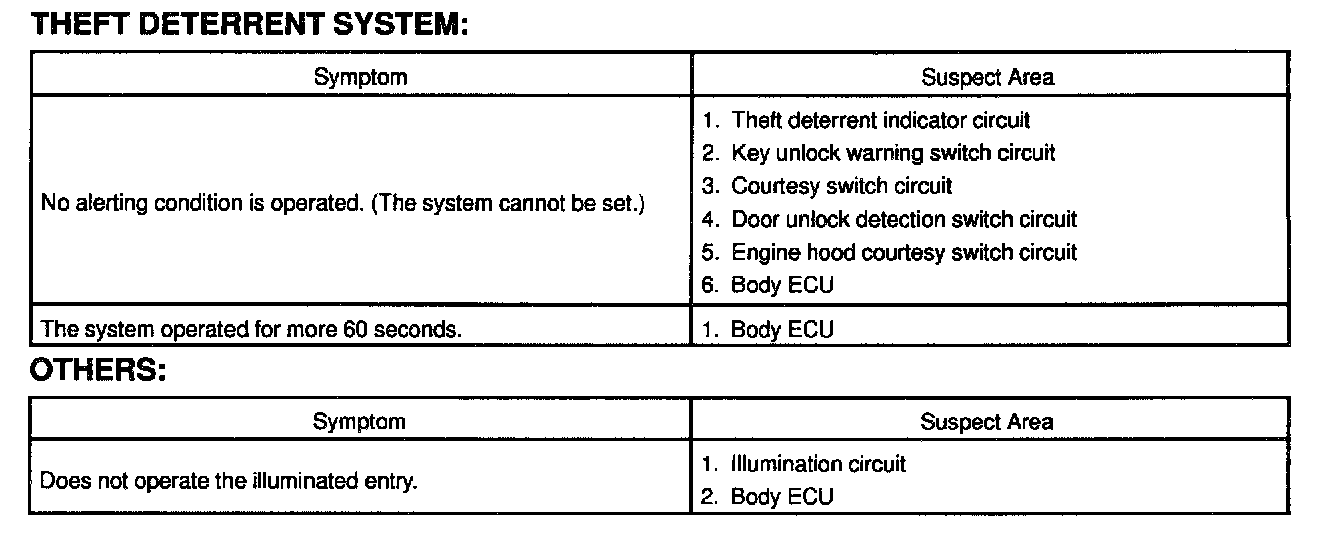

Problem Symptoms Table (Part 2 Of 2):
