Initial Inspection and Diagnostic Overview
>>
Fail-Safe Operation
Fail-Safe Operation

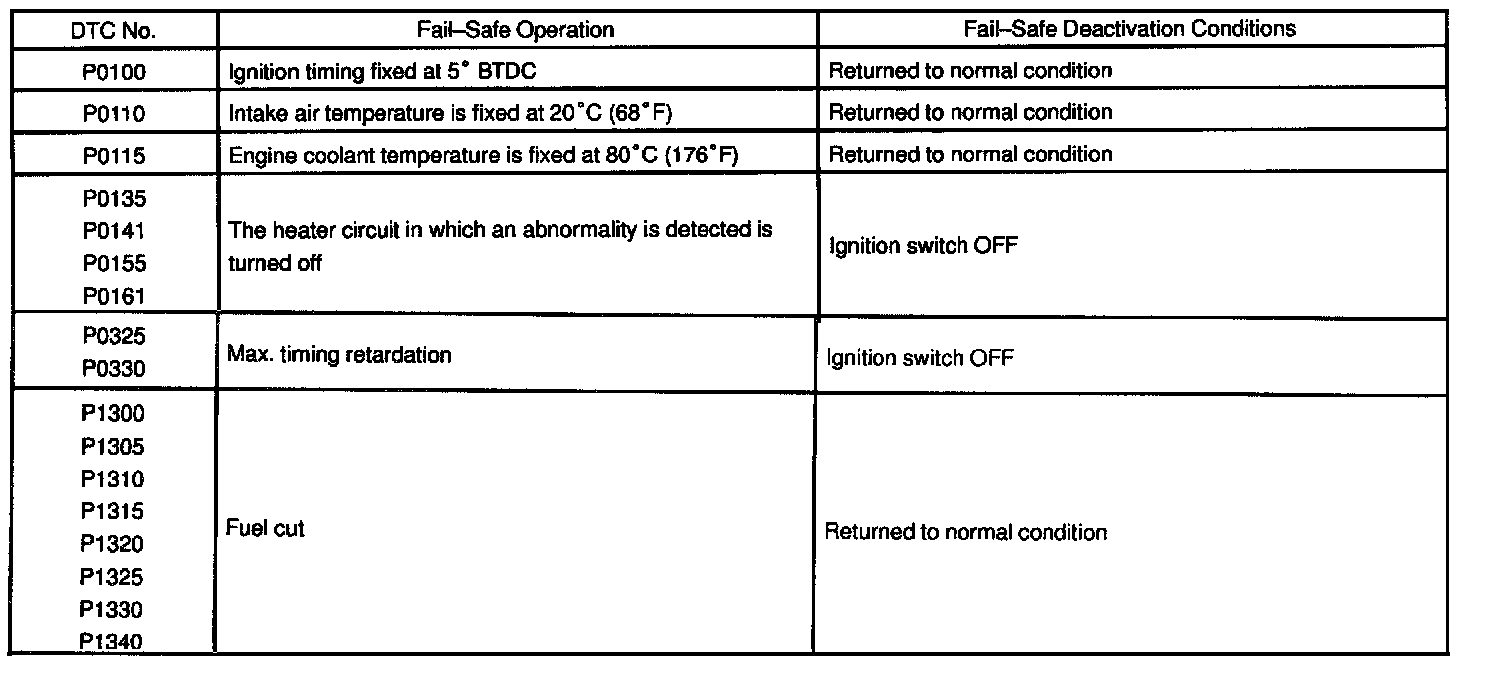

FAIL SAFE CHART
If any of the following codes is recorded, the ECM enters fails-safe mode.
