Ignition Coil: Service and Repair

IGNITION COIL

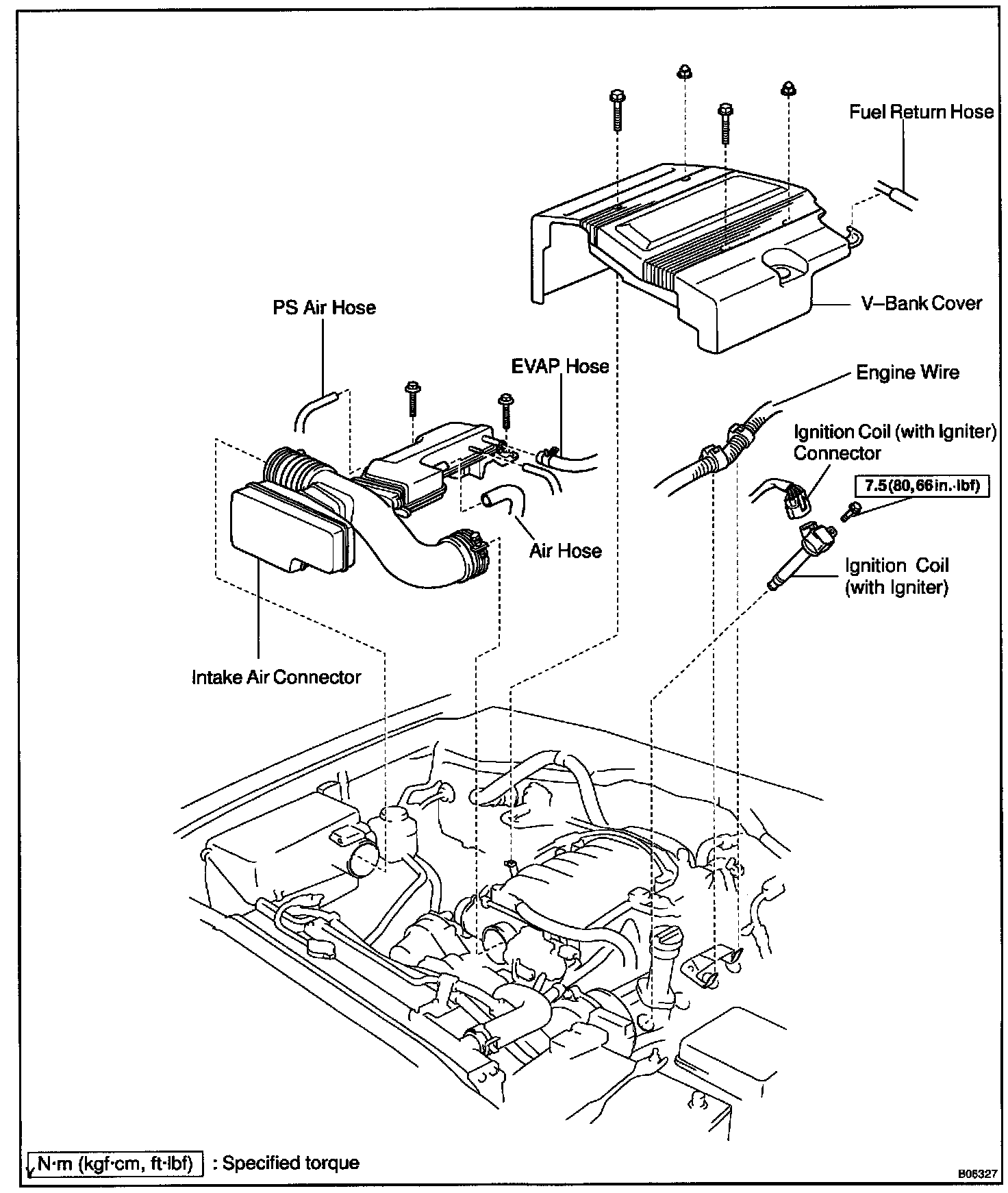

COMPONENTS

REMOVAL
1. REMOVE V-BANK COVER
2. REMOVE INTAKE AIR CONNECTOR
3. DISCONNECT ENGINE WIRE FROM LH CYLINDER HEAD COVER
Disconnect the 2 wire clamps and engine wire.




4. DISCONNECT IGNITION COIL (WITH IGNITER) CONNECTORS

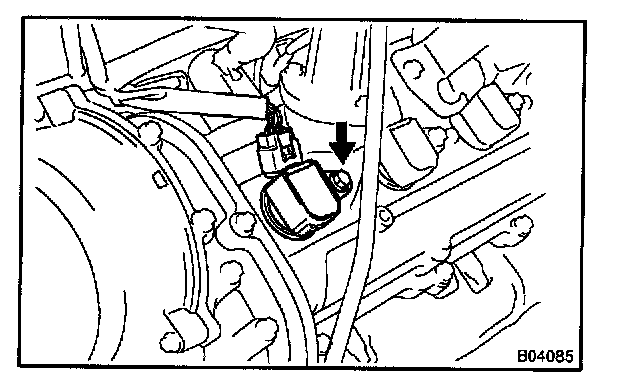

5. REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS
Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).

Torque: 7.5 Nm (80 kg.cm, 66 in.lb)

INSTALLATION
Installation is in the reverse order of removal.
