Ignition Timing: Testing and Inspection
INSPECTION1. REMOVE BATTERY CLAMP COVER
2. REMOVE INTAKE AIR CONNECTOR
3. REMOVE V-BANK COVER
4. WARM UP ENGINE
Allow the engine to warm up to normal operating temperature.

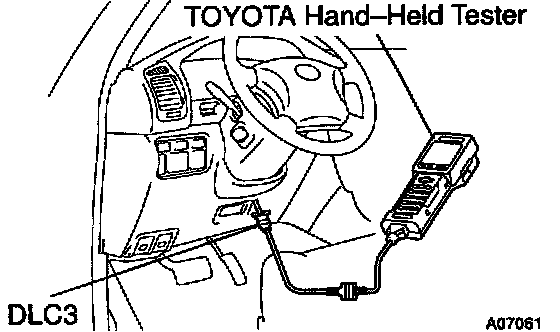

5. CONNECT TOYOTA HAND-HELD TESTER OR OBD II SCAN TOOL
a. Connect the hand-held tester or OBD II scan tool to the DLC3.
b. Please refer to the hand-held tester or OBD II scan tool operator's manual for further details.

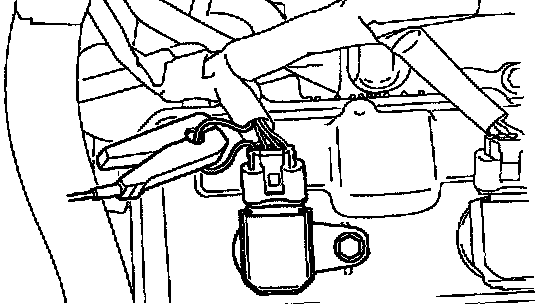

6. CONNECT TIMING LIGHT TO ENGINE
Connect the tester probe of a timing light to the wire of the ignition coil connector for No. 1 cylinder.
7. CHECK IDLE SPEED
a. Race the engine speed at 2,500 rpm for approx. 90 seconds.
b. Check the idle speed.
Idle speed: 700 ± 50 rpm
8. INSPECT IGNITION TIMING

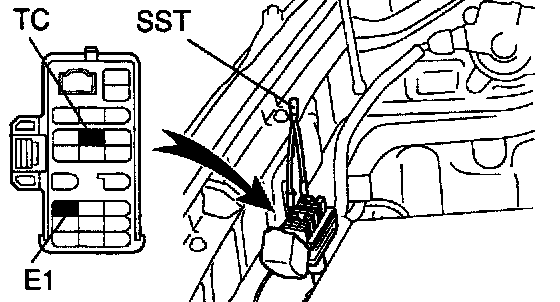

a. Using SST, connect terminals TC and E1 of the DLC1.
SST 09843-18020

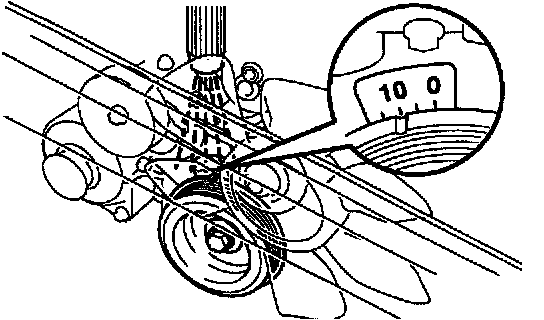

b. Using a timing light, check the ignition timing.
Ignition timing: 5 - 15° BTDC @ idle (Transmission in neutral position)
c. Remove the SST from the DLC1.
SST 09843-18020
9. DISCONNECT TIMING LIGHT FROM ENGINE
10. DISCONNECT TOYOTA HANDHELD TESTER OR OBD II SCAN TOOL
11. REINSTALL V-BANK COVER
12. REINSTALL INTAKE AIR CONNECTOR
13. REINSTALL BATTERY CLAMP COVER
