Harness Locations

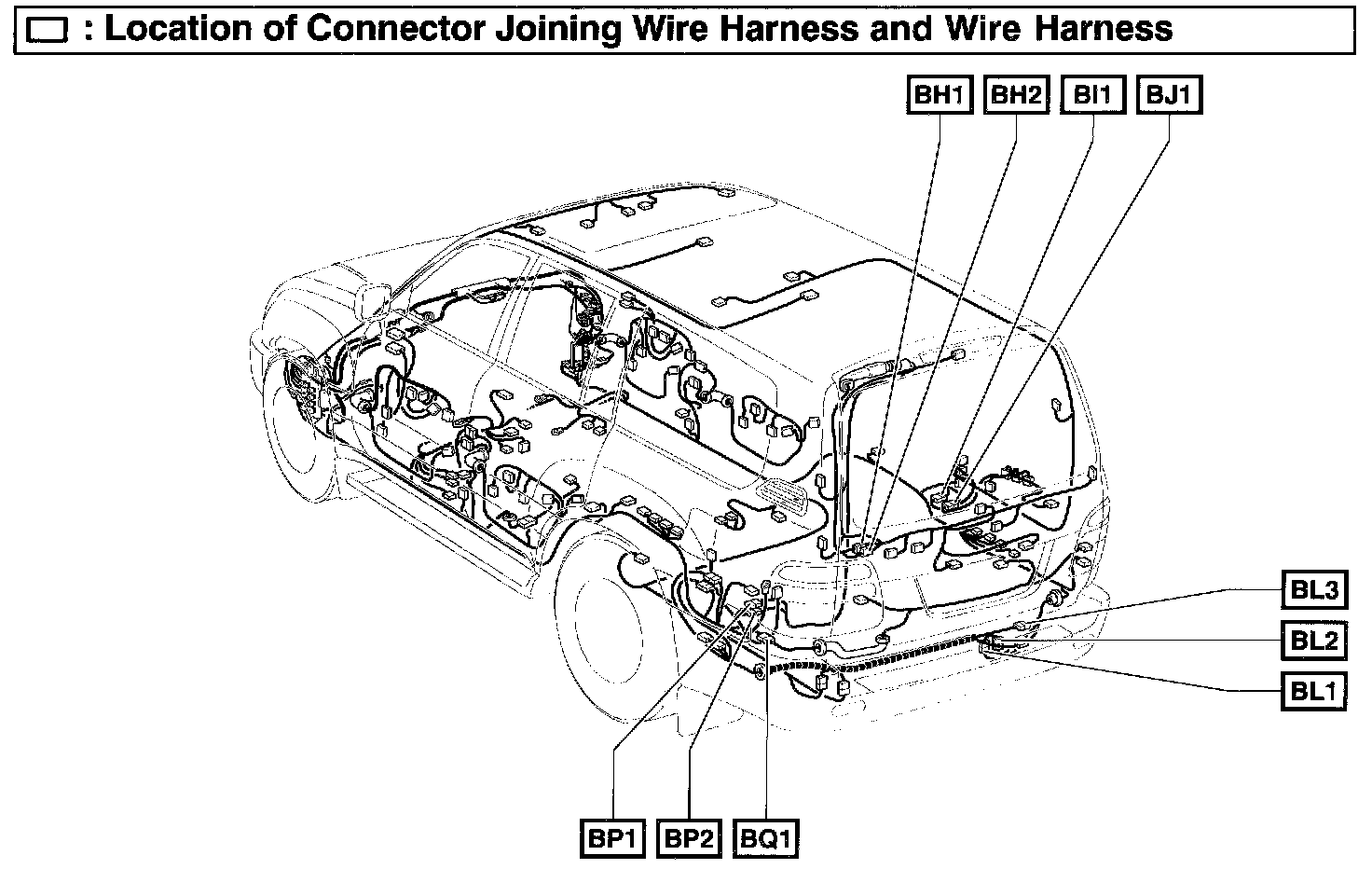

Fig 50a - Location Of Connector Joining Wire Harness And Wire Harness:



Fig 58a - Location Of Connector Joing Wire Harness And Wire Harness:

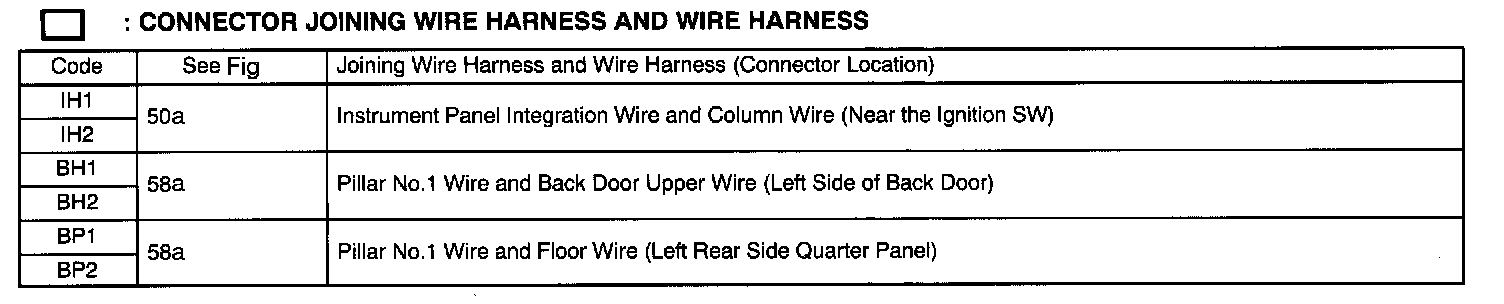

Connector Joining Wire Harness And Wire Harness:
