Splice Locations

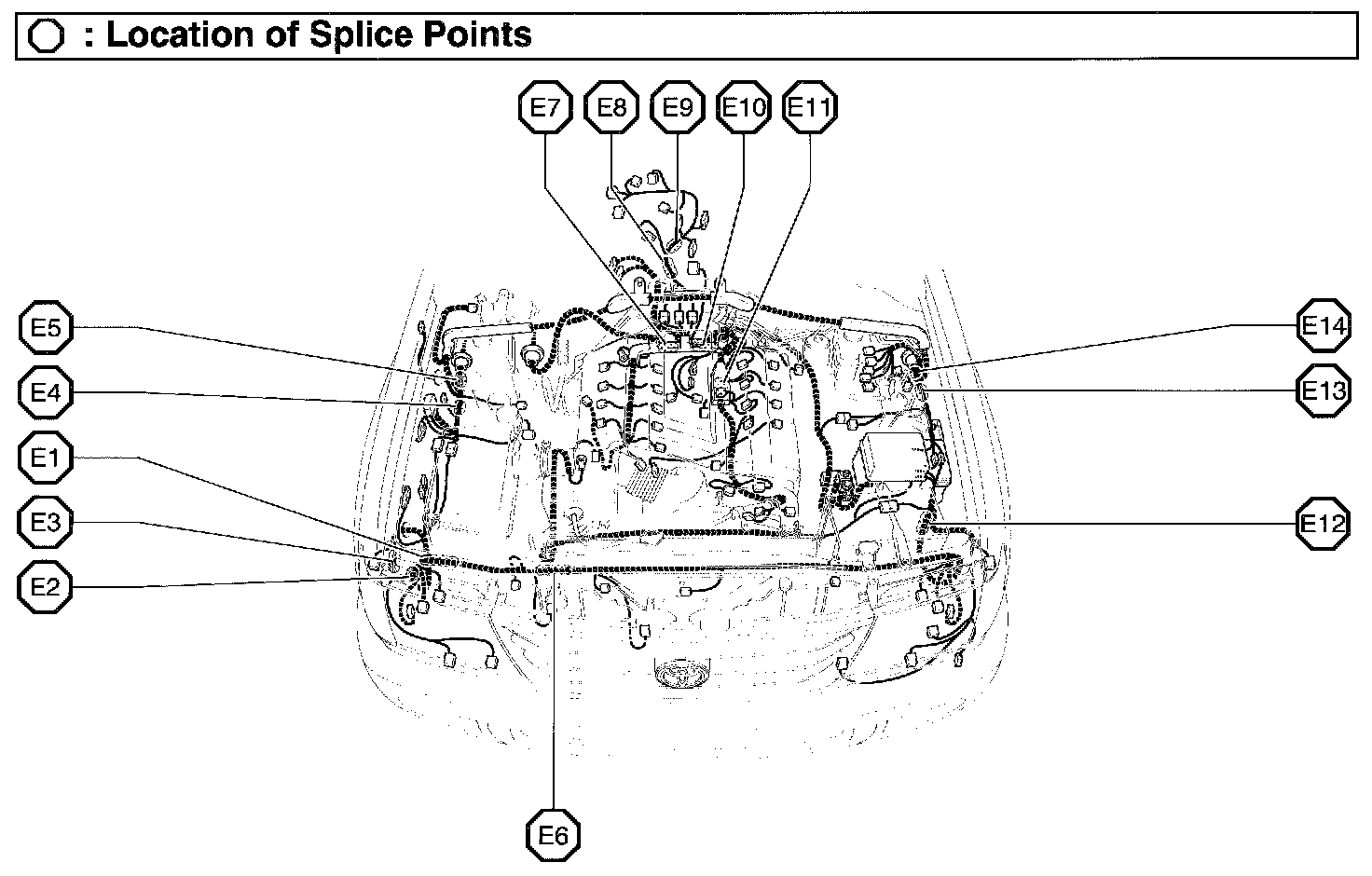

Fig-46b - Location Of Splice Points:

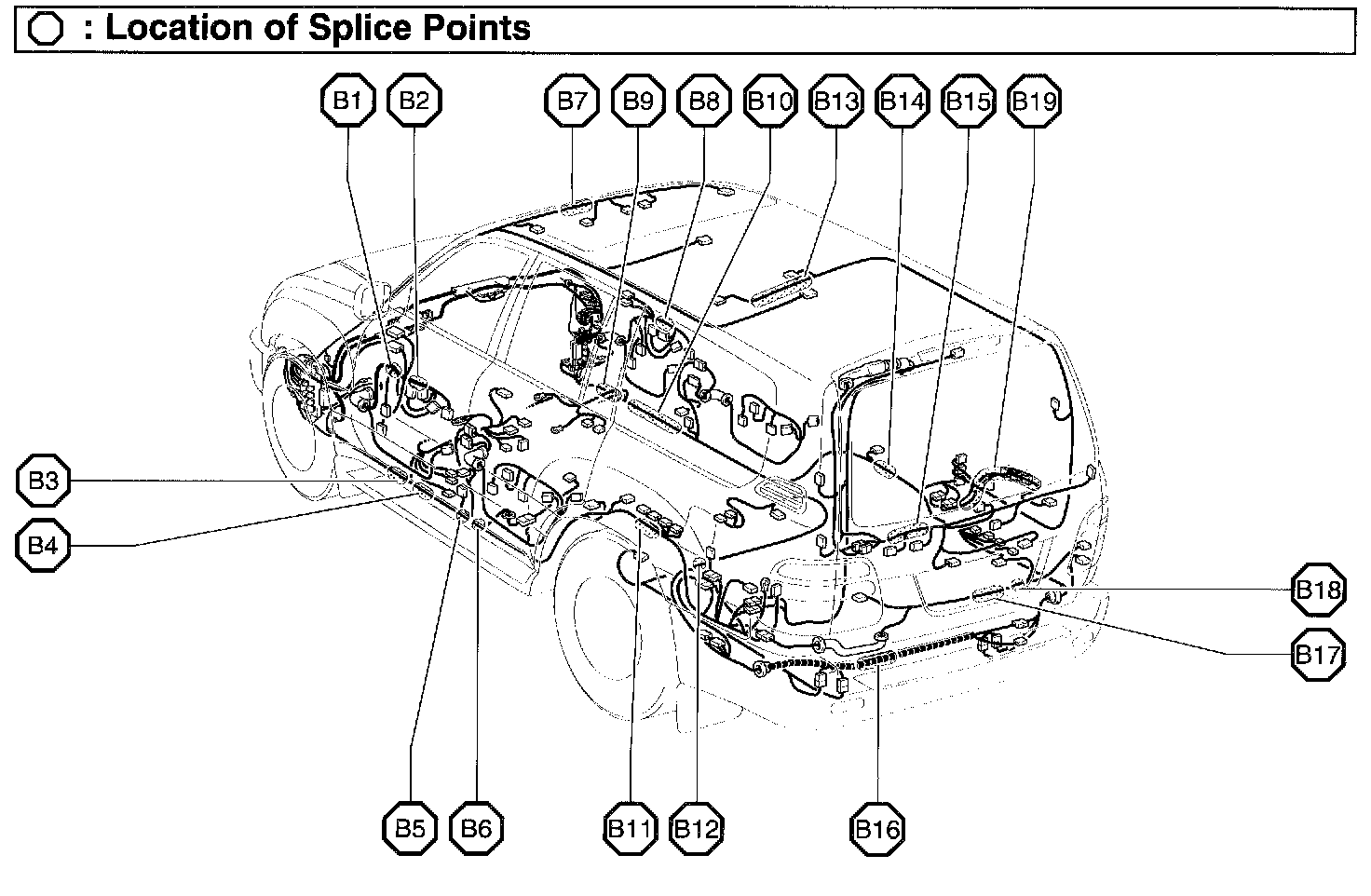

Fig 58b - Location Of Splice Points:

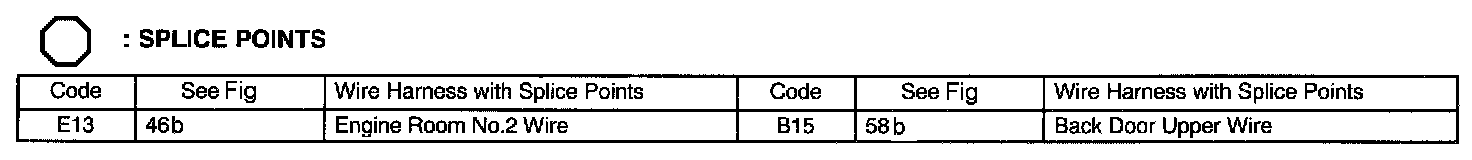

Splice Points:
