Pattern Select Switch CKT/2ND Start Switch Indicator Light CKT

Pattern Select Switch Circuit (2ND Start Switch) & 2ND Start Switch Indicator Light Circuit

CIRCUIT DESCRIPTION
When 2nd start mode is selected with the pattern select switch, the ECM controls the solenoid valves and the transmission starts from 2nd gear.
In D position, the transmission automatically shifts up through 3rd to O/D as usual.
In 2nd position, the transmission is held in 2nd gear.

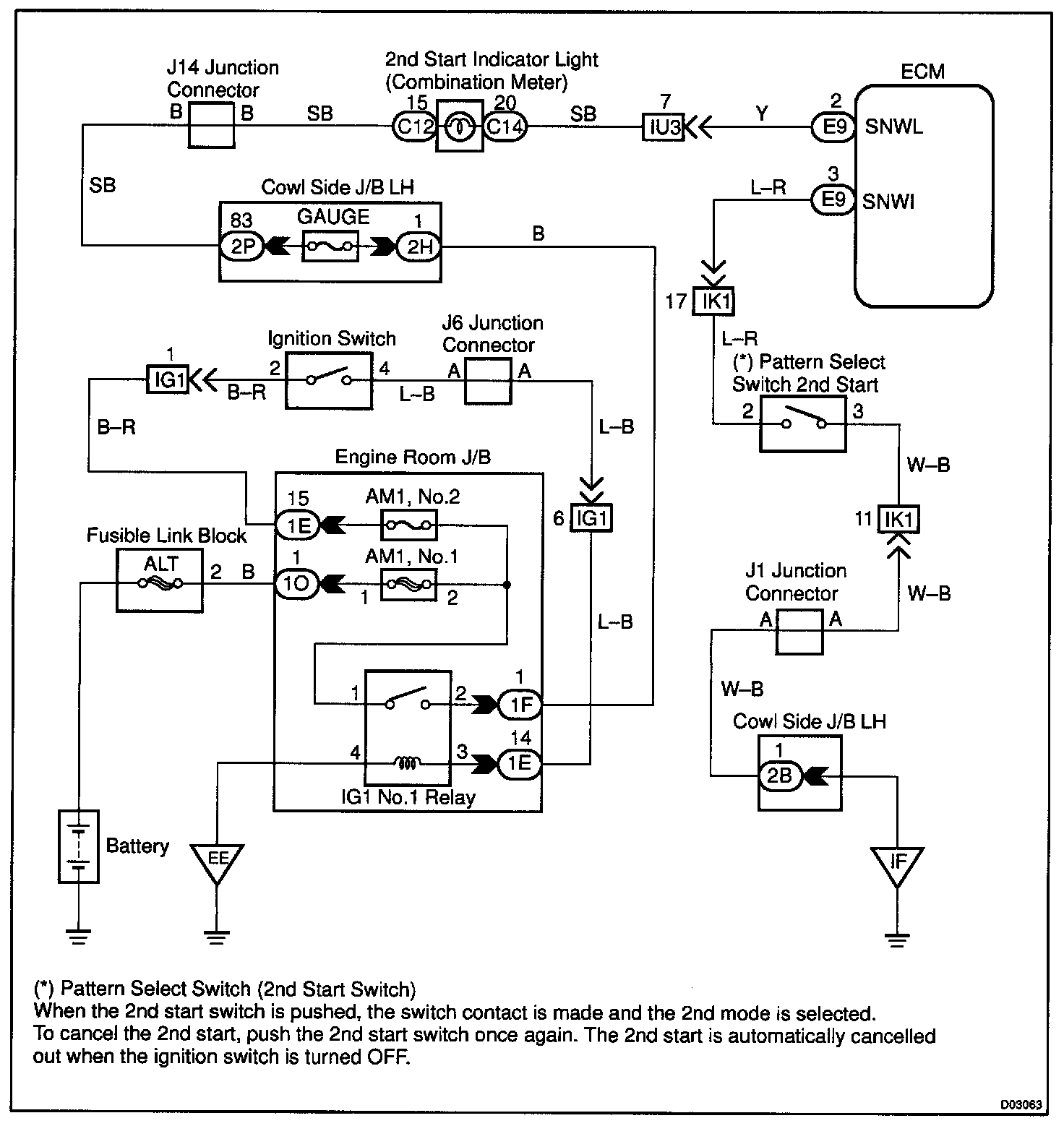

WIRING DIAGRAM

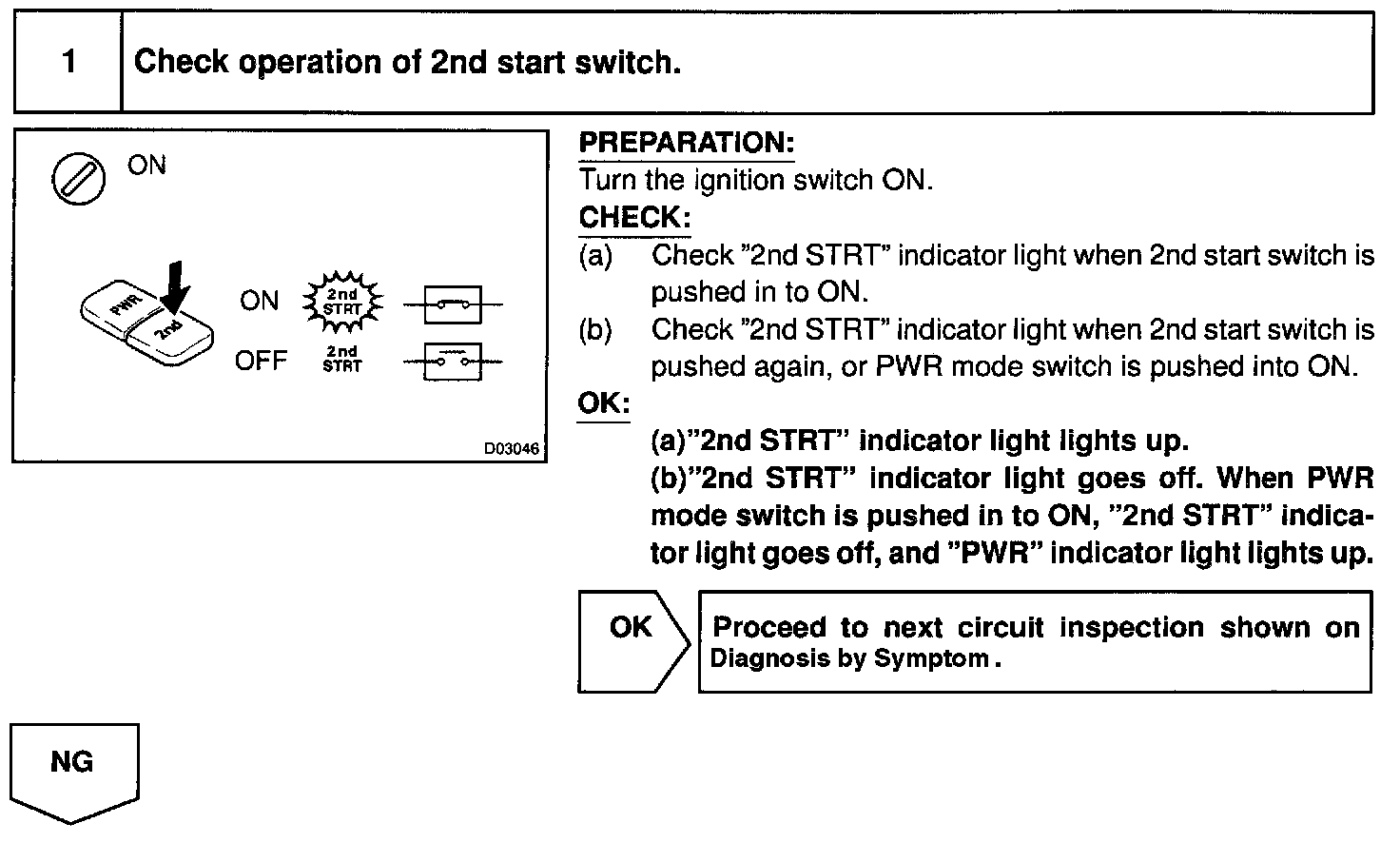

Step 1:

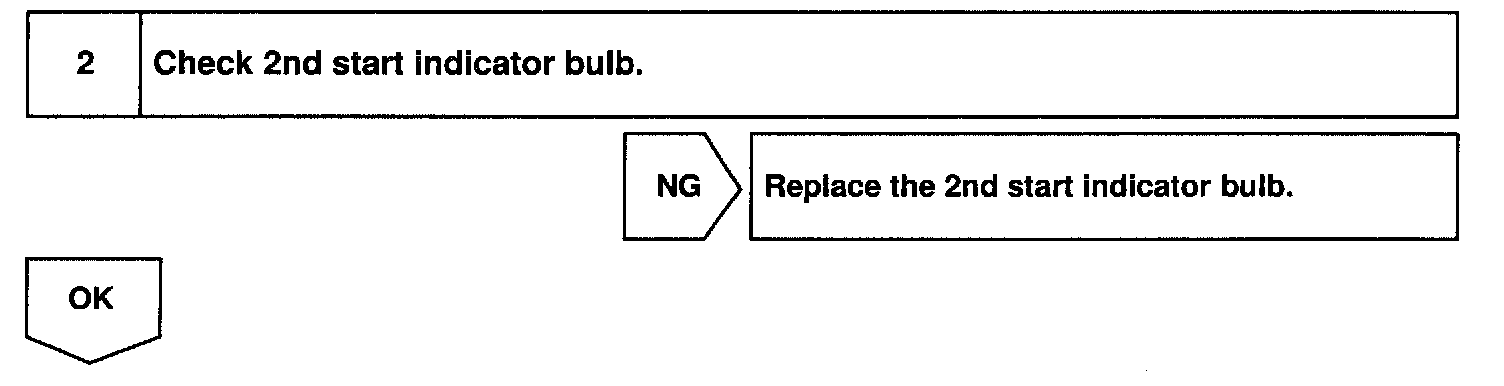

Step 2:

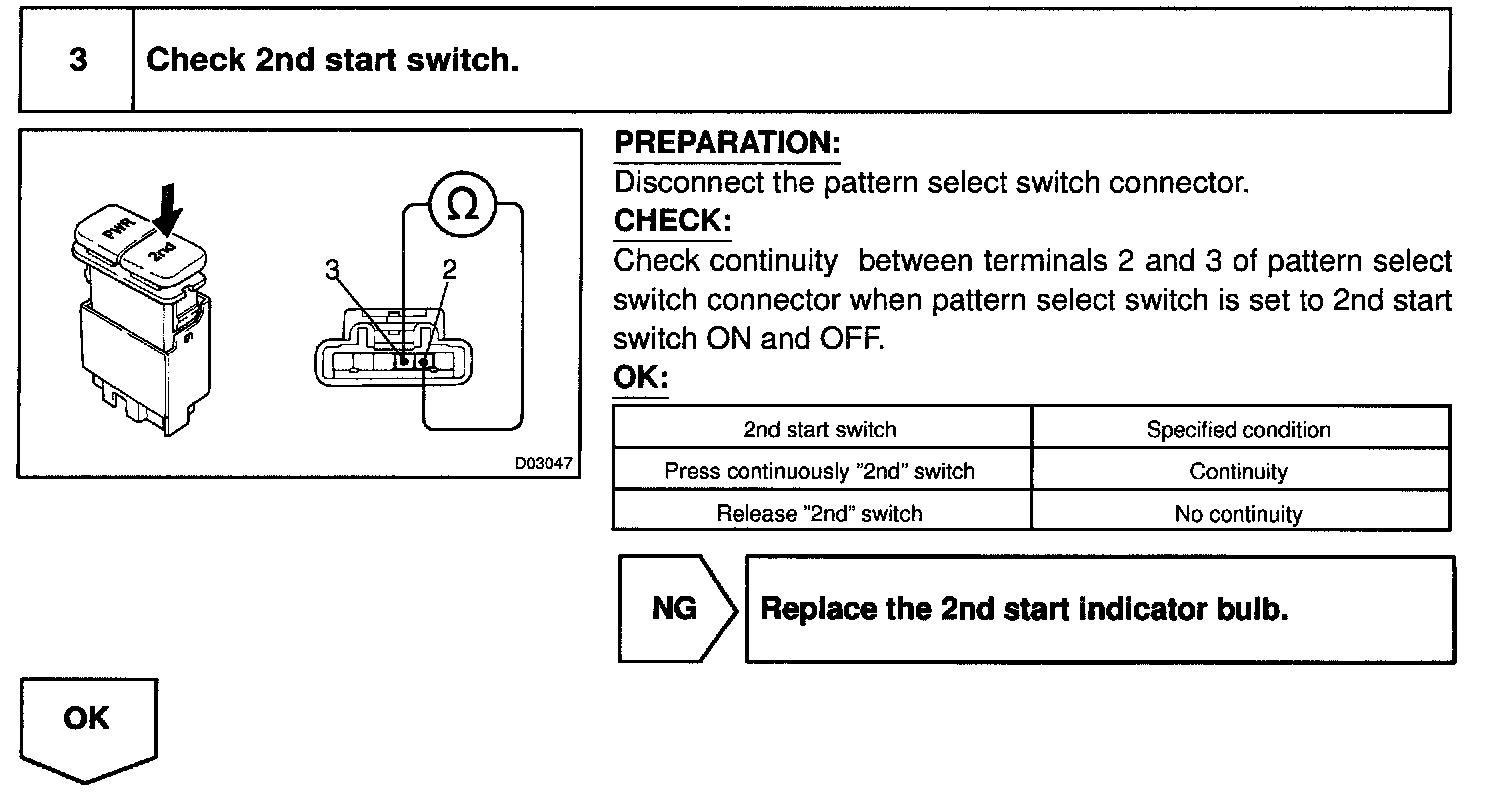

Step 3:

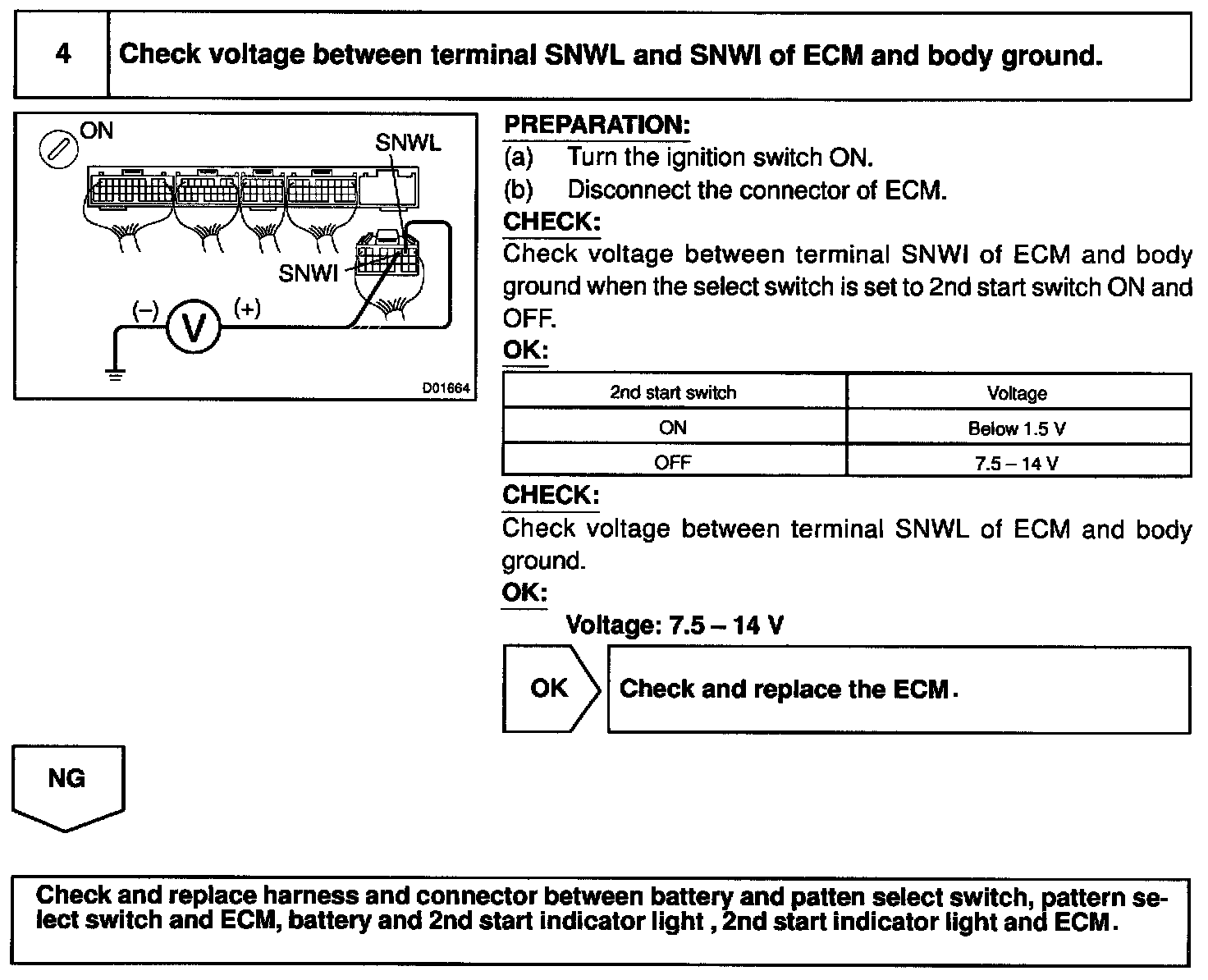

Step 4:

INSPECTION PROCEDURE
