Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2000
>>
Landcruiser V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
Alignment
Measuring Point Reference:

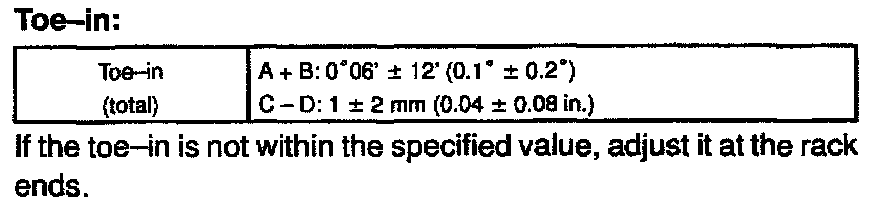

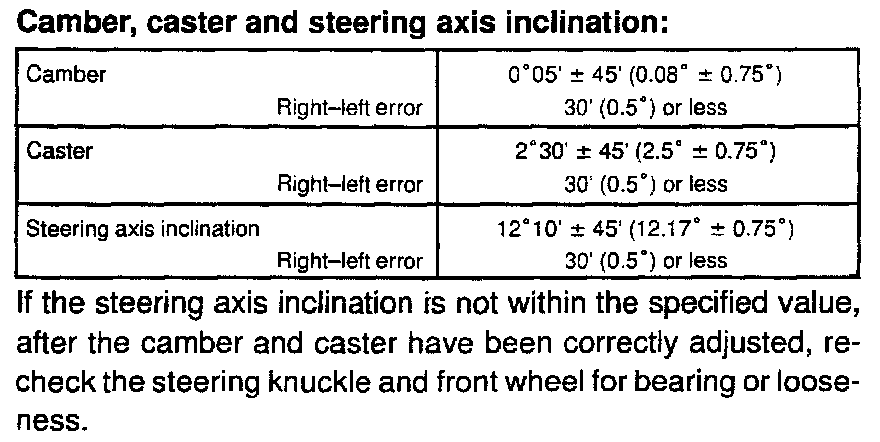

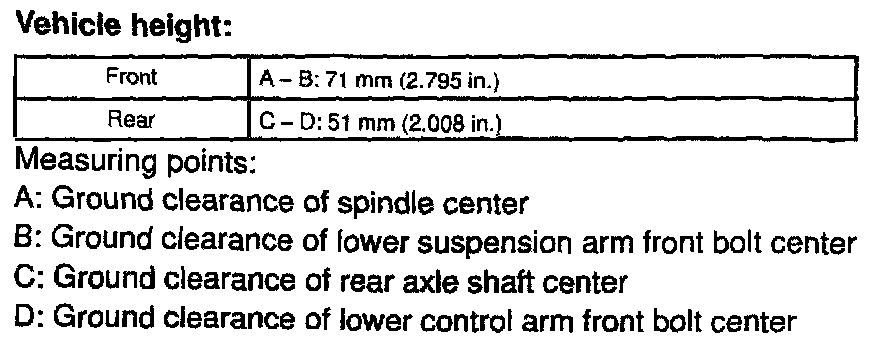

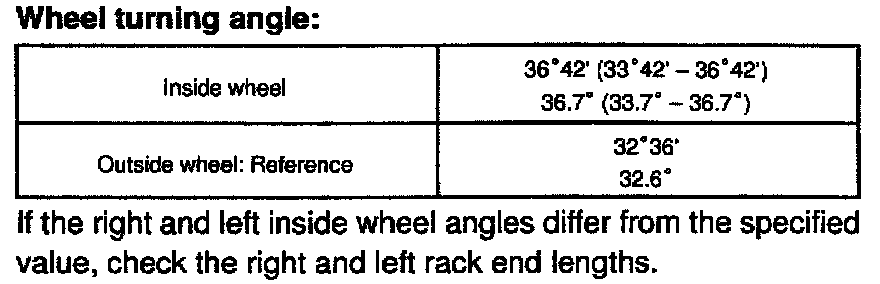

Wheel Alignment
