Body and Frame: Service and Repair

Interior and Exterior Body Clips and Fasteners

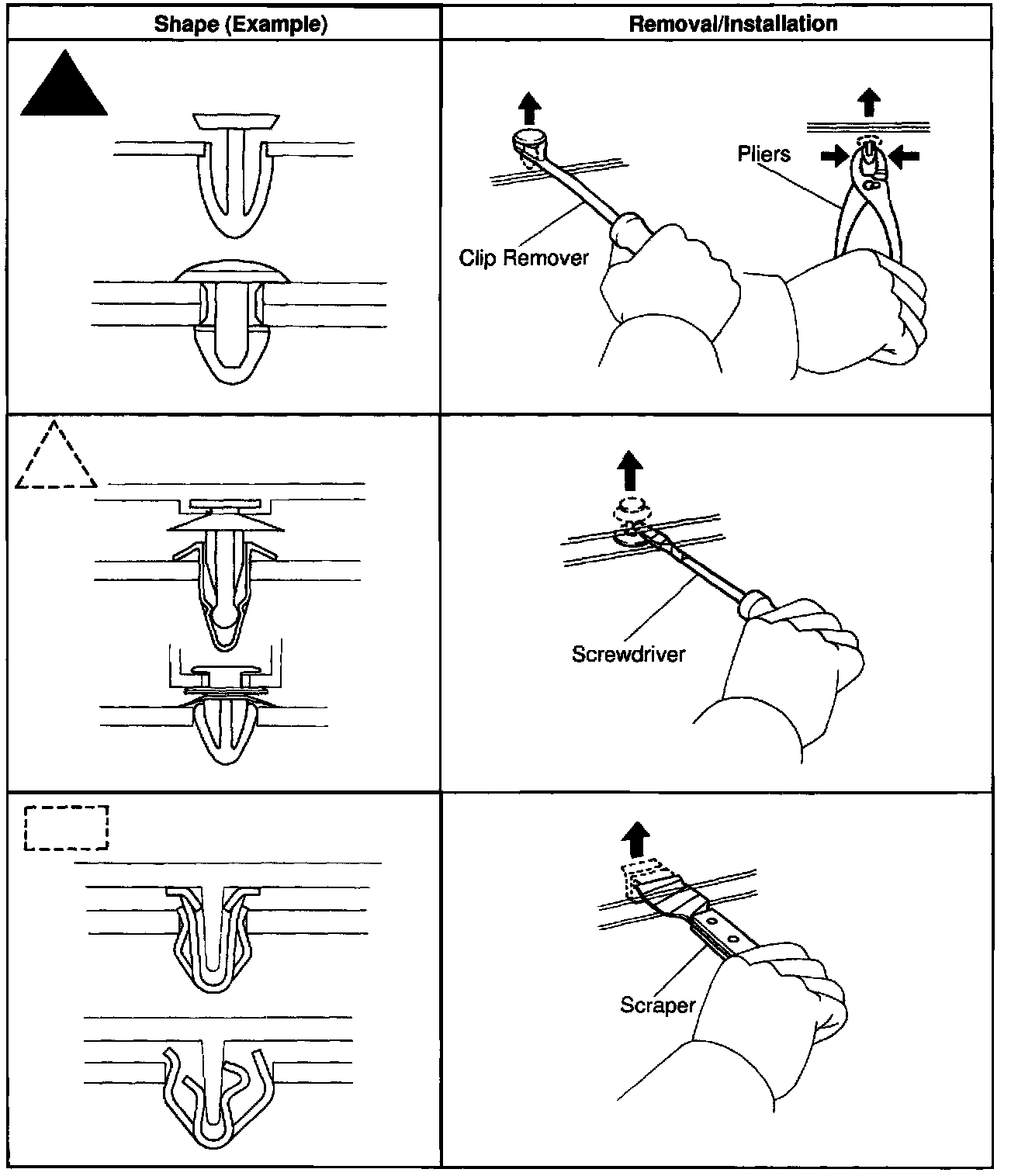

Clip (Part 1):

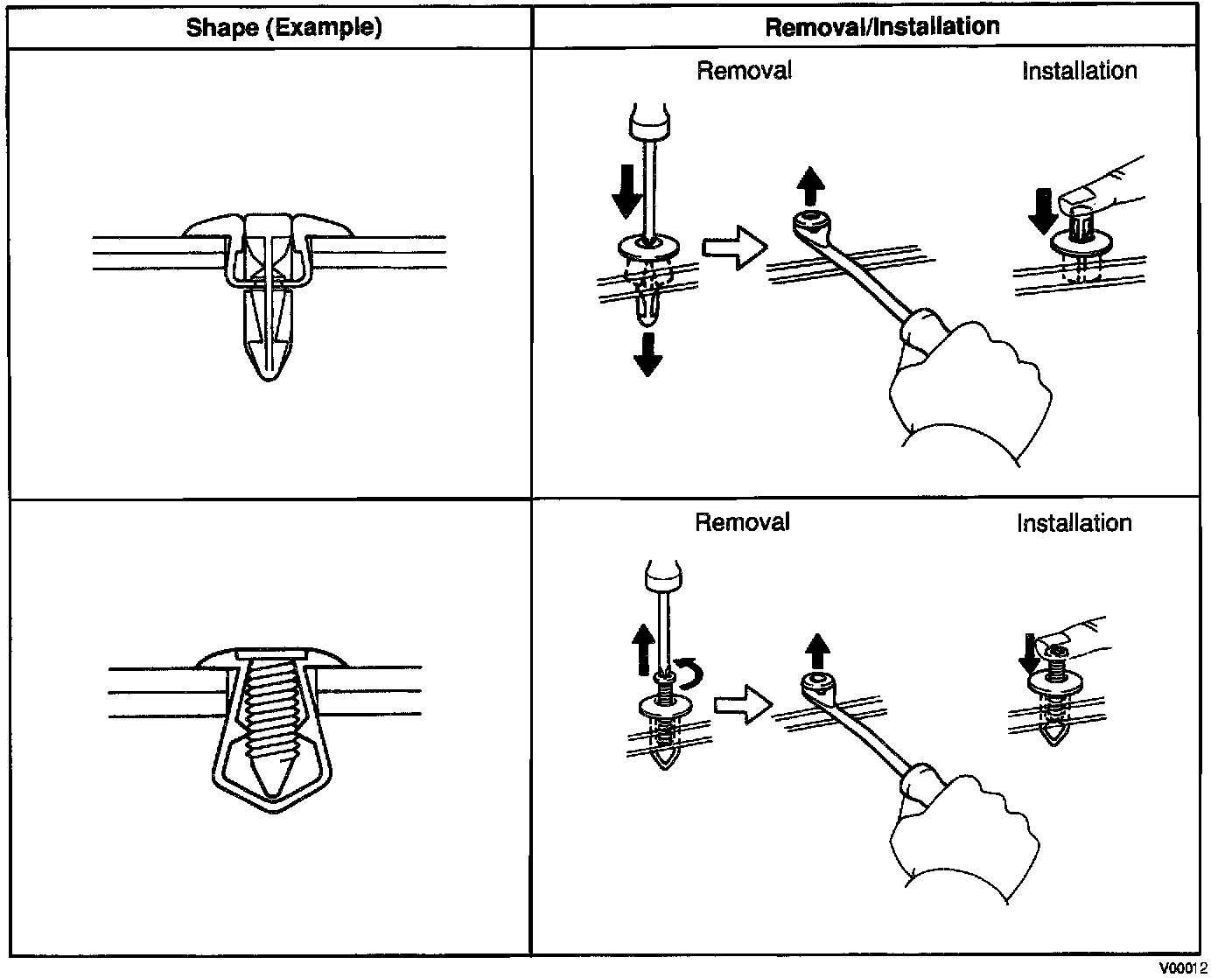

Clip (Part 2):

The removal and installation methods of typical clips used in body parts are shown in the table.

HINT:
- If the clip is damaged during the operation, always replace it with a new clip.
