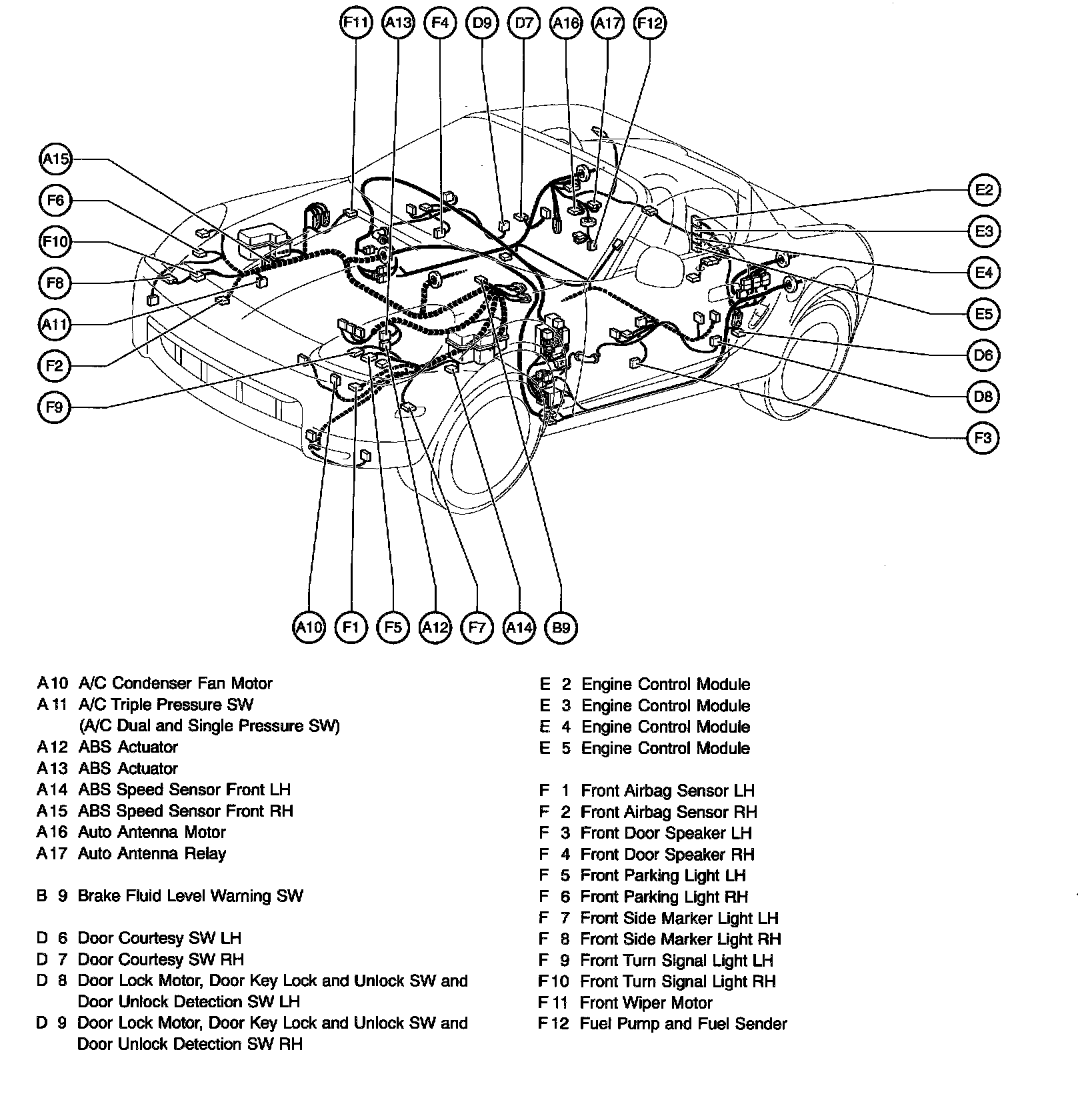

A10 A/C Condenser Fan Motor
A11 A/C Triple Pressure SW (A/C Dual and Single Pressure SW)
A12 ABS Actuator
A13 ABS Actuator
A14 ABS Speed Sensor Front LH
A15 ABS Speed Sensor Front RH
A16 Auto Antenna Motor
A17 Auto Antenna Relay

B 9 Brake Fluid Level Warning SW

D B Door Courtesy SW LH
D 7 Door Courtesy SW RH
D 8 Door Lock Motor, Door Key Lock and Unlock SW and Door Unlock Detection SW LH
D 9 Door Lock Motor, Door Key Lock and Unlock SW and Door Unlock Detection SW RH

E 2 Engine Control Module
E 3 Engine Control Module
E 4 Engine Control Module
E 5 Engine Control Module

F 1 Front Airbag Sensor LH
F 2 Front Airbag Sensor RH
F 3 Front Door Speaker LH
F 4 Front Door Speaker RH
F 5 Front Parking Light LH
F 6 Front Parking Light RH
F 7 Front Side Marker Light LH
F 8 Front Side Marker Light RH
F 9 Front Turn Signal Light LH
F10 Front Turn Signal Light RH
F11 Front Wiper Motor
F12 Fuel Pump and Fuel Sender

H 6 Headlight LH
H 7 Headlight RH
H 8 Horn LH
H 9 Horn RH

I11 Interior Light

J 5 Junction Connector
J 6 Junction Connector

P 6 Power Steering ECU
P 7 Power Steering ECU
P 8 Power Steering ECU
P 9 Power Window Motor LH
P10 Power Window Motor RH
P11 Pretensioner LH
P12 Pretensioner RH

R 8 Radiator Fan Motor
R 9 Rear Window Defogger
R10 Remote Control Mirror LH
R11 Remote Control Mirror RH

S 8 Short Connector (Rear Window Defogger)
S 9 Short Connector (Rear Window Defogger)

T 4 Tension Reducer Solenoid LH
T 5 Tweeter LH
T 6 Tweeter RH

V 3 Vapor Pressure Sensor
V 4 VSV (Pressure Switching Valve)

W 2 Washer Motor
