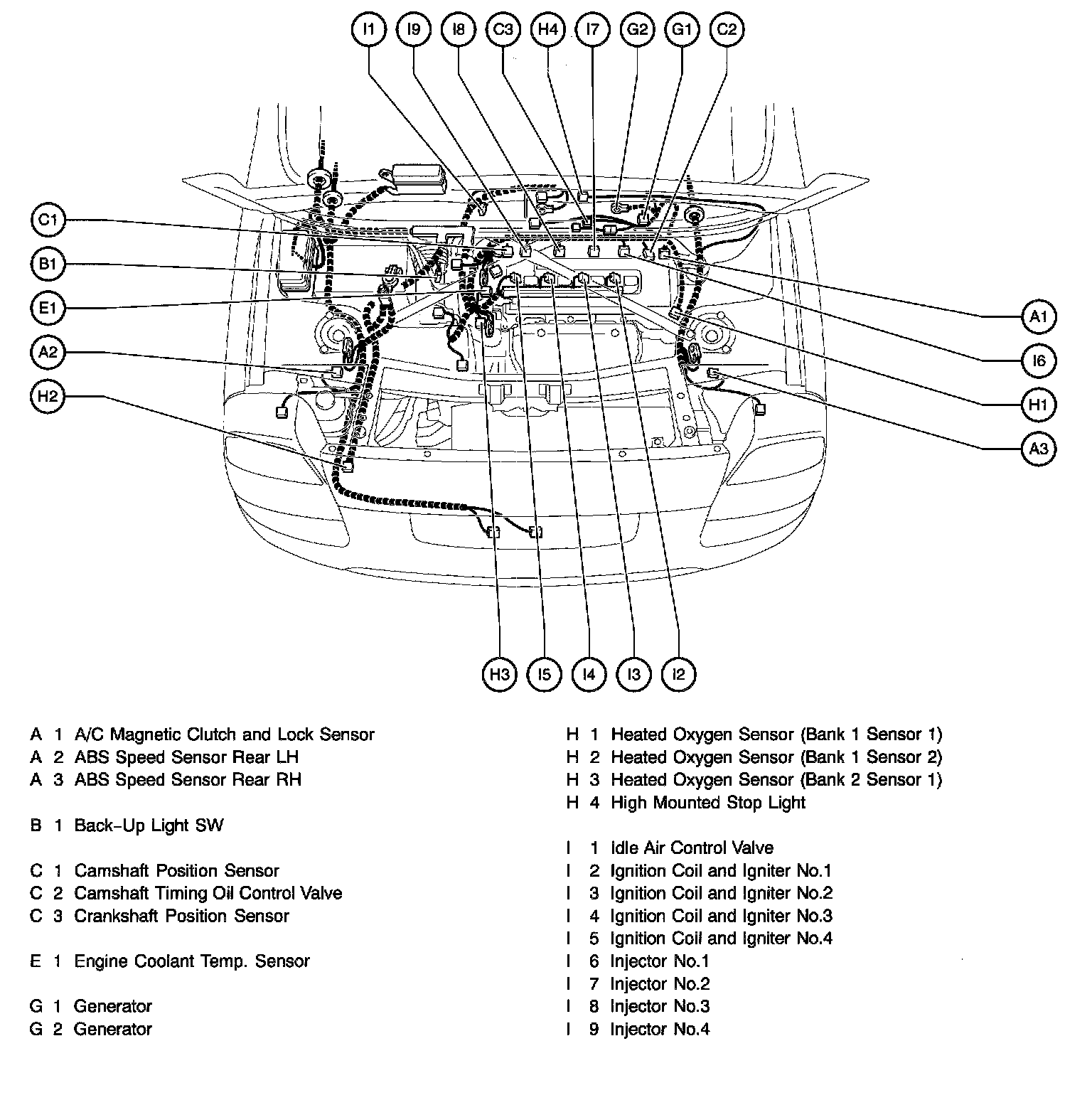

Engine Compartment

A 1 A/C Magnetic Clutch and Lock Sensor
A 2 ABS Speed Sensor Rear LH
A 3 ABS Speed Sensor Rear RH

B 1 Back-Up Light SW

C 1 Camshaft Position Sensor
C 2 Camshaft Timing Oil Control Valve
C 3 Crankshaft Position Sensor

E 1 Engine Coolant Temp. Sensor

G 1 Generator
G 2 Generator

H 1 Heated Oxygen Sensor (Bank 1 Sensor 1)
H 2 Heated Oxygen Sensor (Bank 1 Sensor 2)
H 3 Heated Oxygen Sensor (Bank 2 Sensor 1)
H 4 High Mounted Stop Light

I 1 Idle Air Control Valve
I 2 Ignition Coil and Igniter No.1
I 3 Ignition Coil and Igniter No.2
I 4 Ignition Coil and Igniter No.3
I 5 Ignition Coil and Igniter No.4
I 6 Injector No.1
I 7 Injector No.2
I 8 Injector No.3
I 9 Injector No.4

K 1 Knock Sensor

L 1 License Plate Light LH
L 2 License Plate Light RH

M 1 Mass Air Flow Meter

N 1 Noise Filter (Ignition)

O 1 Oil Pressure SW

R 1 Rear Combination Light LH
R 2 Rear Combination Light RH

S 1 Starter
S 2 Starter

T 1 Throttle Position Sensor

V 1 VSV (Canister Closed Valve)
V 2 VSV (EVAP)
