Clutch Slave Cylinder
Clutch Slave Cylinder

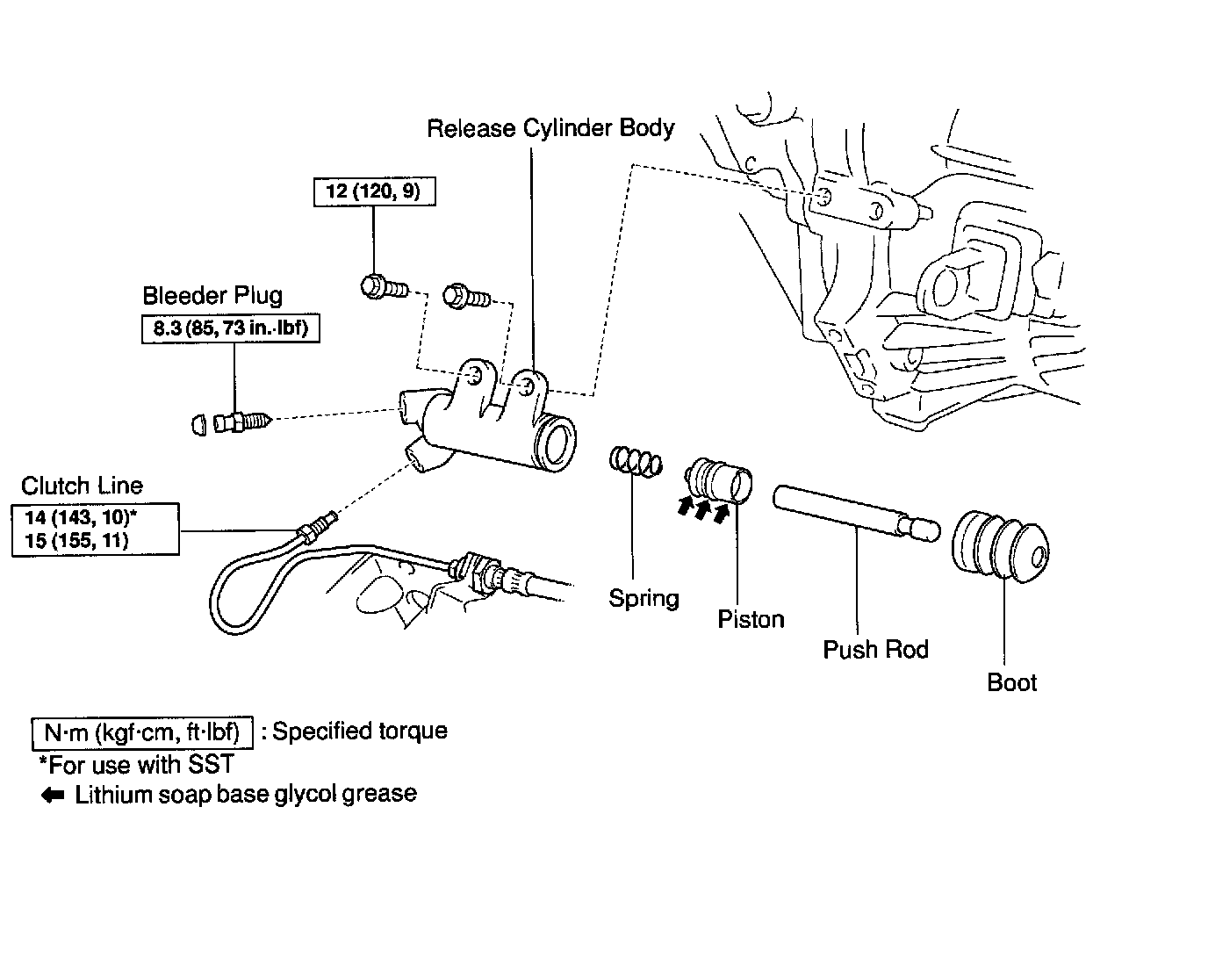

CLUTCH RELEASE CYLINDER
REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
Part 1 of 2
Part 2 of 2
