Body - General Maintenance

INSPECTION
1. TIGHTEN BOLTS AND NUTS ON CHASSIS AND BODY
Tighten these parts:

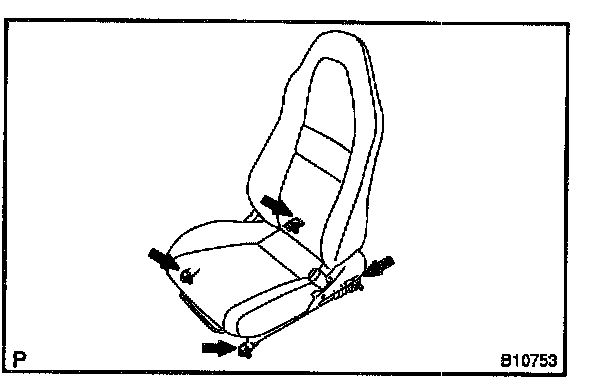

- Seat-to-body mounting bolts
Torque: 37 Nm (375 kg.cm, 27 ft.lb)

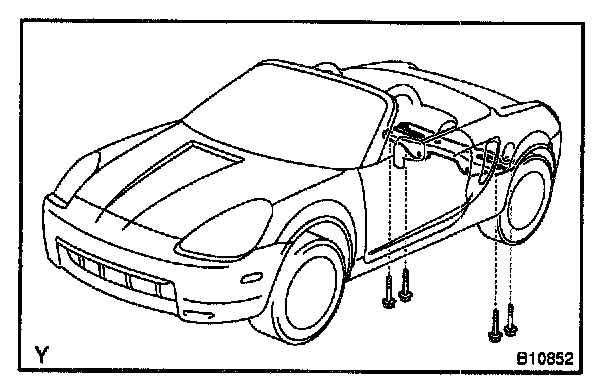

- Rear suspension member-to-body mounting bolts
Torque: 80 Nm (816 kg.cm, 59 ft.lb)

2. BODY INSPECTION
a. Check the body exterior for dents, scratches and rust.
b. Check the underbody for rust and damage.
If necessary, replace or repair.

3. ROAD TEST
a. Check the engine and chassis for abnormal noises.
b. Check that the vehicle does not wander or pull to one side.
c. Check that the brakes work properly and do not drag.
d. Do setting of the parking brake shoes and drum.

4. FINAL INSPECTION
a. Check the operation of the body parts:
- Front hood
Auxiliary catch operates properly Hood locks securely when closed
- Doors
Door locks operate properly Doors close properly
- Engine hood
Door lock operates properly
- Seat adjusts easily and locks securely in any position
Seat back locks securely in any position

b. Be sure to deliver a clean car.
Especially check:
- Steering wheel
- Shift lever knob
- All switch knobs Seats
