Malfunction Indicator Lamp: Testing and Inspection

MIL Circuit Malfunction

CIRCUIT DESCRIPTION
If the ECM detects trouble, the MIL lights up. At this time, the ECM records a DTC in memory.

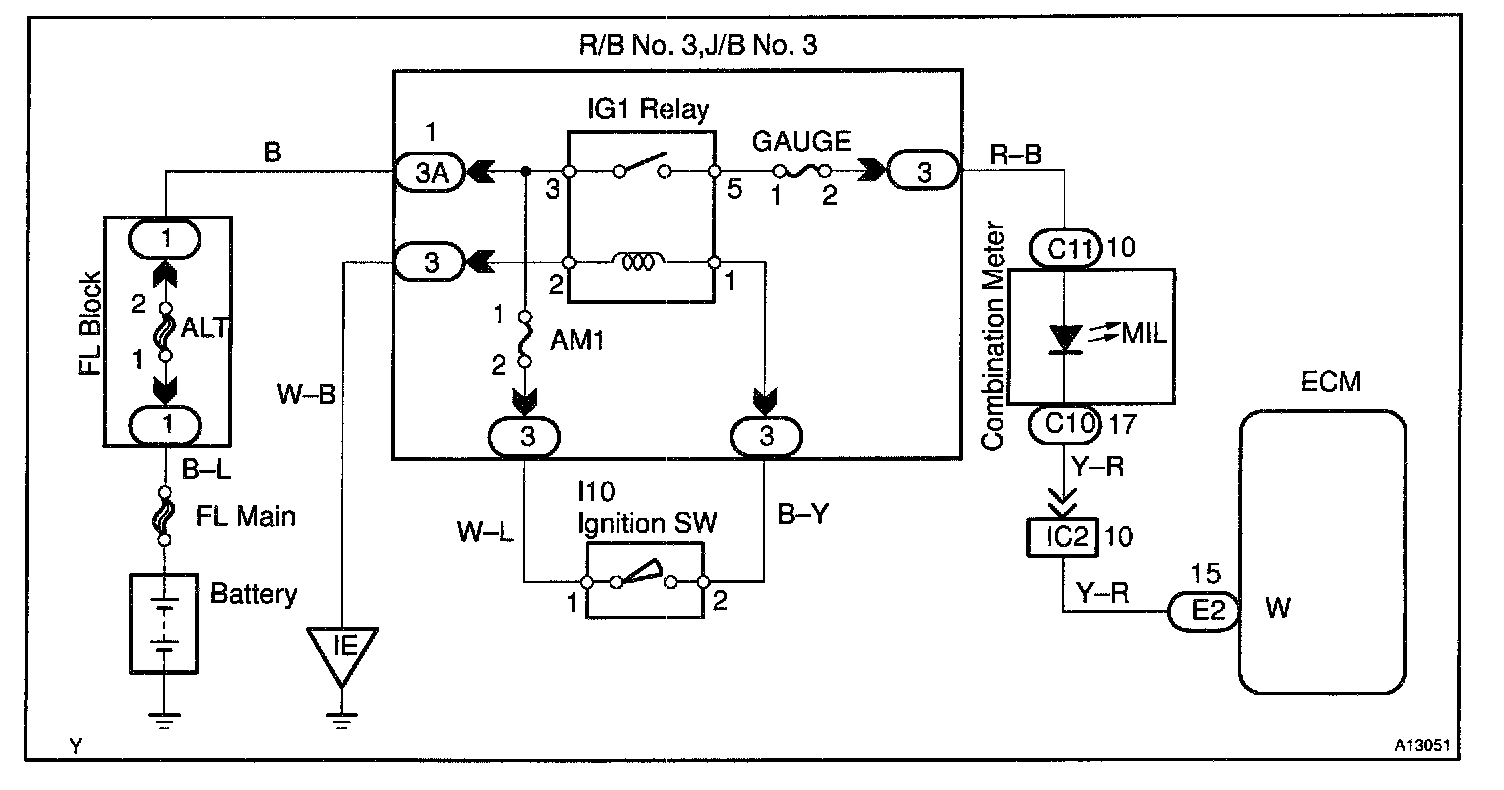

WIRING DIAGRAM

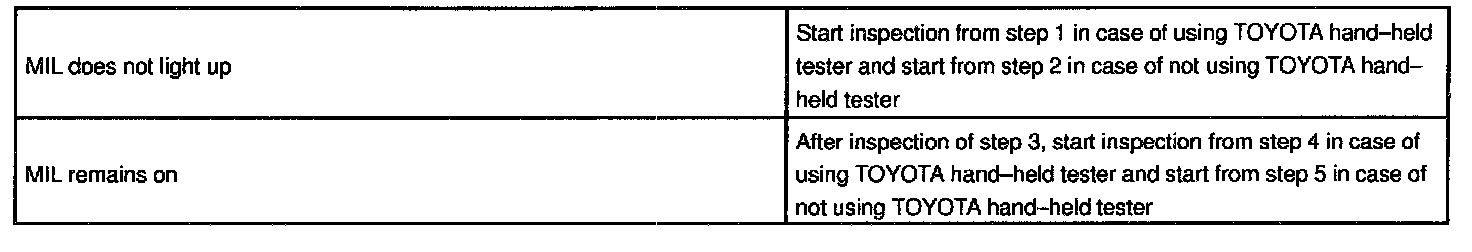

HINT: Troubleshoot in accordance with the chart for each trouble symptom.

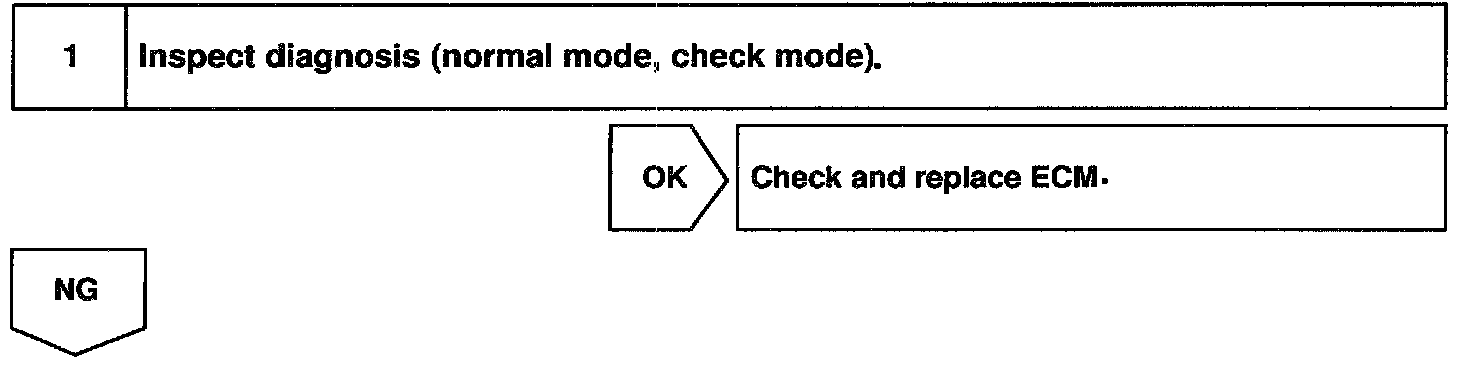

Step 1:

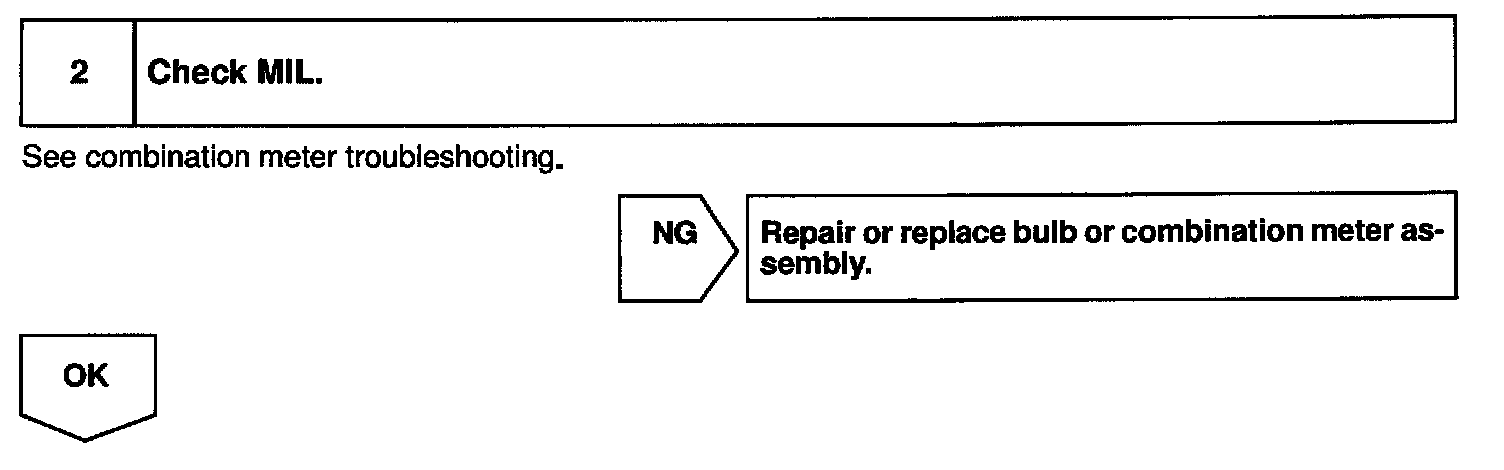

Step 2:

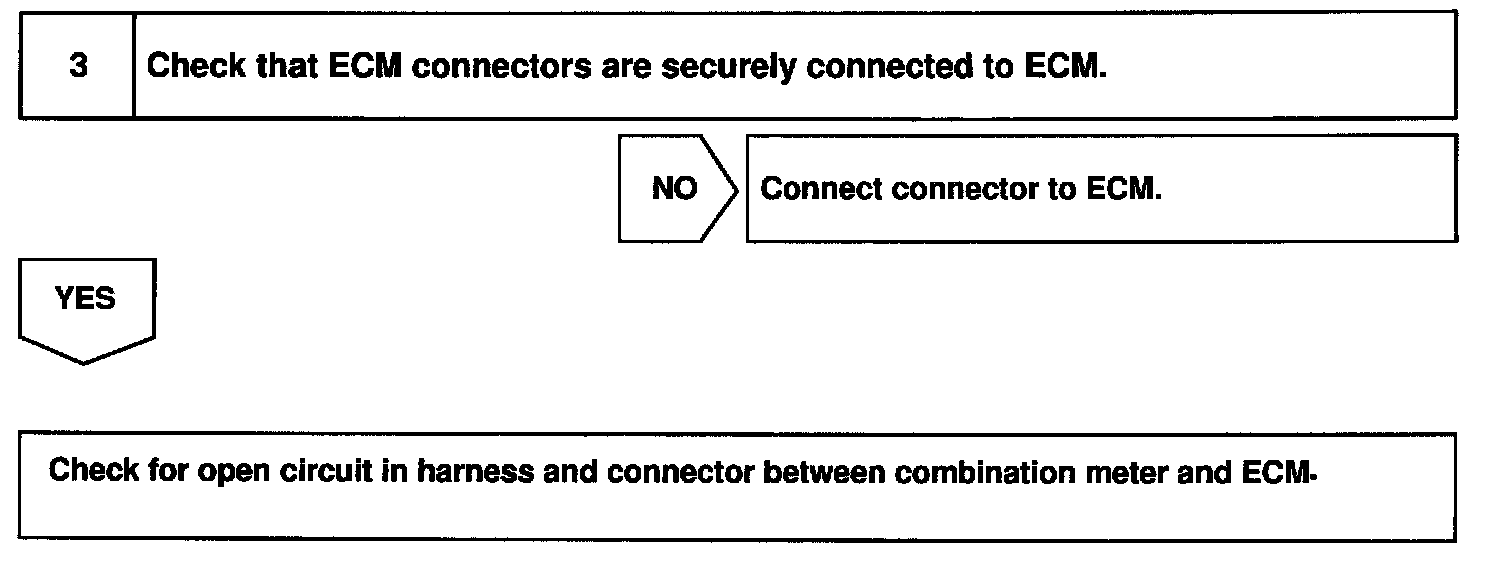

Step 3:

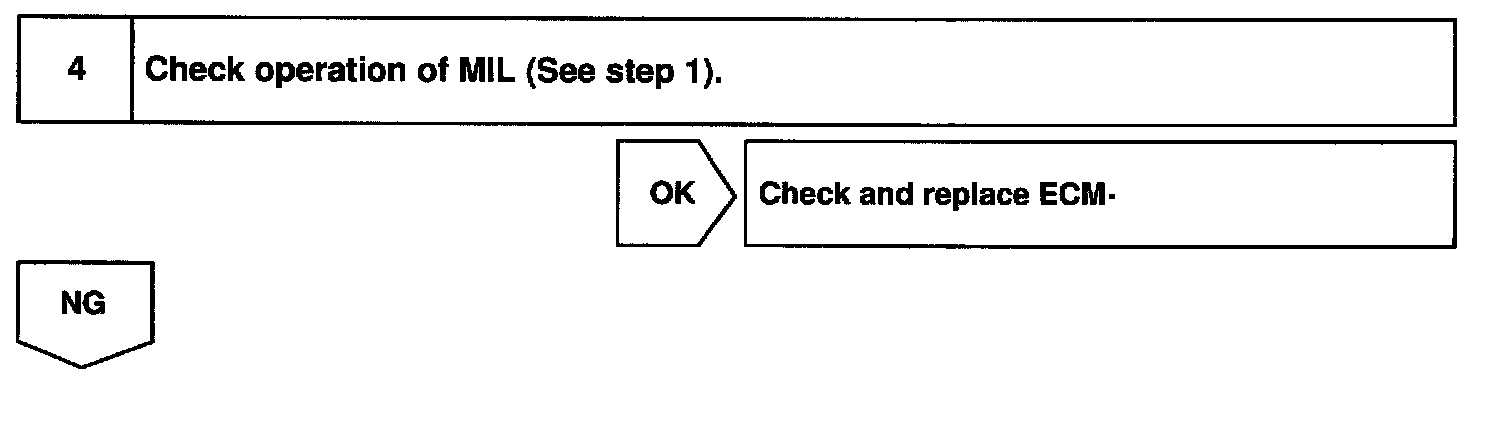

Step 4:

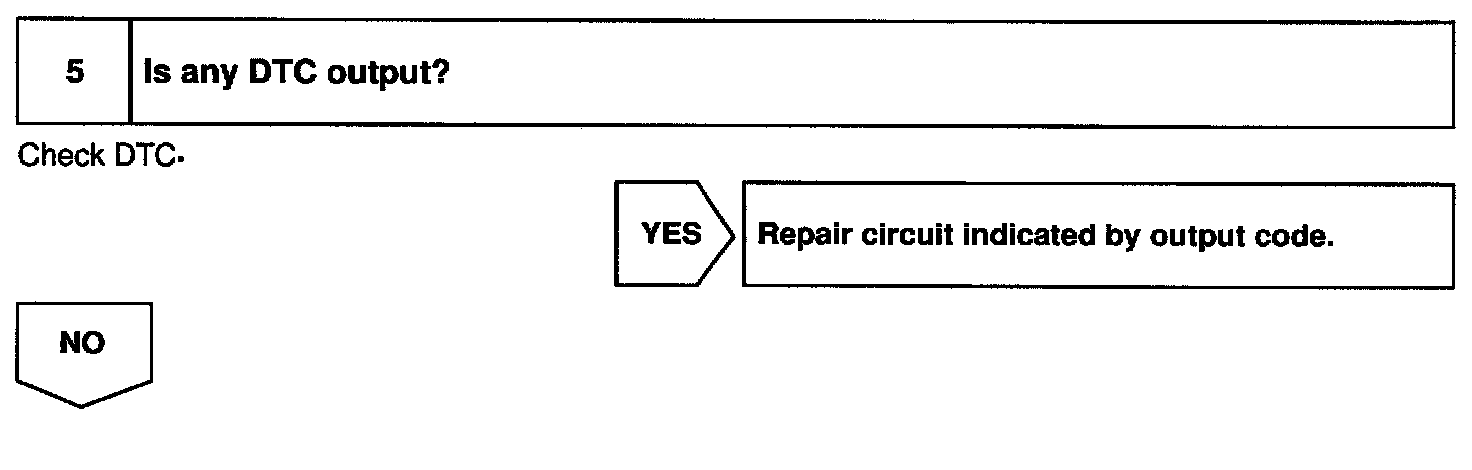

Step 5:

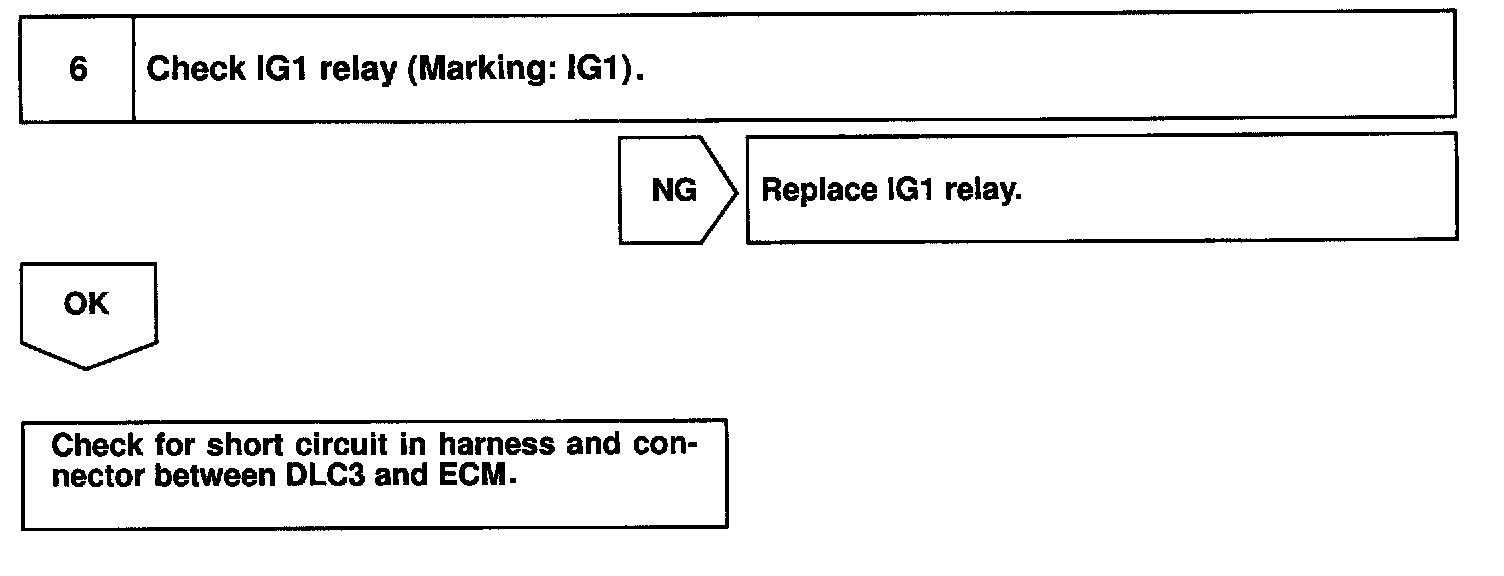

Step 6:

INSPECTION PROCEDURE
