A/C Compressor Circuit
CIRCUIT DESCRIPTIONThis sensor sends 1 pulse par engine revolution to the ECM. If the number ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the ECM turns the compressor off. And, the indicator flashes at about
1 second interval.

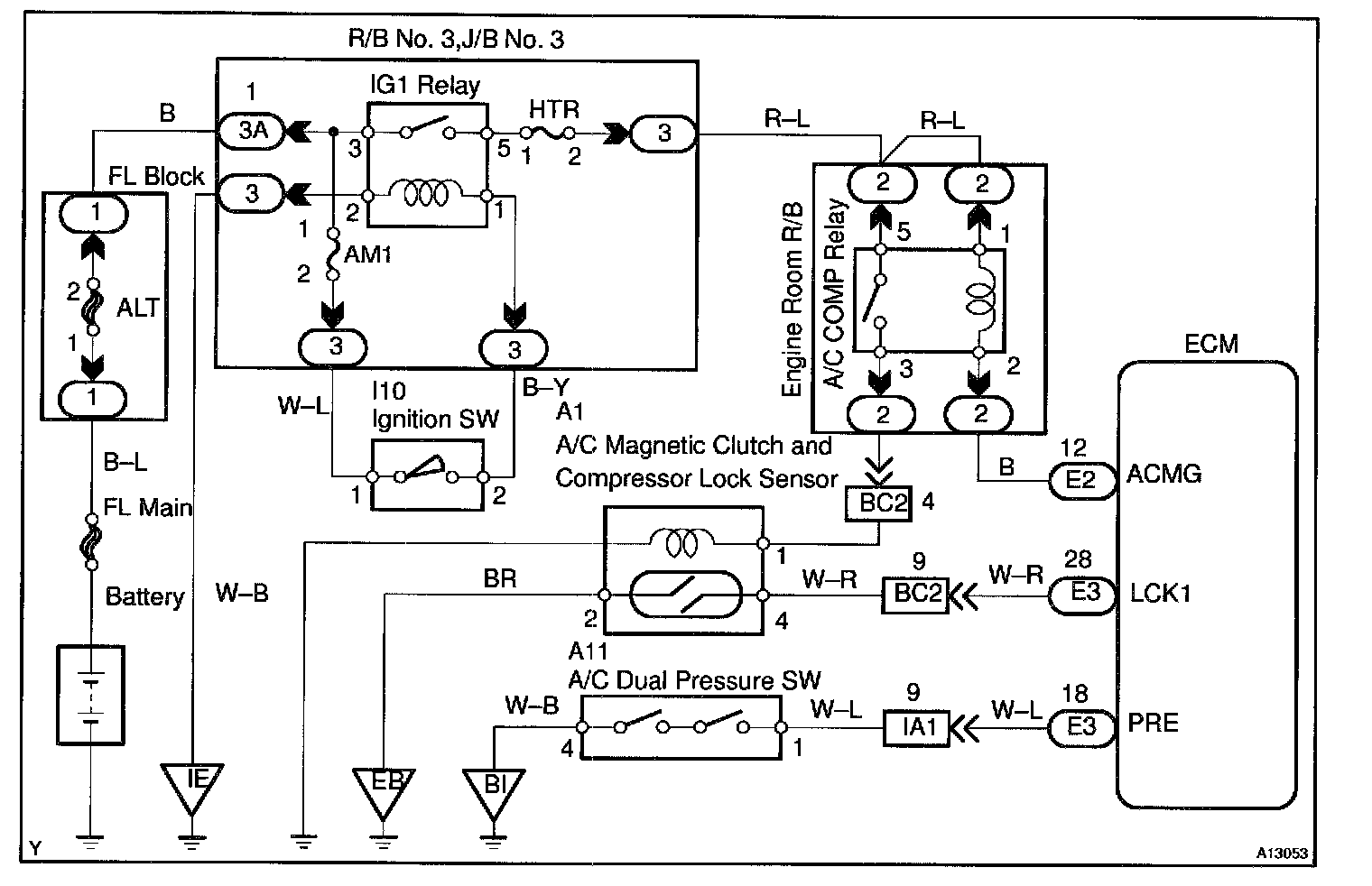

WIRING DIAGRAMStep 1:
Step 2:
Step 3:
Step 4:

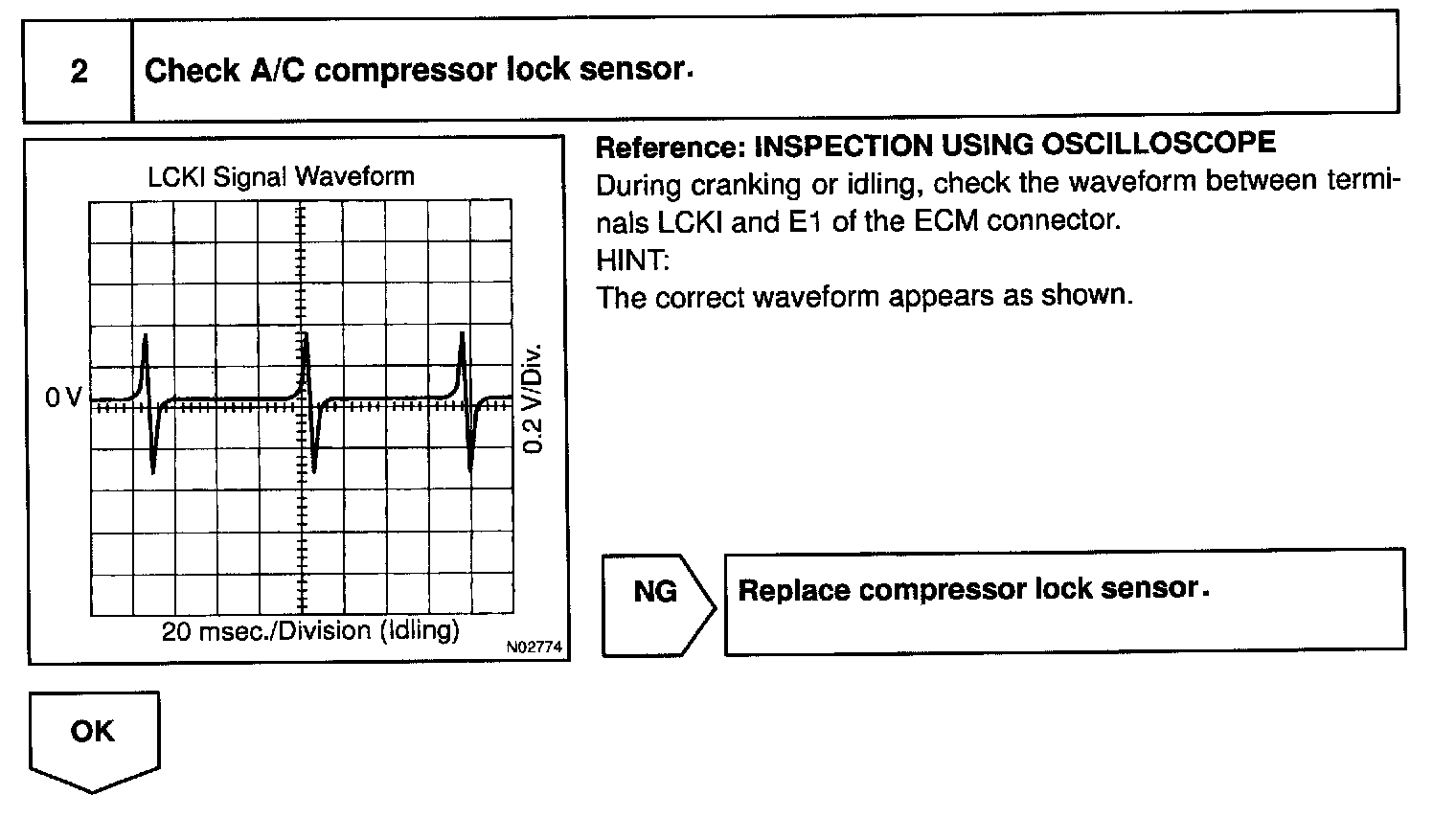

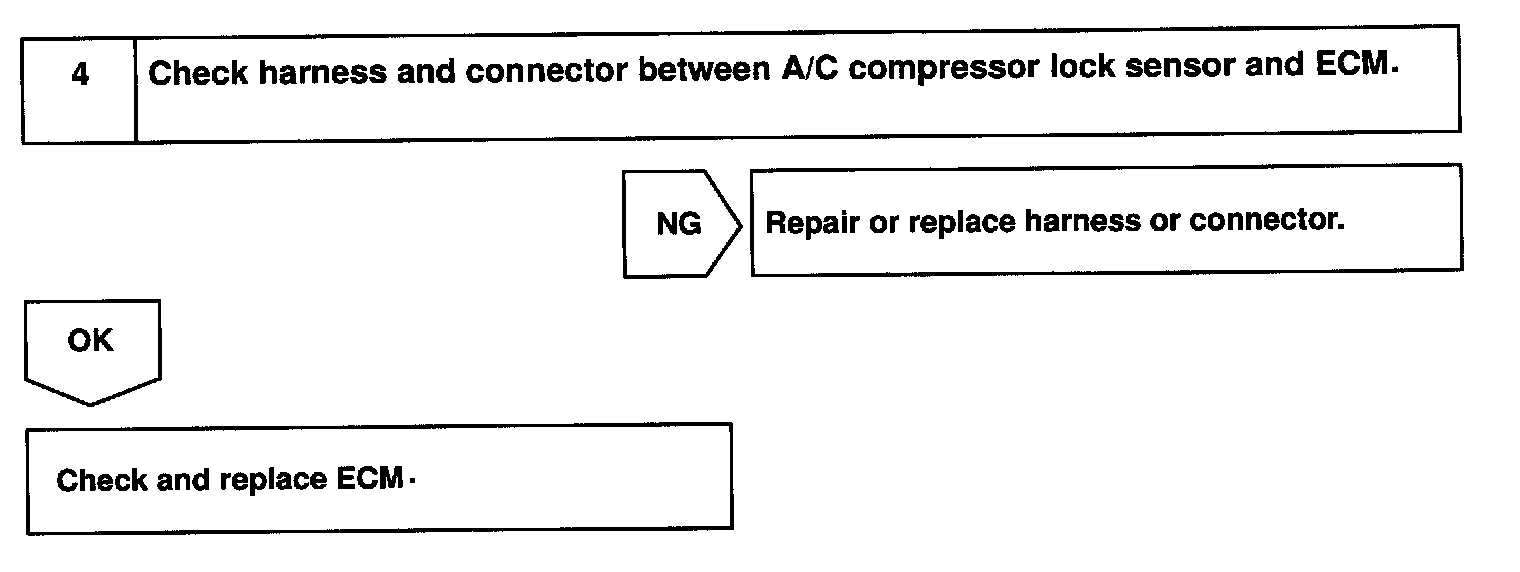

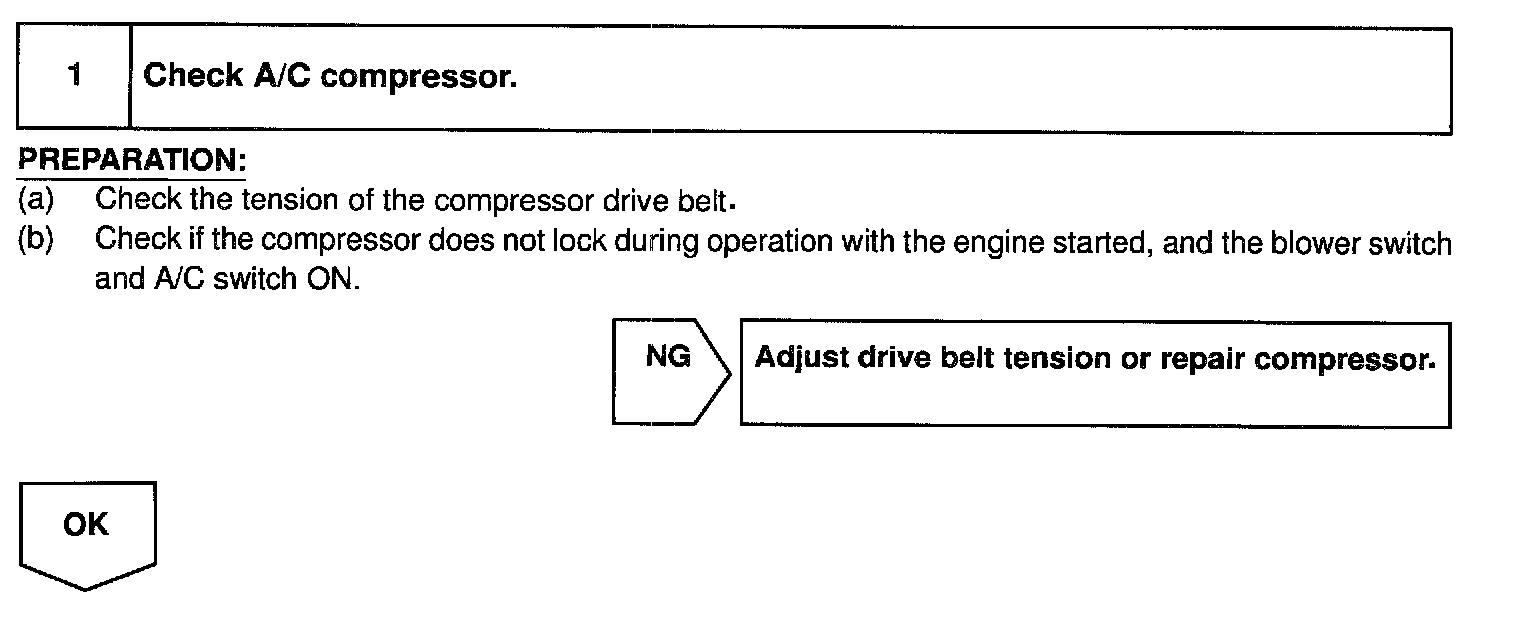

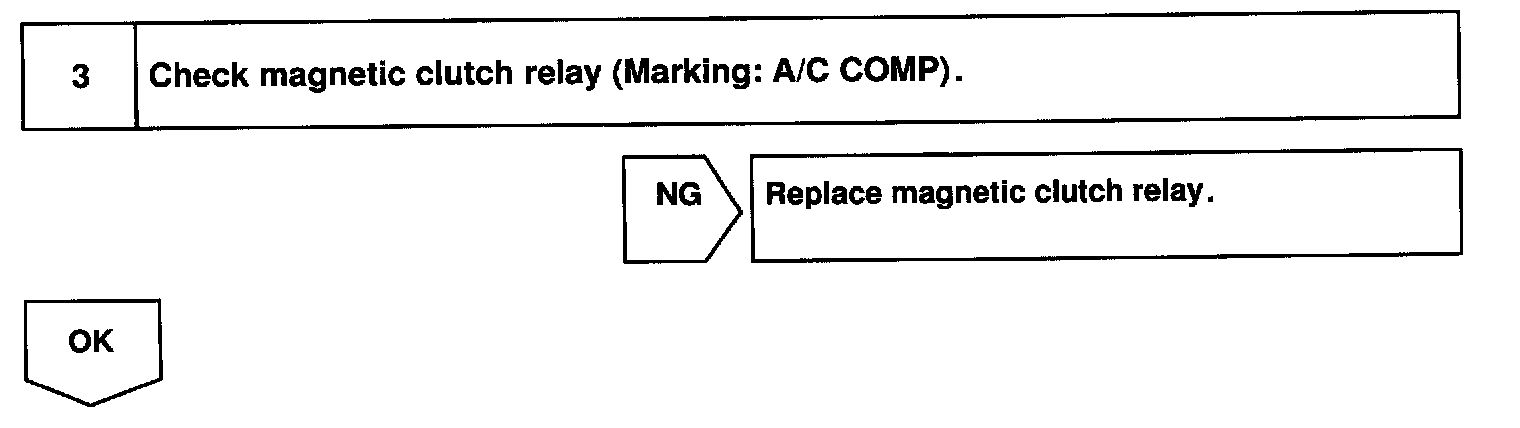

INSPECTION PROCEDURE
