Stop Light Switch Circuit
CIRCUIT DESCRIPTIONThe purpose of this circuit is to prevent the engine from stalling, when brakes are suddenly applied. When the brake pedal is depressed, this switch sends a signal to the ECM.

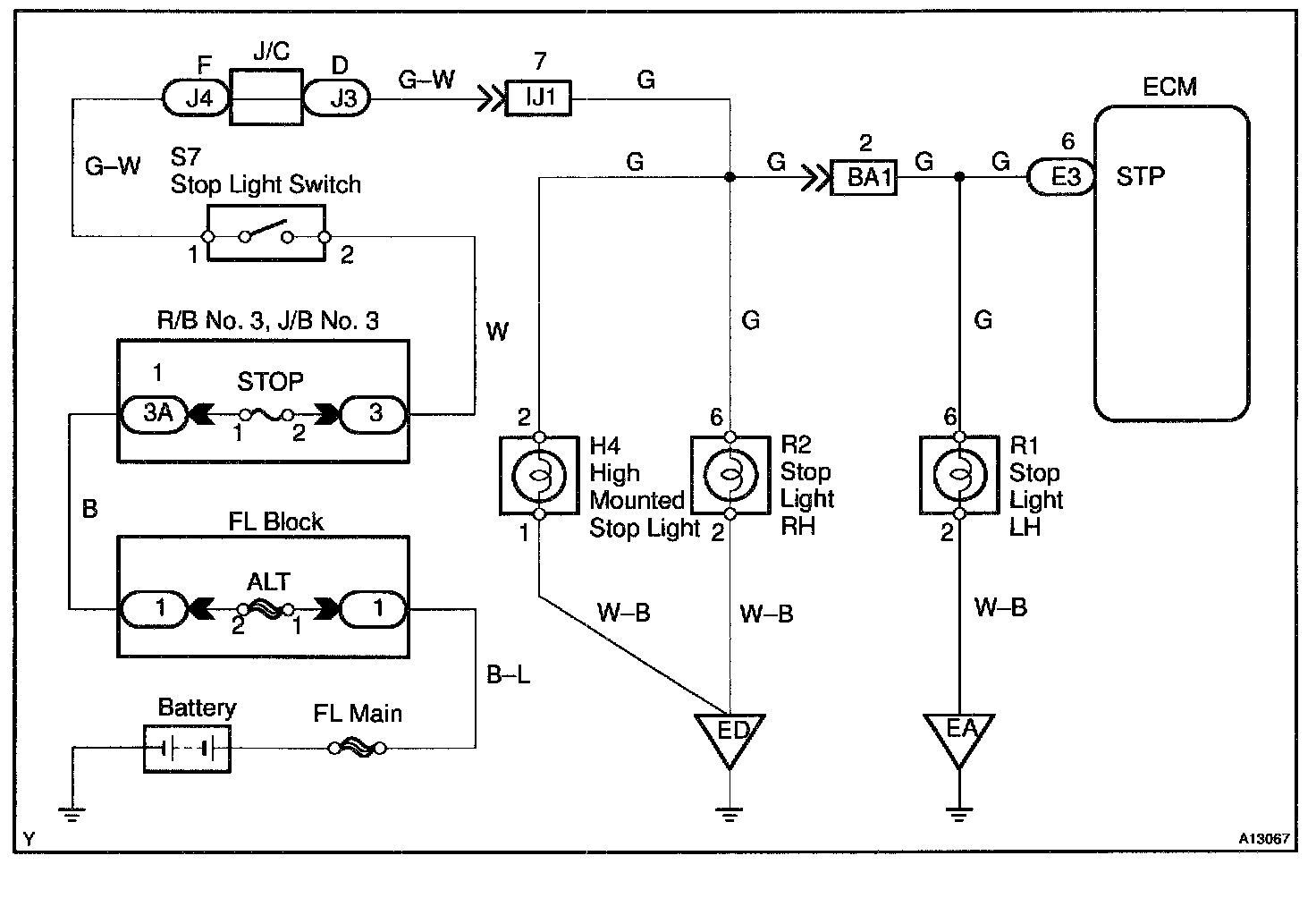

WIRING DIAGRAMStep 1:
Step 2:
Step 3:
INSPECTION PROCEDURE
