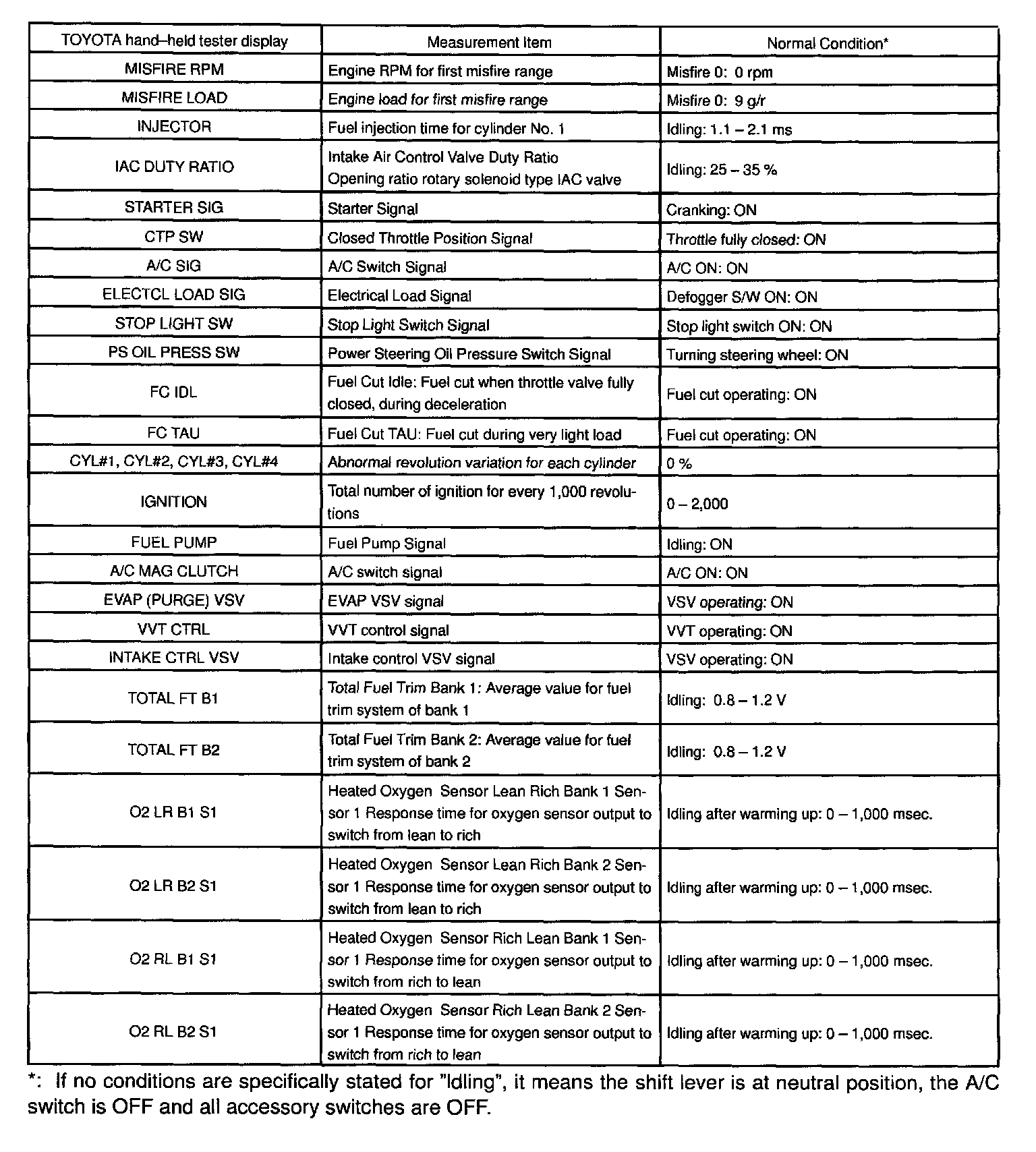

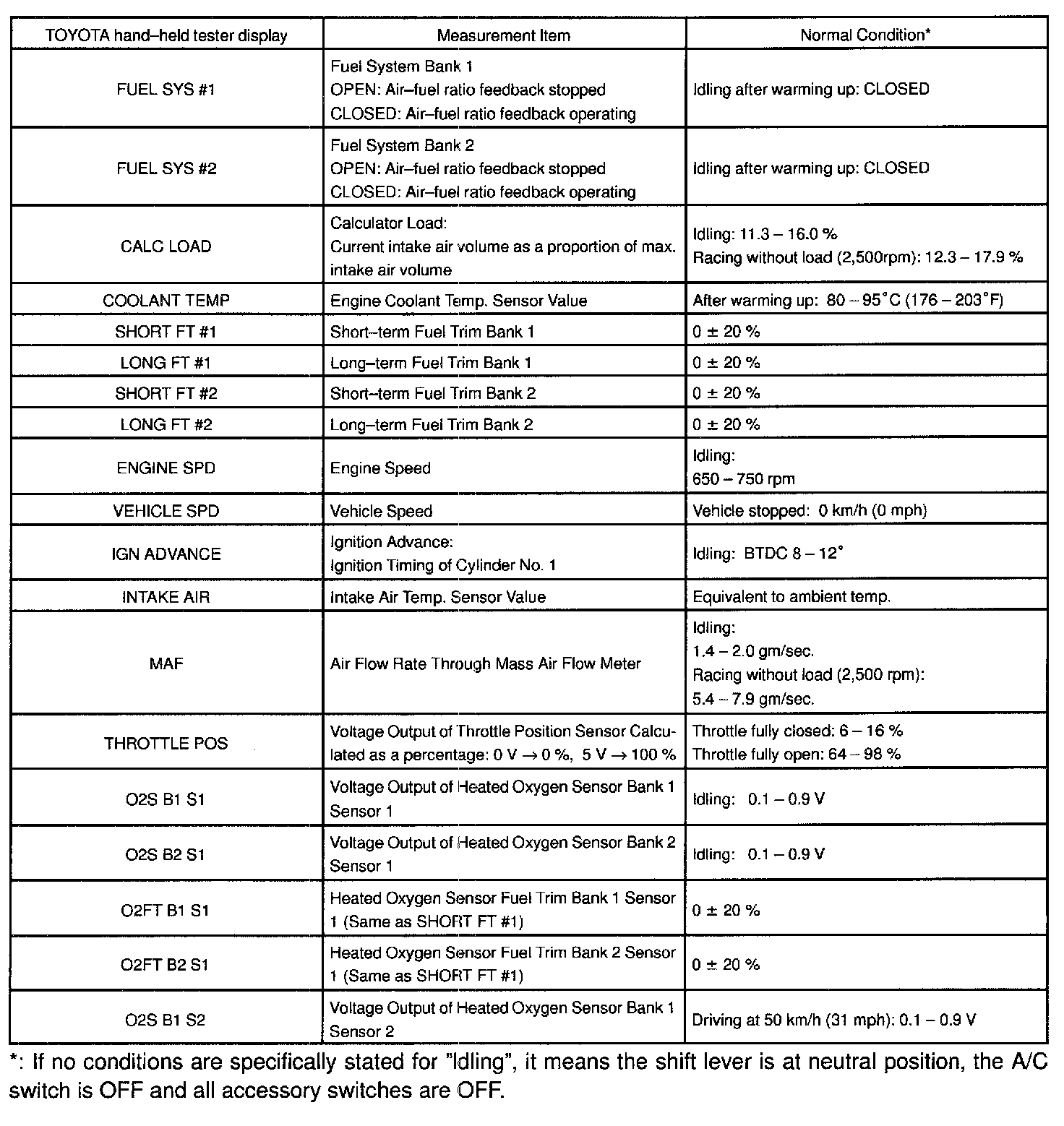

Normal Scan Data Values
NOTE: The values given for "Normal Condition" are representative values, so a vehicle may still be normal even if its value varies from those listed here. So do not decide whether a part is faulty or not solely according to the "Normal Condition" here.
a.
CARB mandated signals.
b.
TOYOTA Enhanced Signals.
