Symptom Related Diagnostic Procedures
Part 1 Of 2:
Part 2 Of 2:

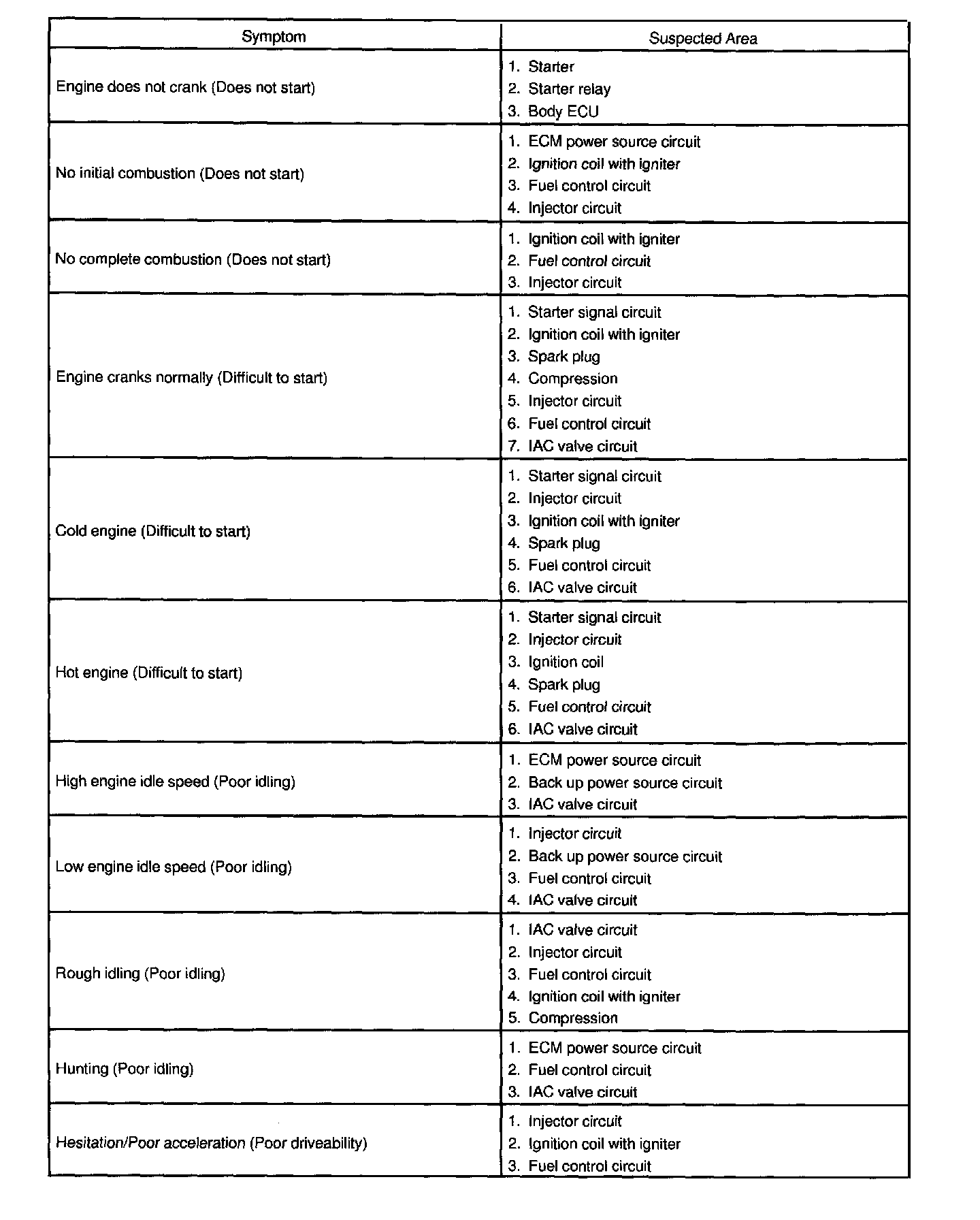

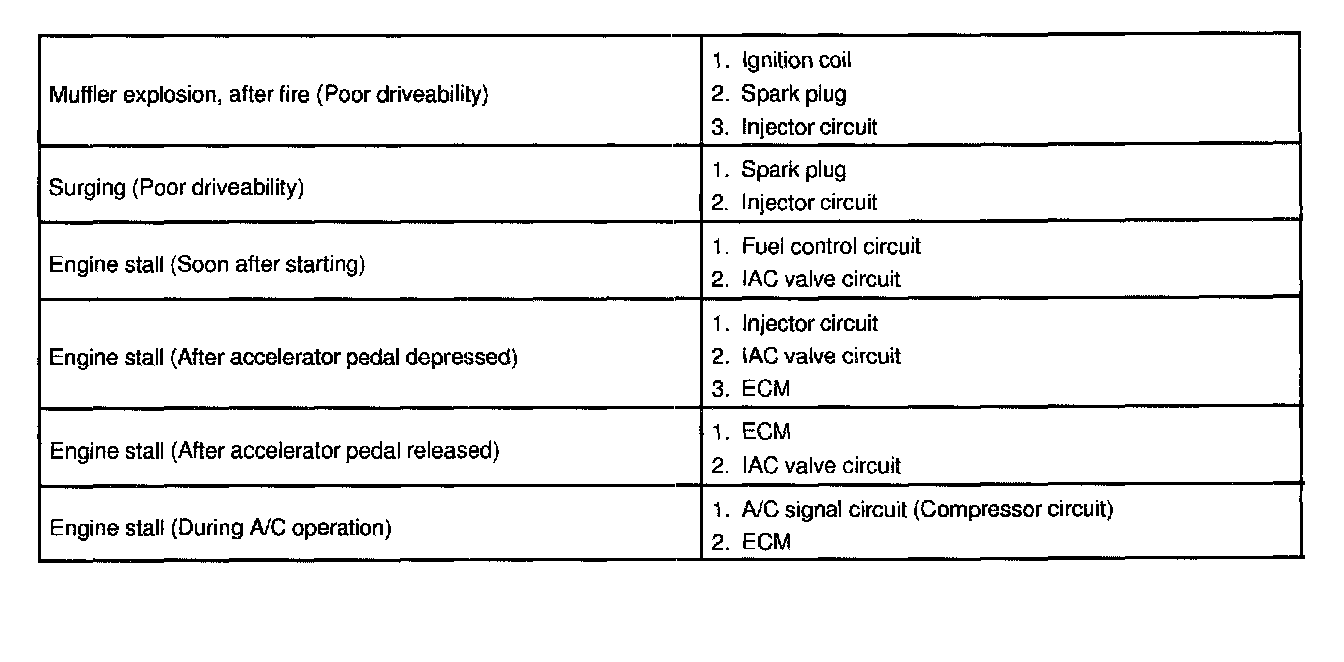

When the malfunction is not confirmed in the diagnostic trouble code check and the problem still can not be confirmed in the basic inspection, proceed to this problem symptoms table and troubleshoot according to the numbered order given.
