Front

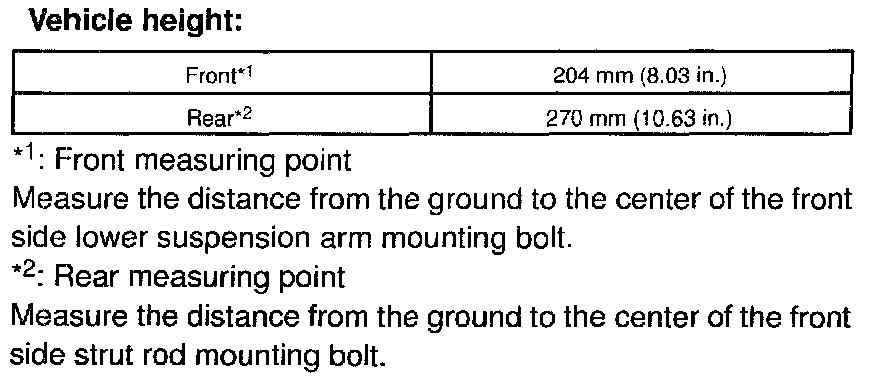

Measure Vehicle Height

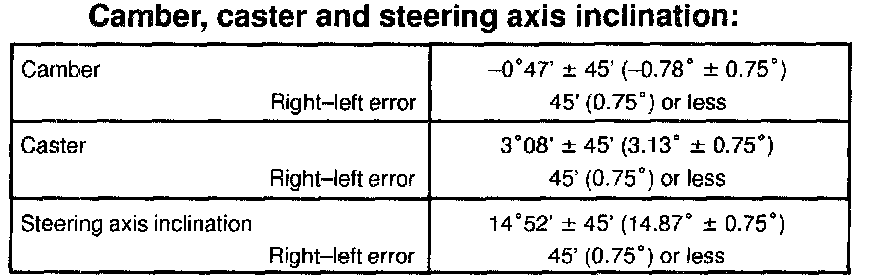

Inspect Camber, Caster and Steering Axis Inclination

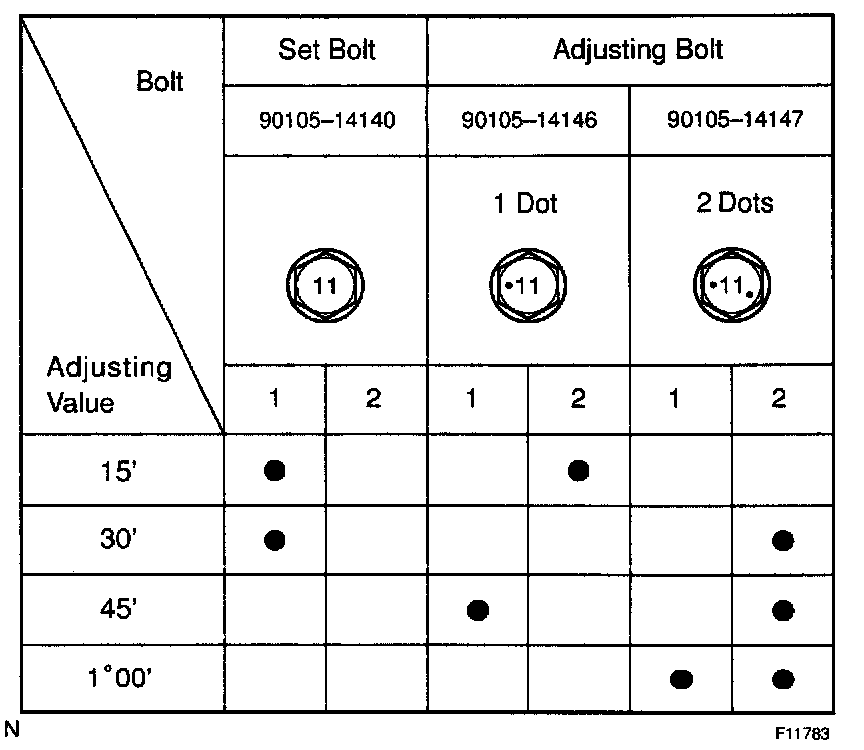

Adjust Camber





Inspect Toe-in

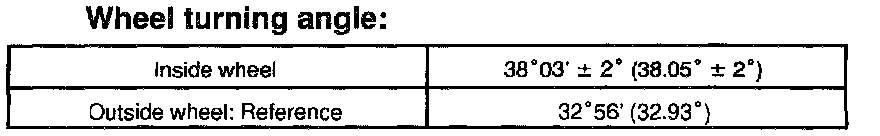

Inspect Wheel Angle
