Cylinder Block
Tightening Torque

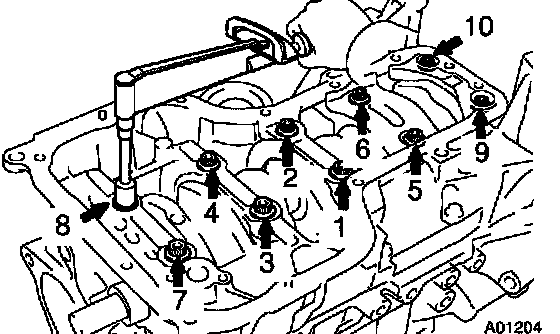

Main Bearing Cap Bolts - Pointed Head
First Step
22 Nm
Second Step
44 Nm
Third Step
45 degrees
Final Step
45 degrees
Main Bearing Cap Bolts - Hexagon Head
18.5 Nm
Connecting Rod Bolts
First Step
20 Nm
Second Step
90 degrees
