Water Pump Torque
Water Pump Torque

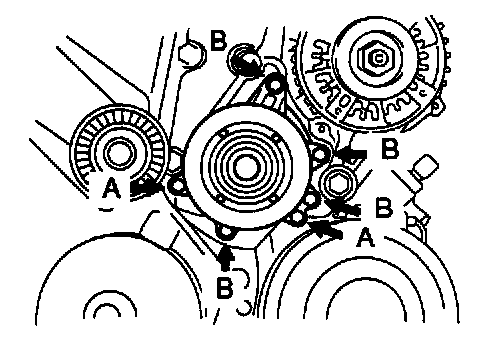

Water Pump W/ Bolts Torque
Bolt A (30 mm)
9 Nm (80 in.lb)
Bolt B (35 mm)
11 Nm (8 ft.lb)
