Flywheel
Flywheel Install the
flywheel on the crankshaft.
Install and uniformly tighten the 8 bolts in several passes, in the sequence shown.
Torque
49 Nm (500 kgf-cm, 36 ft. lbs.)
If any one of the bolts does not meet the torque specification, replace the bolt.

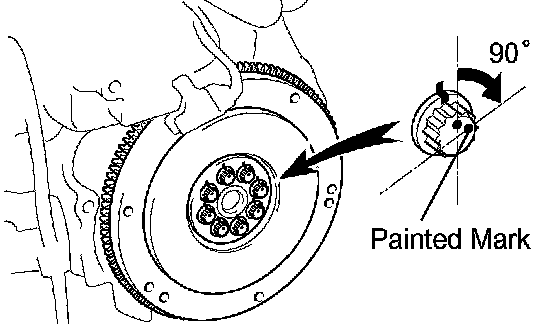

Mark the
flywheel bolt with paint.
Retighten the flywheel bolts by an additional 90°.
