Cruise Control - Improved Switch

ELECTRICAL
ELO12-00

October 20, 2000

Title:
IMPROVED CRUISE CONTROL SWITCH

Models:
'97- '00 RAV4

Introduction
A change has been made to the Cruise Control Main Switch applicable to 1997 through 2000 model year RAV4 vehicles. A screw has been installed on the back of the switch to increase switch casing durability.

Applicable Vehicles
^ 1997 -2000 model year RAV4 vehicles.

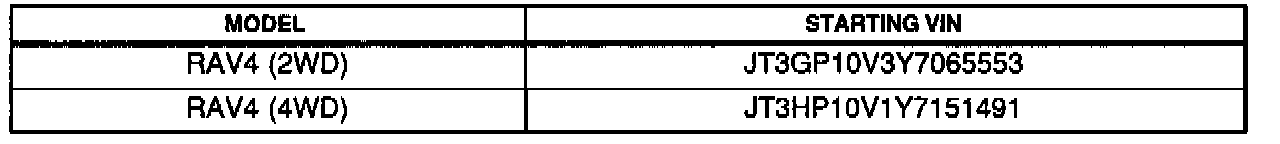

Production Change Information

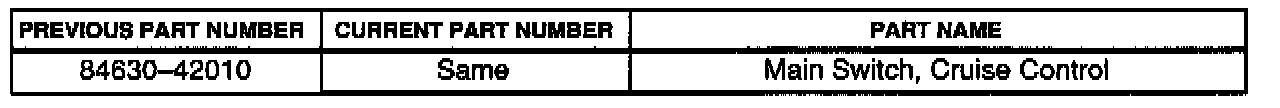

Parts Information

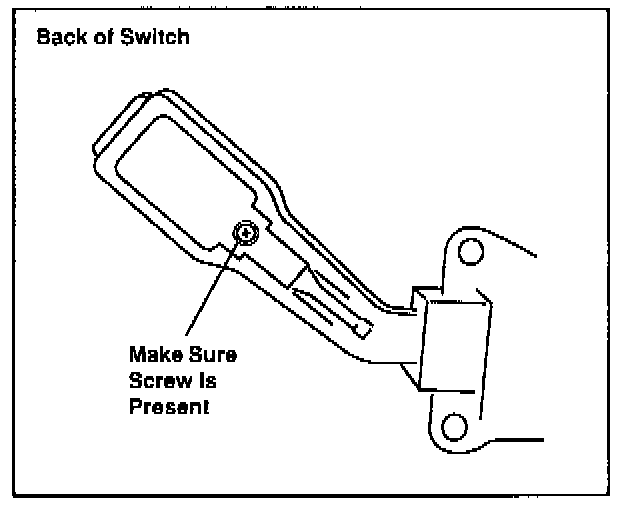

Inspection Procedure

When replacing the Cruise Control Main Switch verify that the new part is equipped with a screw on the back of the switch. The screw can be seen from outside the part.

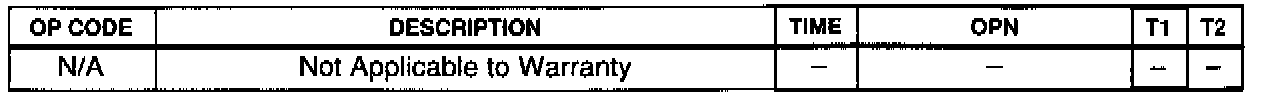

Warranty Information
