Fuse Block: Locations

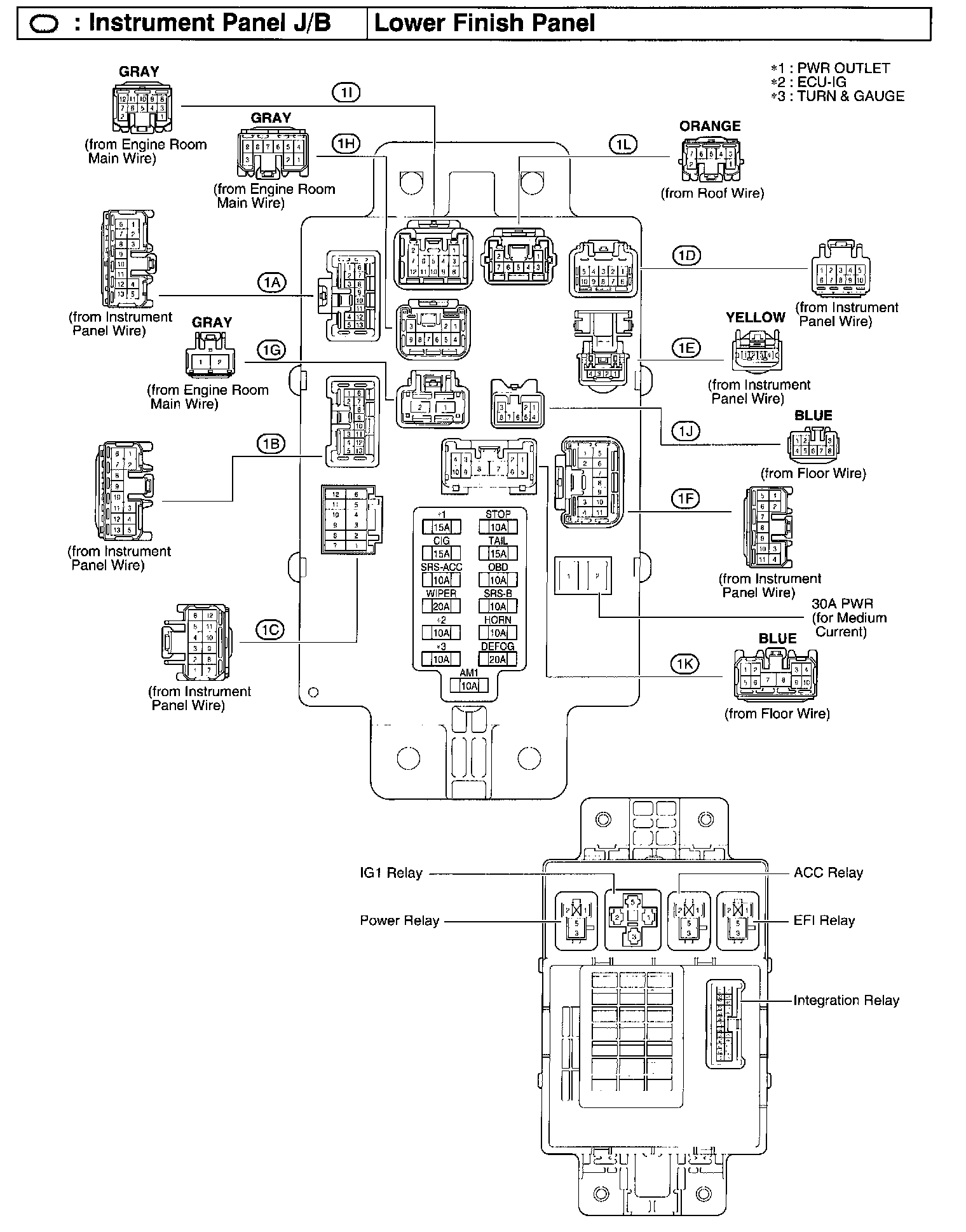

Instrument Panel J/B:

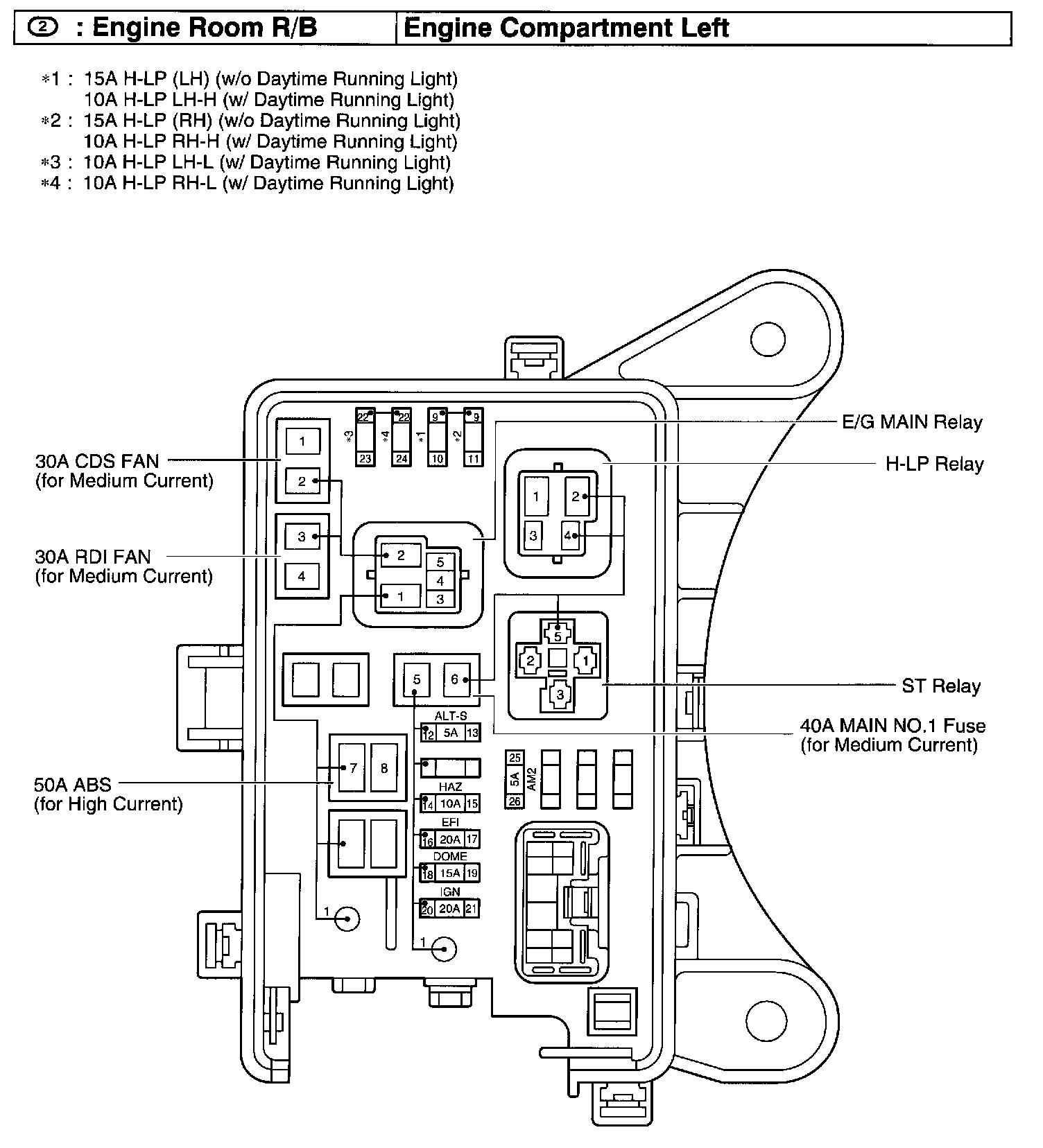

Engine Room R/B:

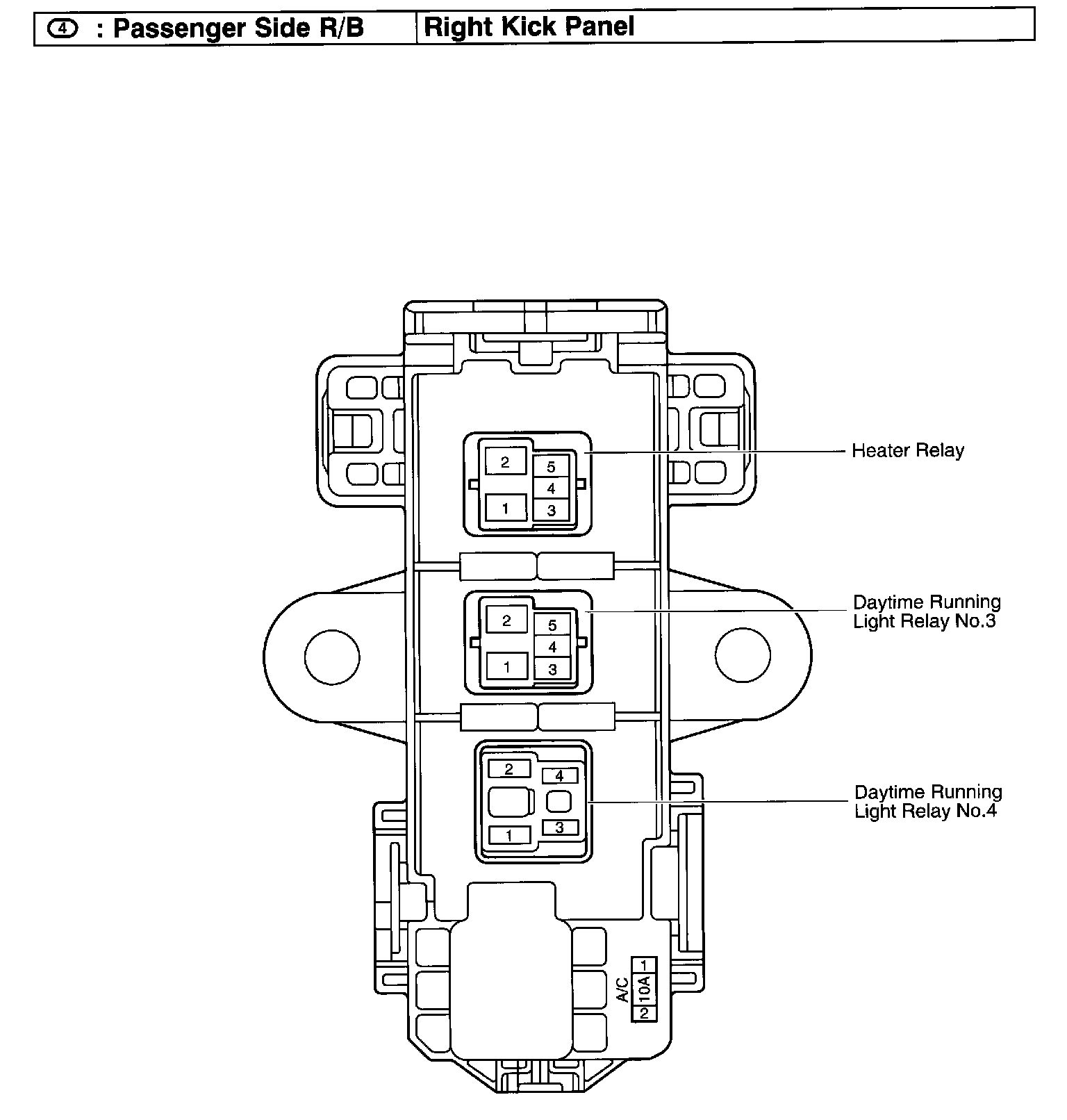

Passenger Side R/B:

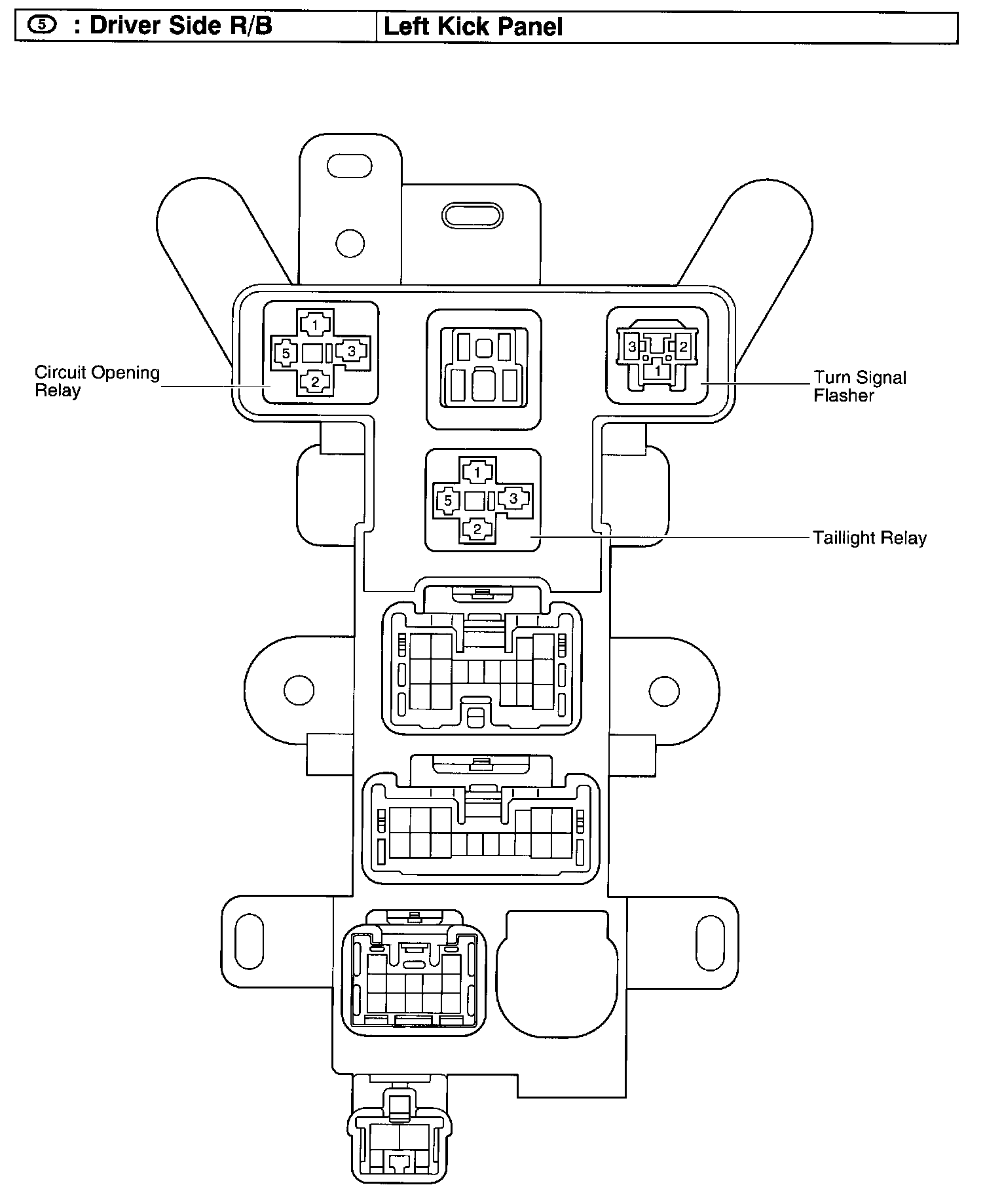

Driver Side R/B:

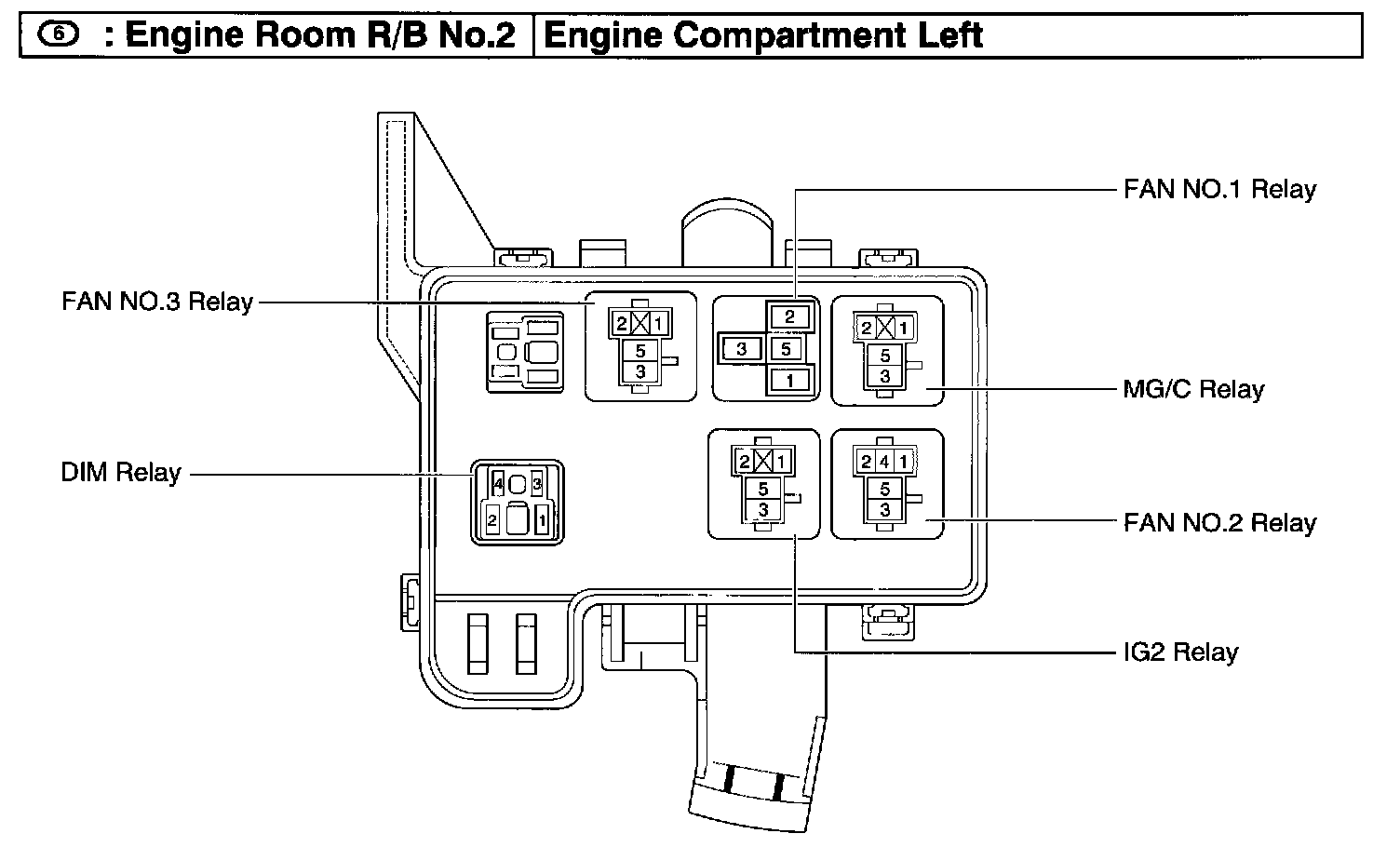

Engine Room R/B No. 2:

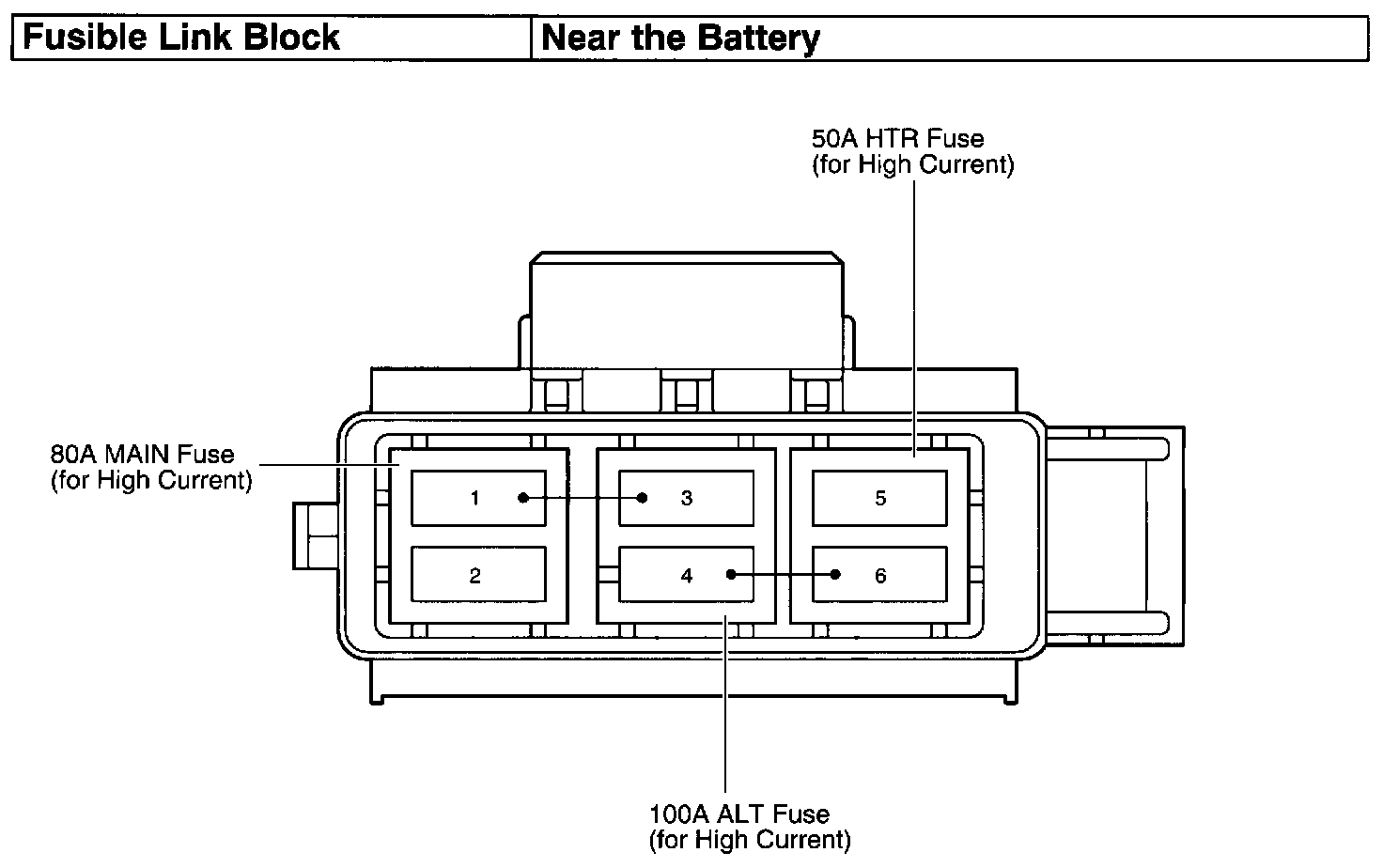

Fusible Link Block:

Details

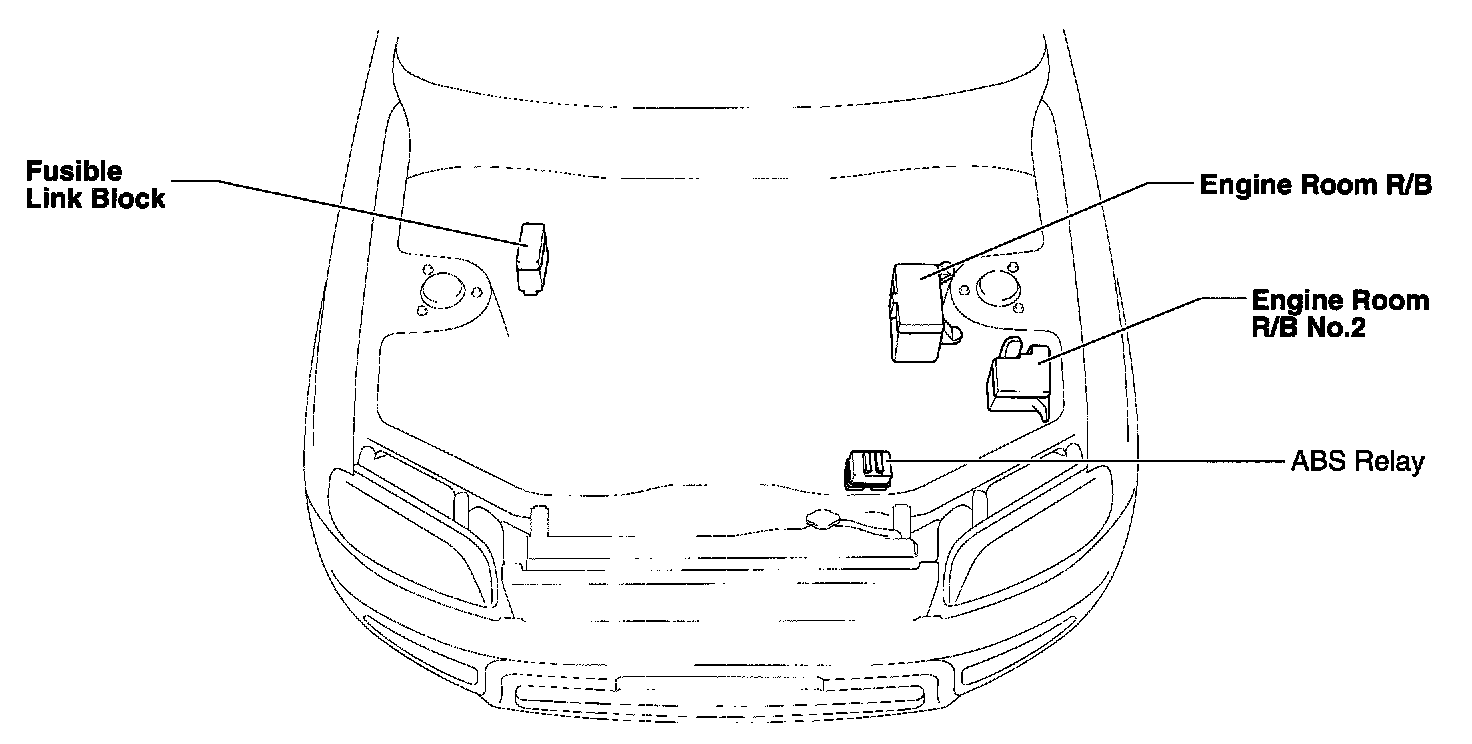

Engine Compartment:

Instrument Panel:

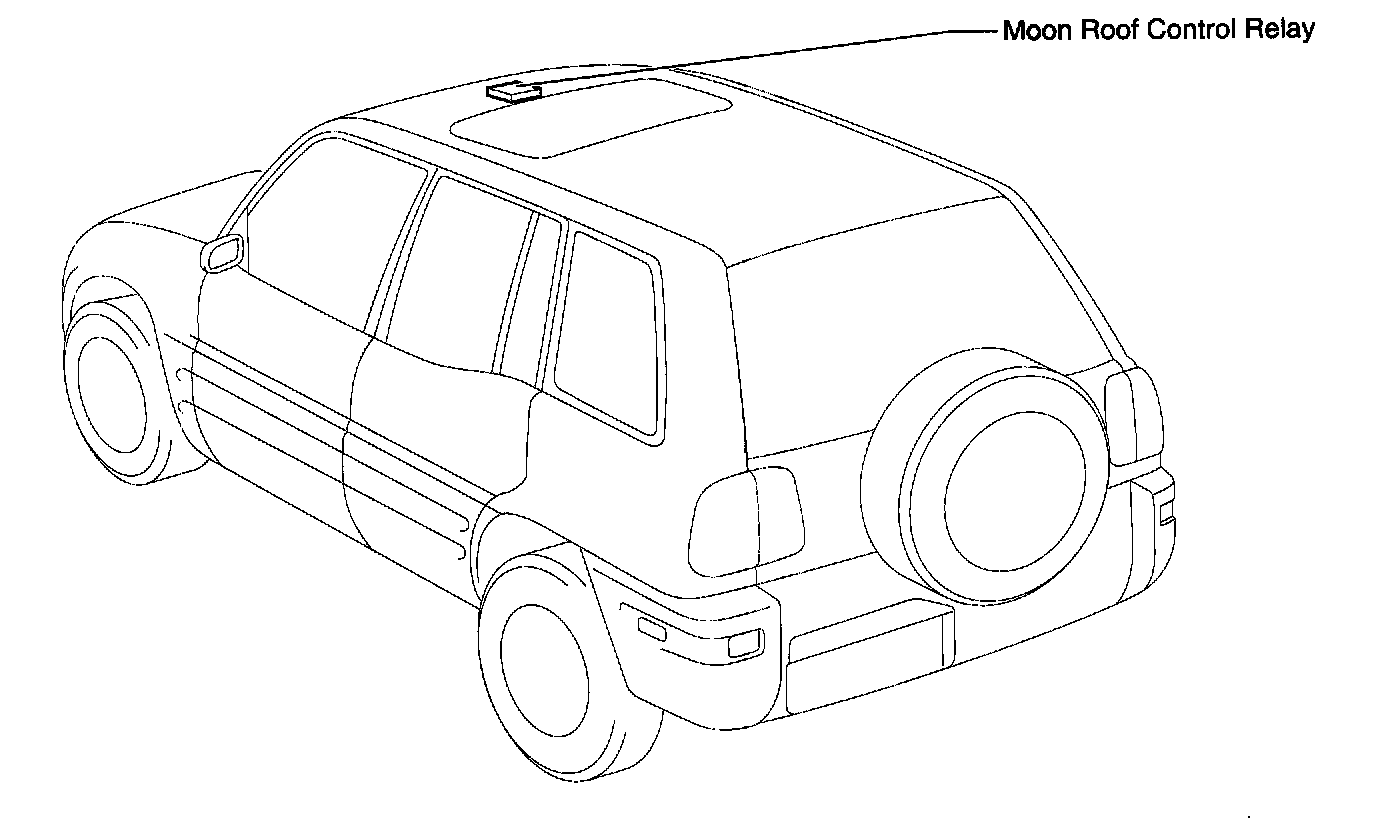

Body:

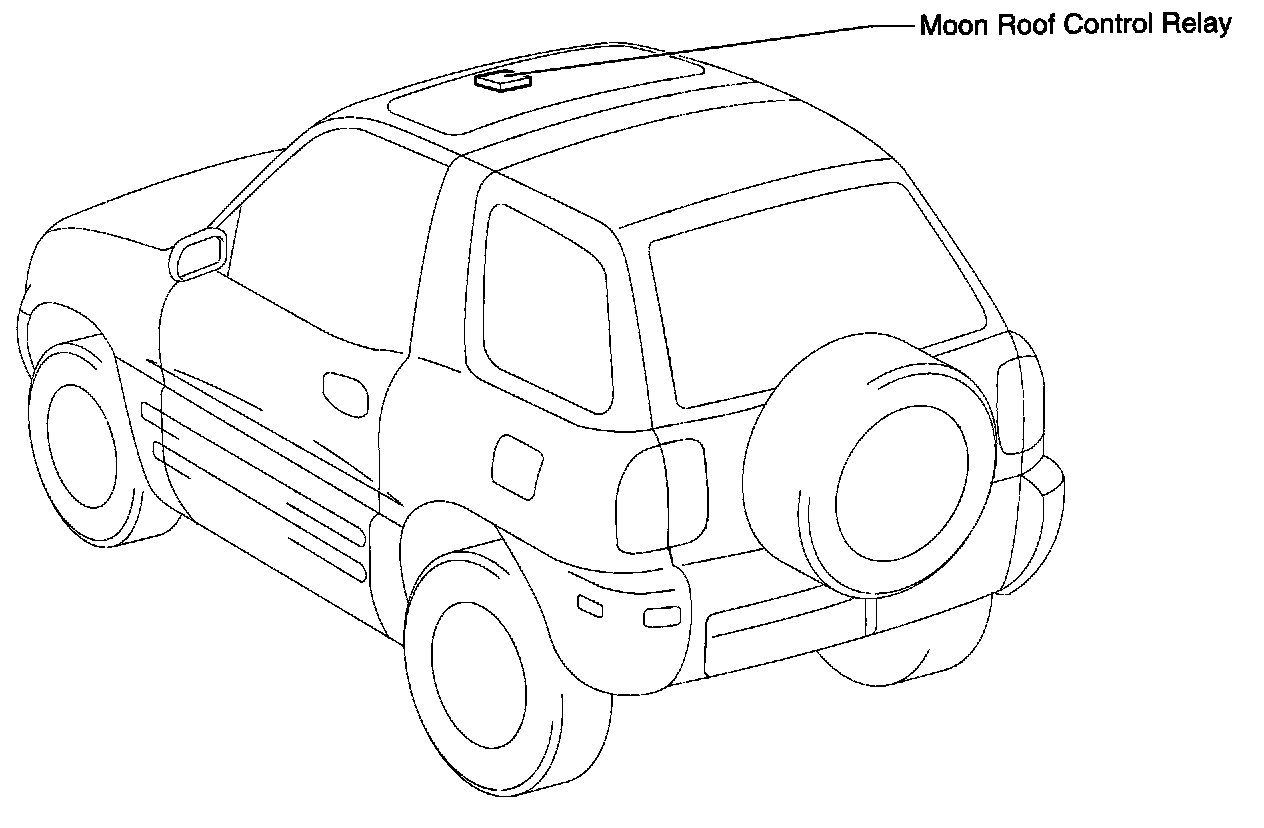

Body:

Locations
