On-Vehicle Inspection

INSPECT CRANKSHAFT POSITION SENSOR
a. Disconnect the crankshaft position sensor connector.

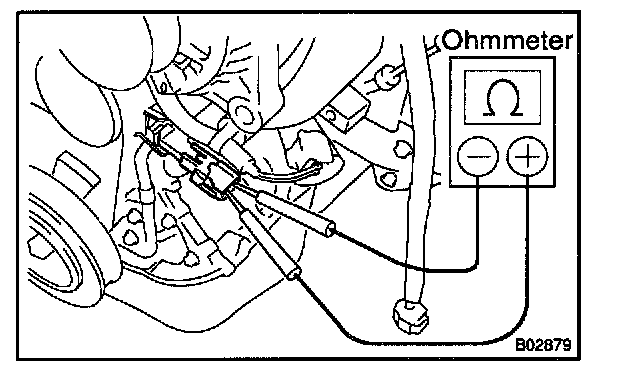

b. Using an ohmmeter, measure the resistance between terminals.

Resistance:
Cold 985 - 1,600 Ohms
Hot 1,265 - 1,890 Ohms

If the resistance is not as specified, replace the sensor.

c. Reconnect the crankshaft position sensor connector.
