Home
>>
Toyota
>>
2000
>>
RAV4 2-Door 4WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Differential, Automatic Transaxle

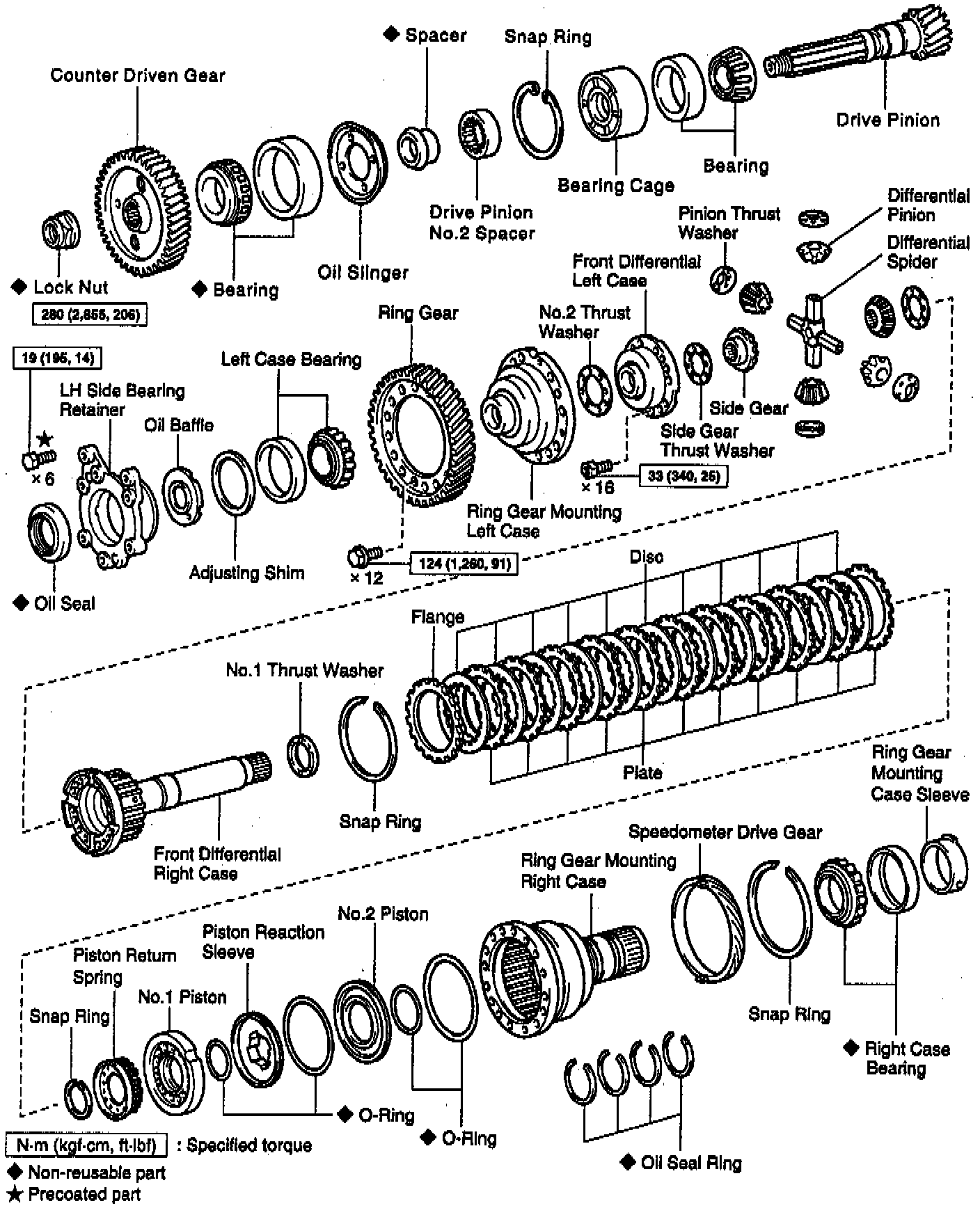

Differential, Automatic Transaxle
