Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

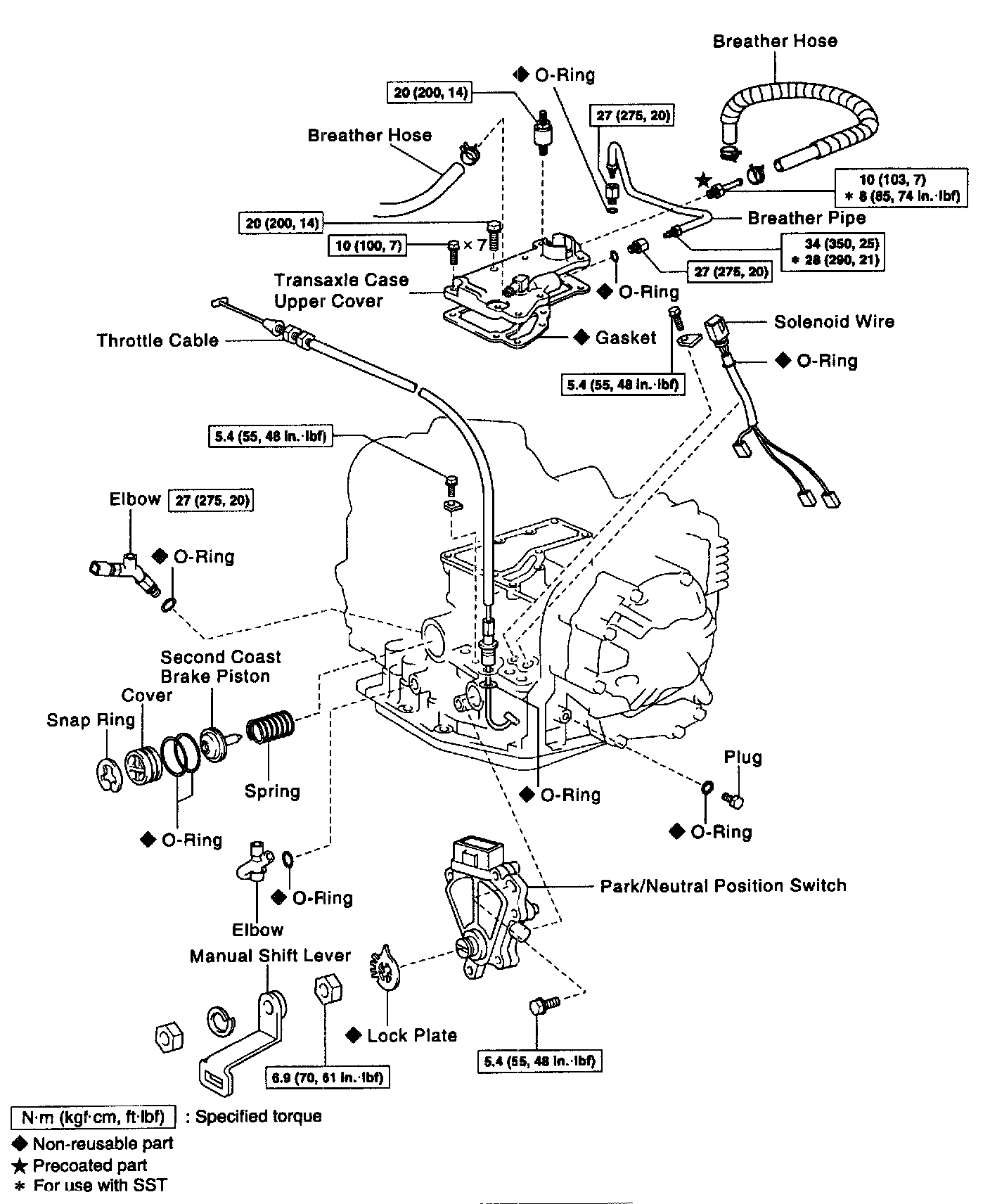

EXTERNAL COMPONENTS

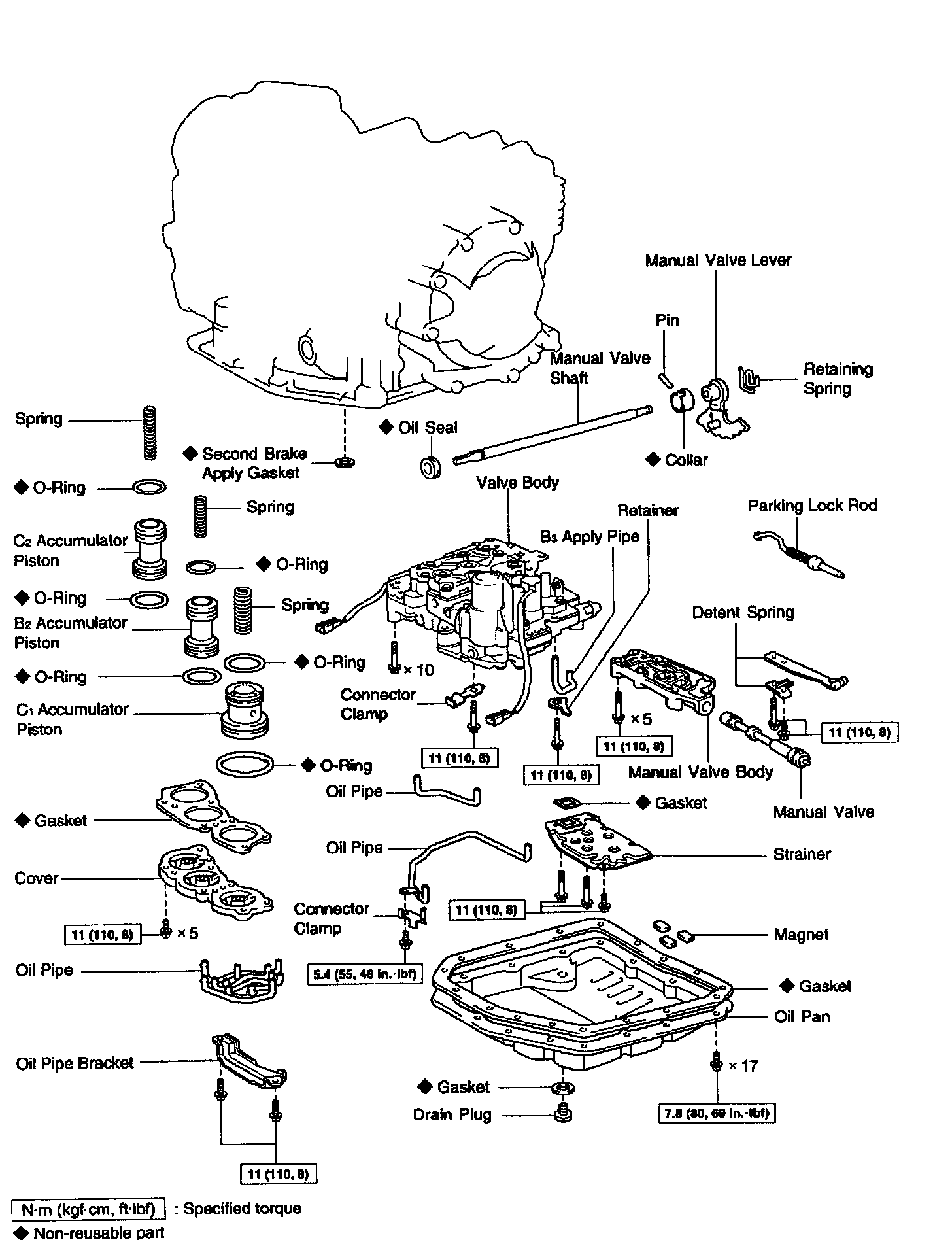

VALVE BODY AND ACCUMULATORS

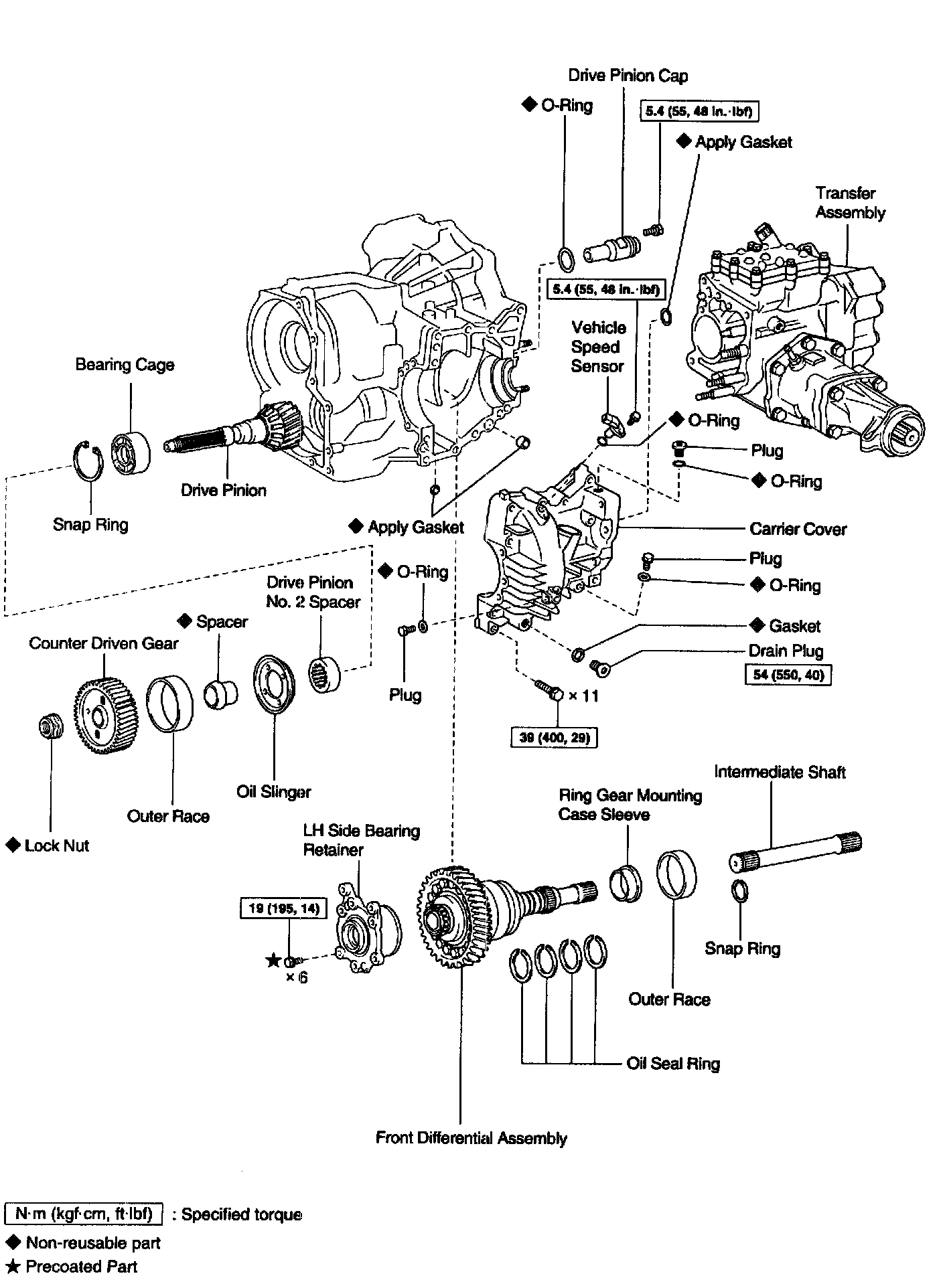

DIFFERENTIAL AND TRANSFER ASSEMBLIES

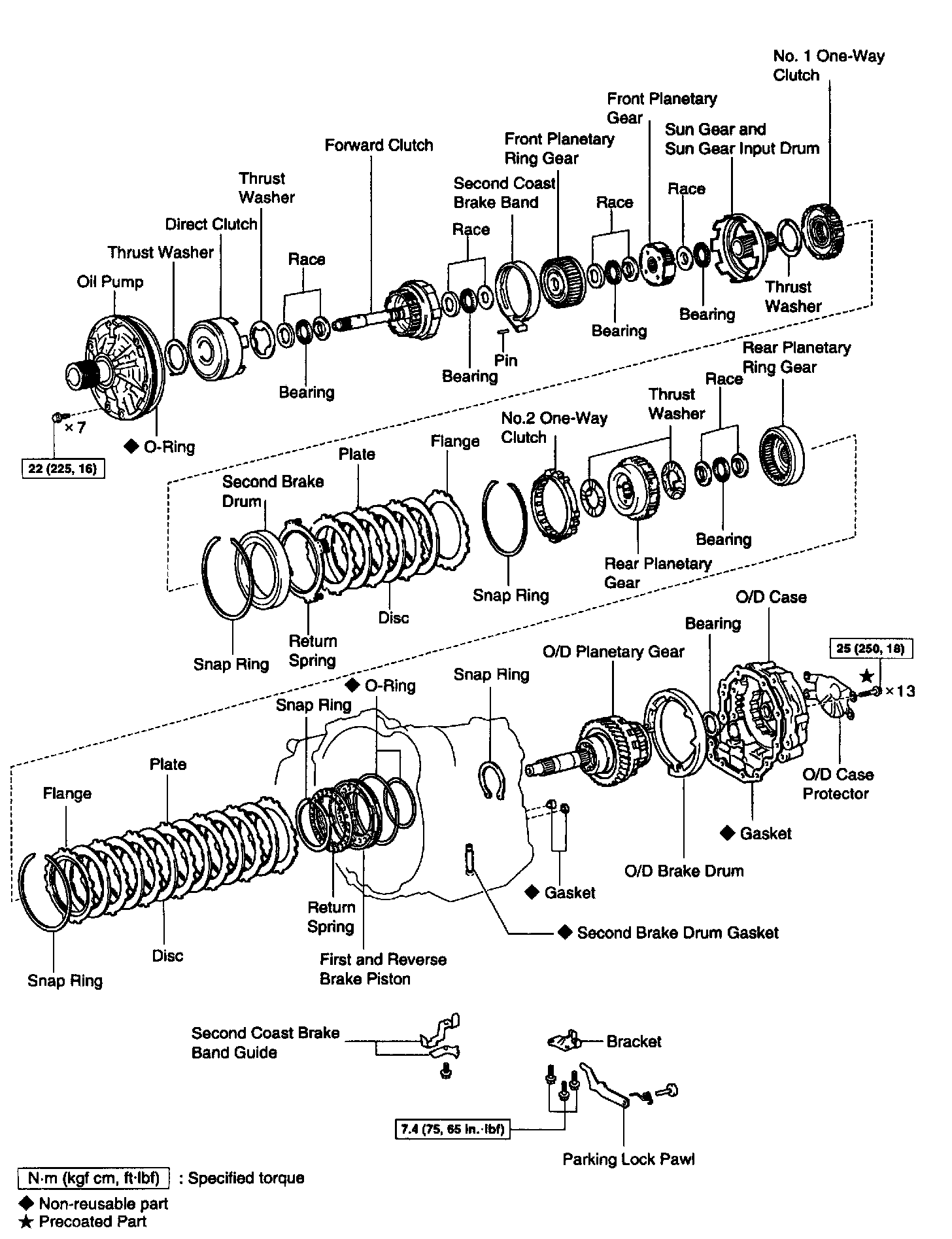

INTERNAL COMPONENTS
