Engine Service Data

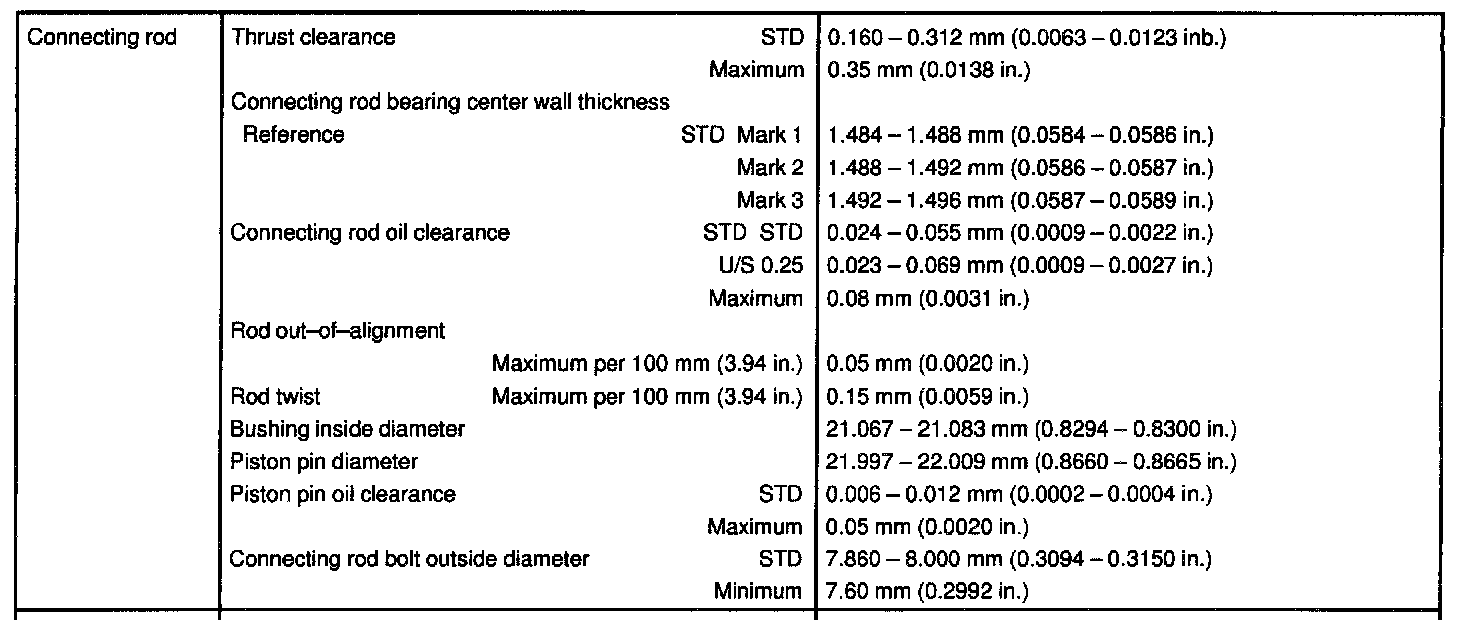

3S-FE Engine Mechanical Data:

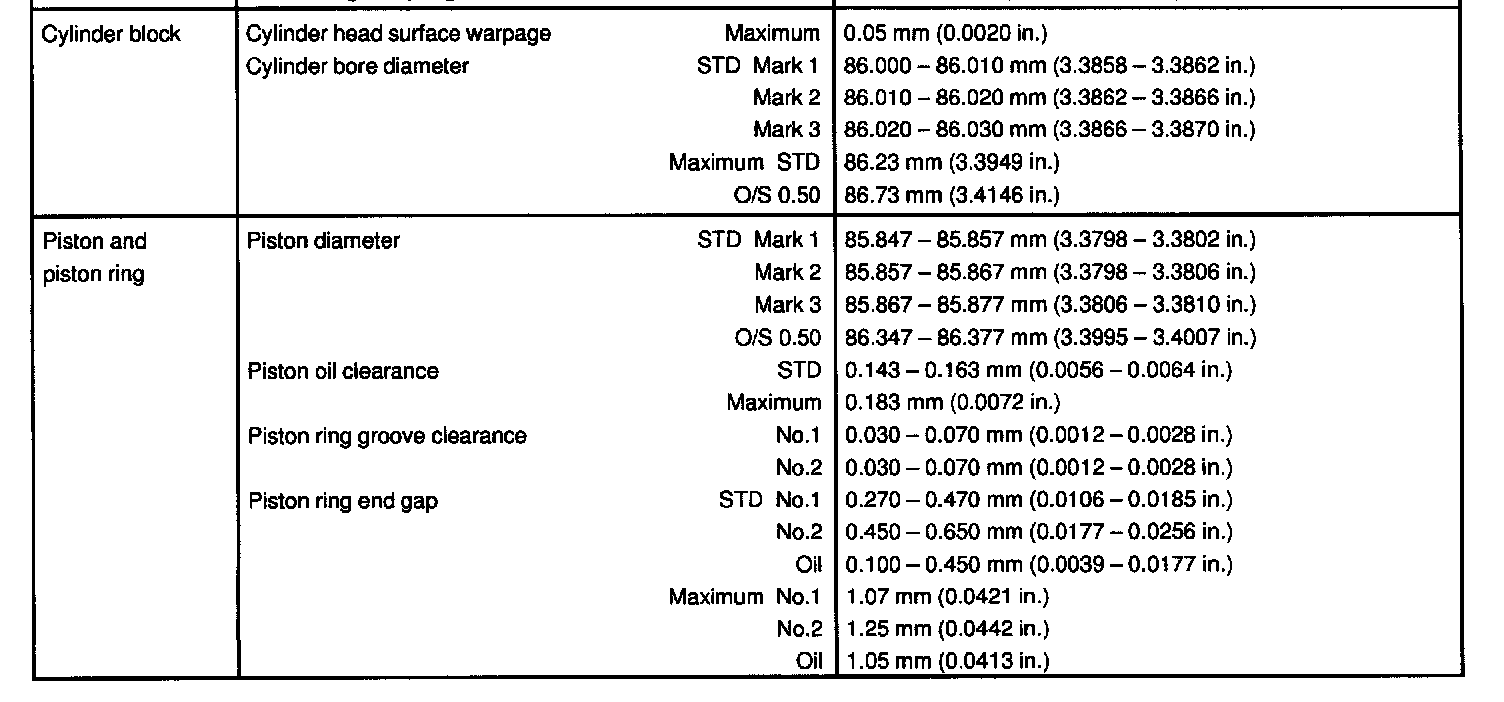

3S-FE Engine Mechanical Cont.:

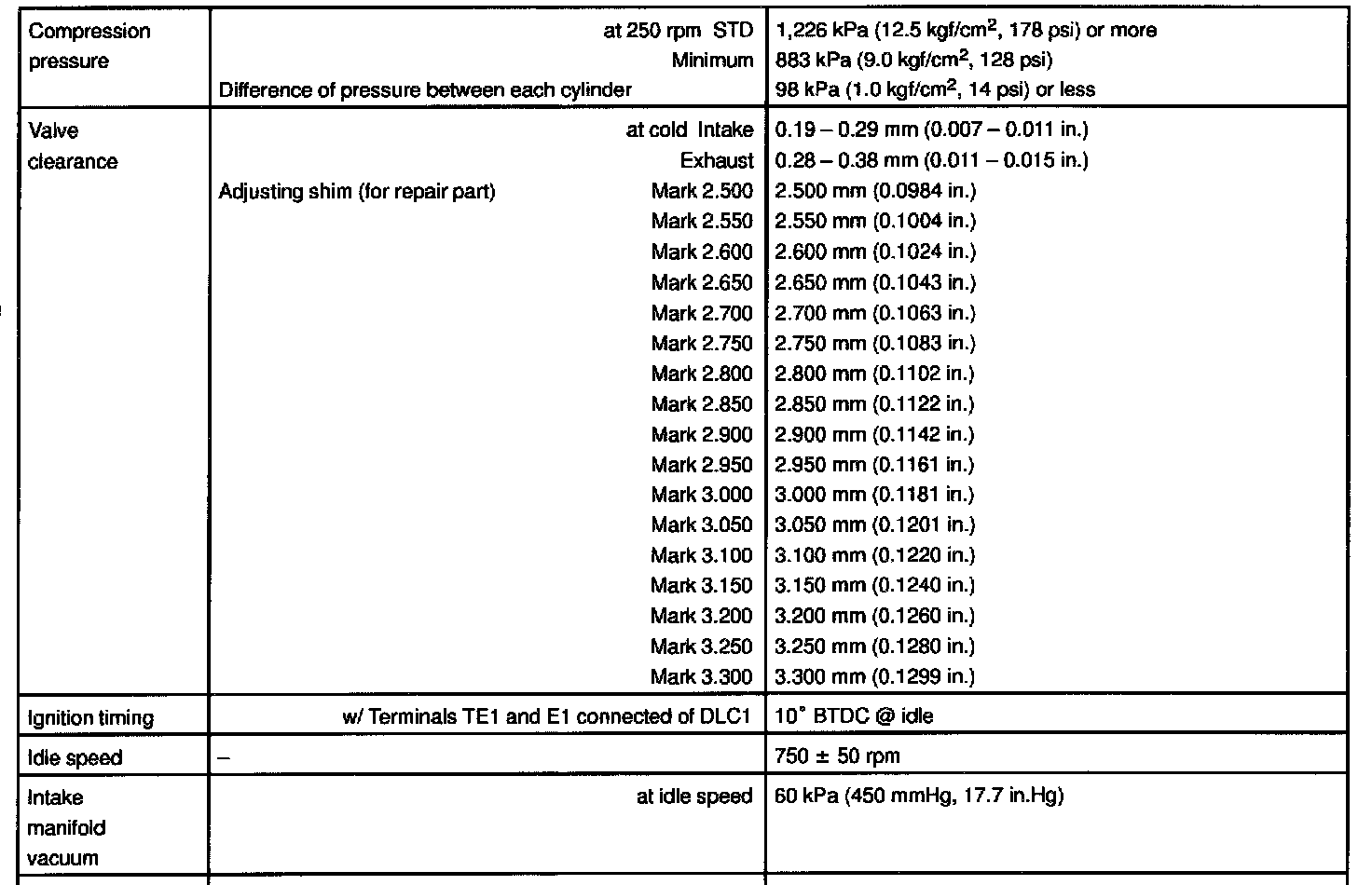

3S-FE Engine Mechanical Cont.:

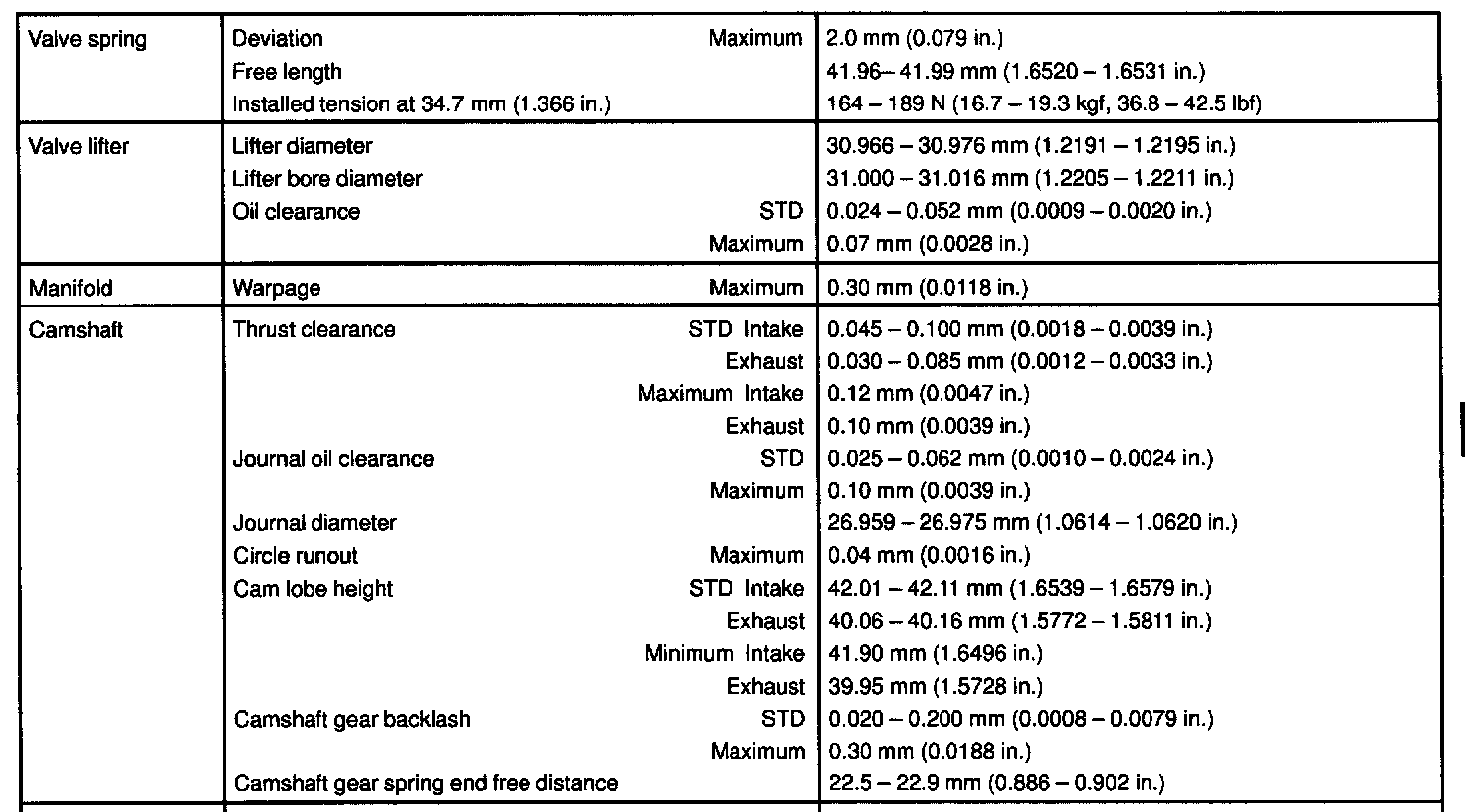

3S-FE Engine Mechanical Cont.:

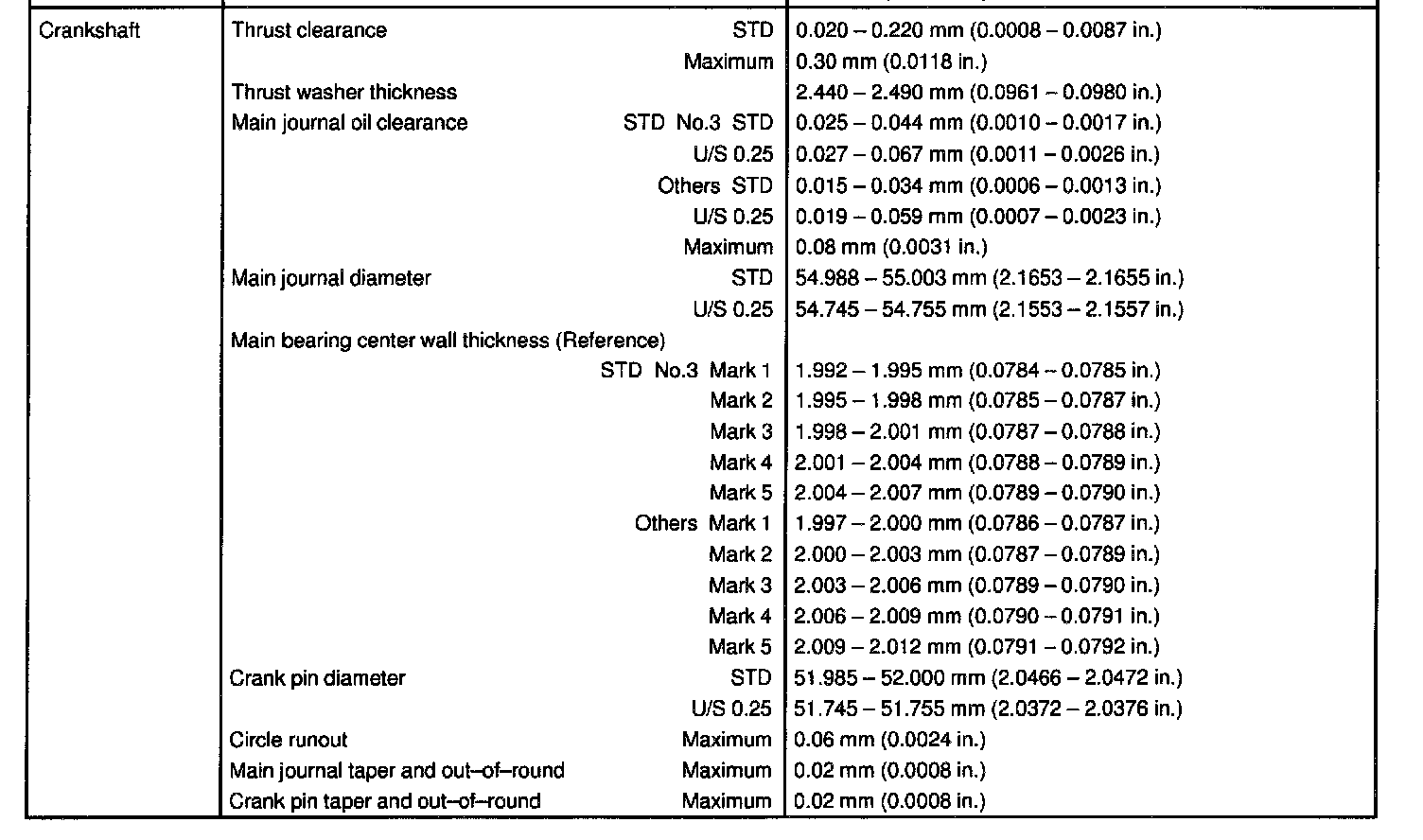

3S-FE Engine Mechanical Cont.:




3S-FE Engine Mechanical Cont.:
