Component Inspection

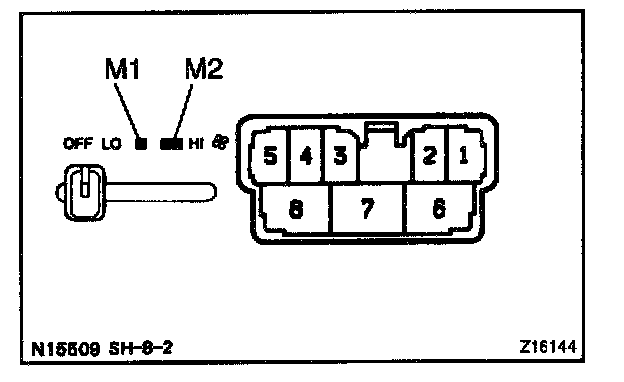

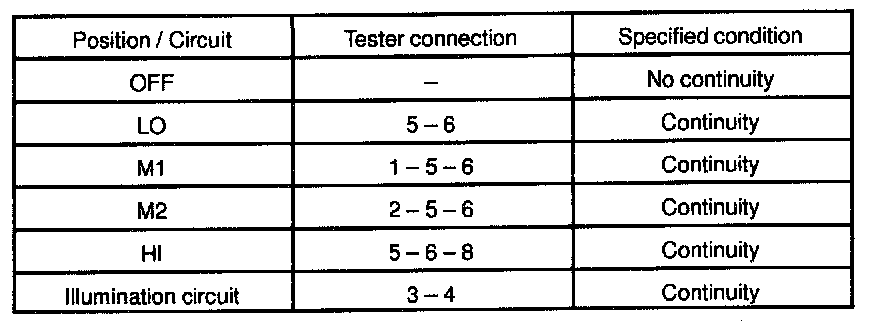

1. INSPECTION BLOWER SPEED CONTROL SWITCH OPERATION
If continuity is not as specified, replace heater control assembly.




2. INSPECT DEFROSTER MODE SWITCH CONTINUITY
Move the mode lever to the DEF. position, then check that there is continuity.
If continuity is not as specified, replace the switch.
