Control Module HVAC: Service and Repair

REMOVAL

1. REMOVE GLOVE COMPARTMENT DOOR

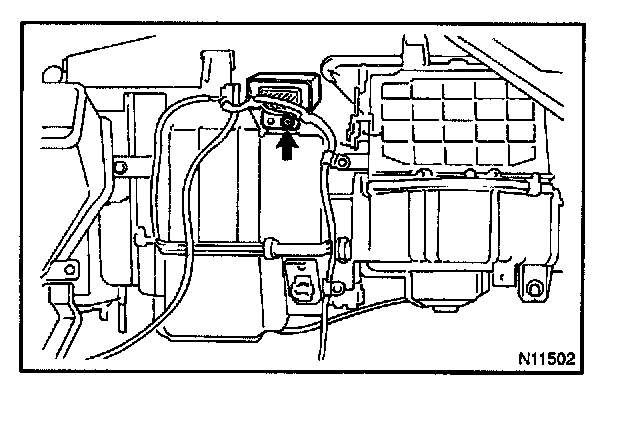

2. REMOVE AMPLIFIER
a. Disconnect the connector form amplifier.
b. Remove the screw and amplifier.

INSTALLATION
Installation is in the reverse order of removal.
