Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

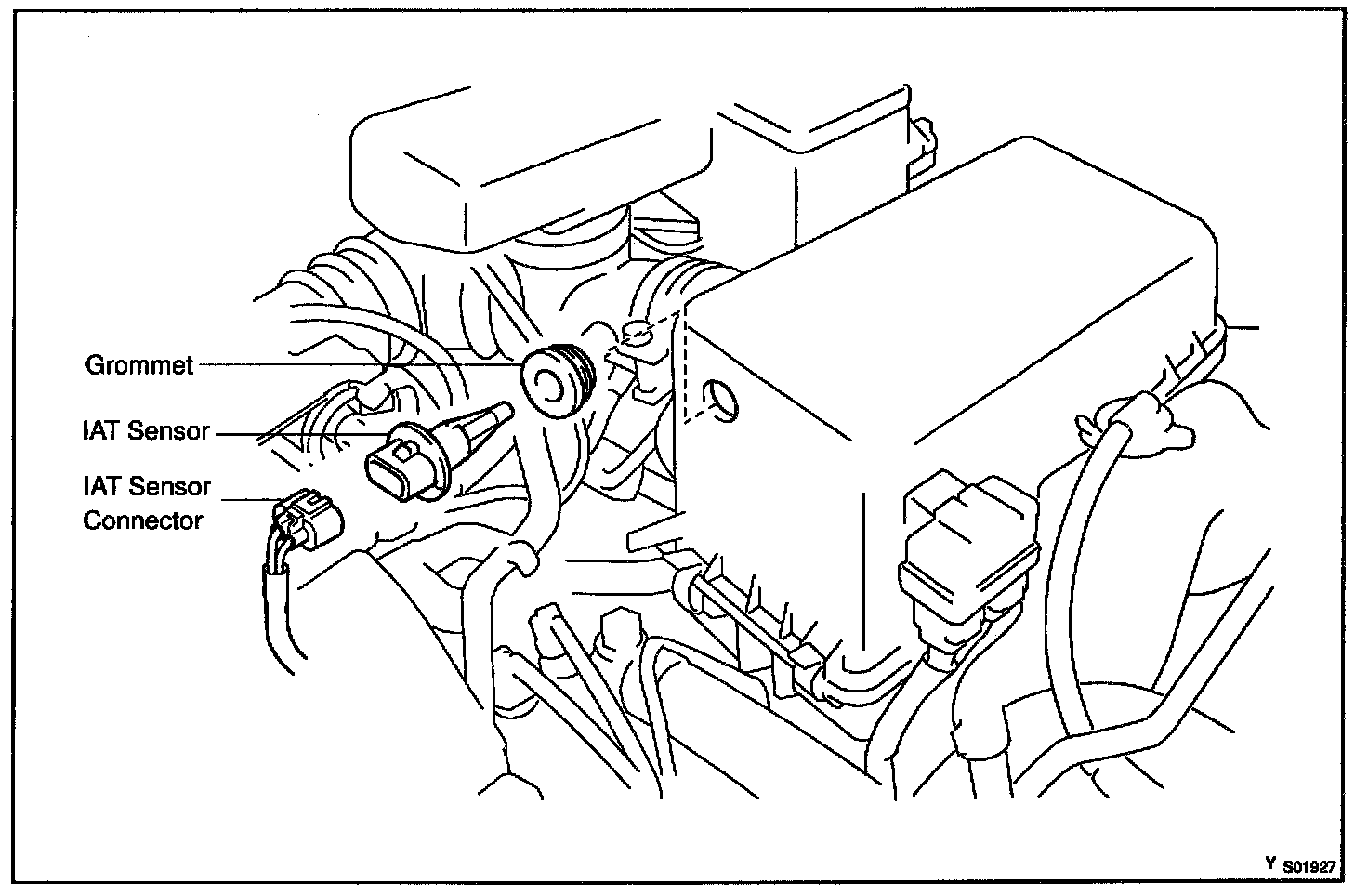

COMPONENTS

INSPECTION

1. REMOVE IAT SENSOR

2. INSPECT IAT SENSOR RESISTANCE

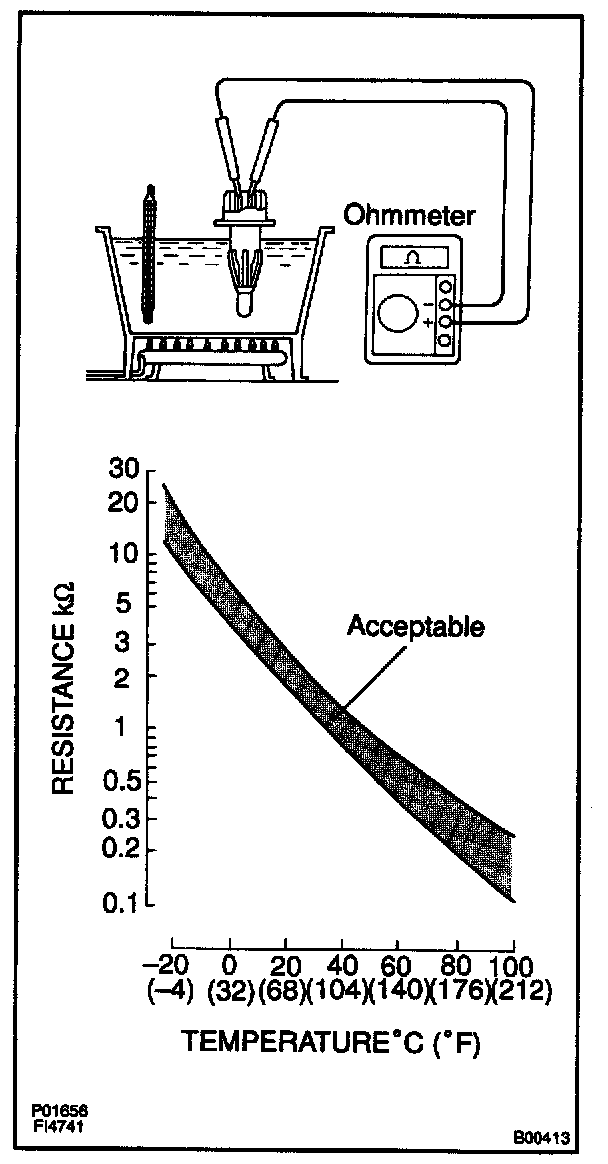

Using an ohmmeter, measure the resistance between the terminals.

Resistance: Refer to the graph

If the resistance is not as specified, replace the sensor.

3. REINSTALL IAT SENSOR
