Ignition Coil: Testing and Inspection
INSPECT IGNITION COILS WITH IGNITERSa. Disconnect the high-tension cords from the ignition coils.

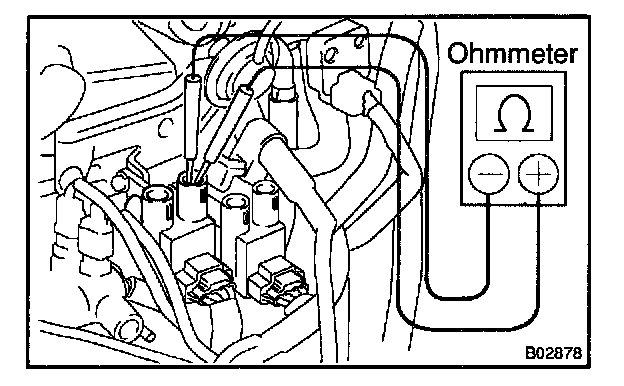

b. Using an ohmmeter, measure the resistance between the high-tension terminals.
Secondary coil resistance:
Cold 9.7 - 16.7 kOhms
Hot 12.4 - 19.6 kOhms
If the resistance is not as specified, replace the ignition coils.
c. Reconnect the high-tension cords to the ignition coils.
