Alignment
Alignment

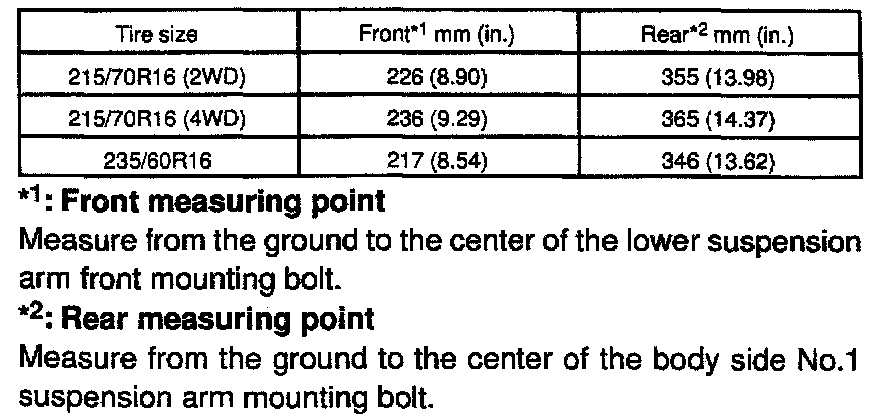

Measuring Point Reference:

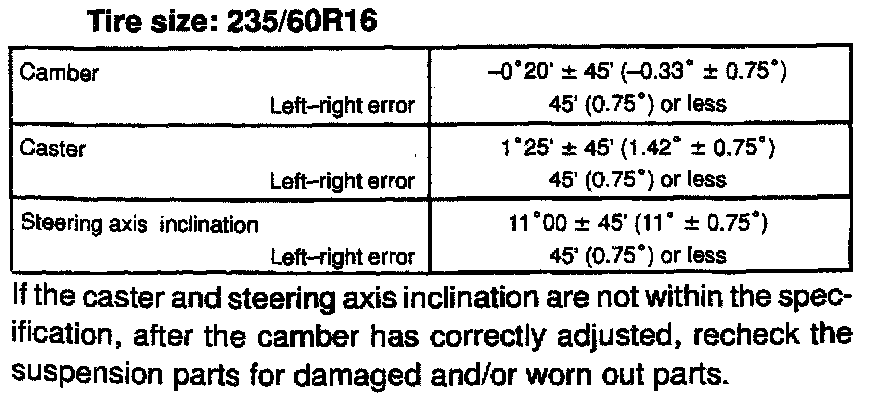

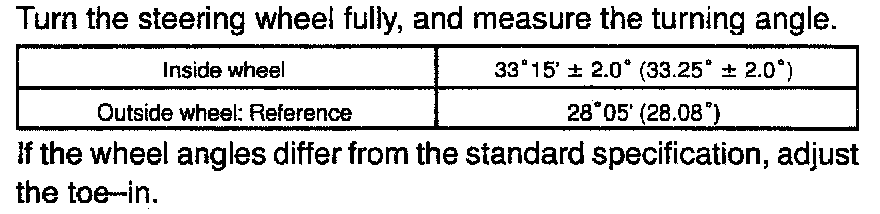

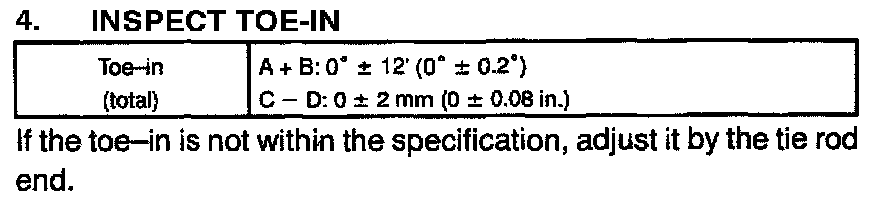

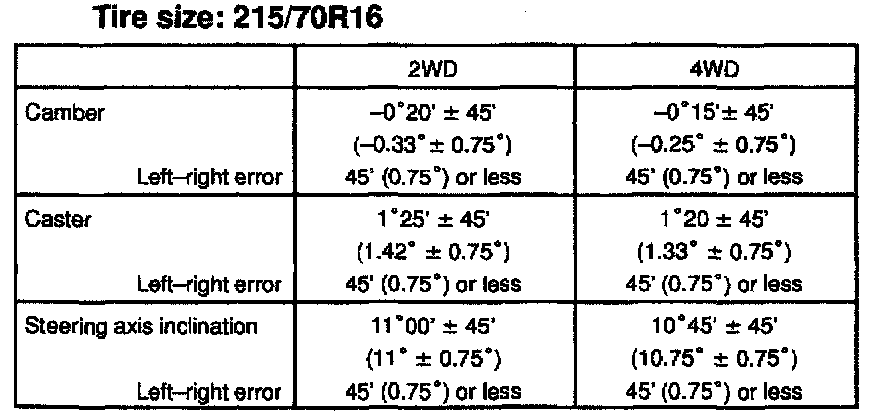

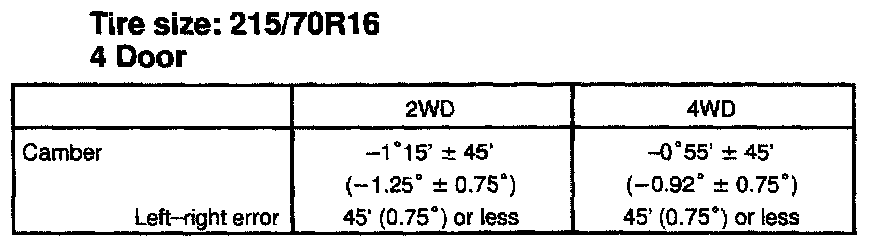

Front Wheel Alignment
Measuring Point Reference:

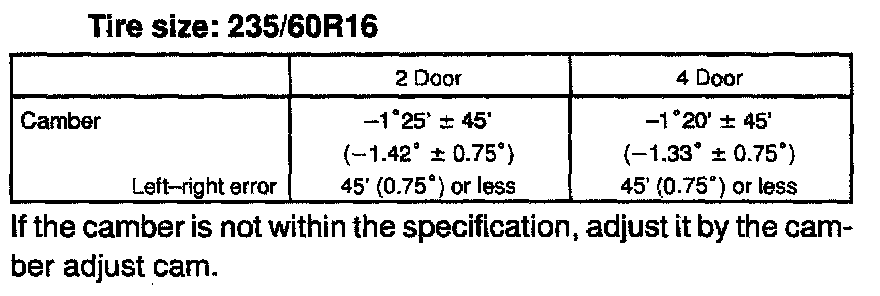

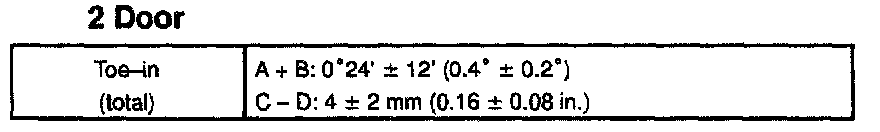

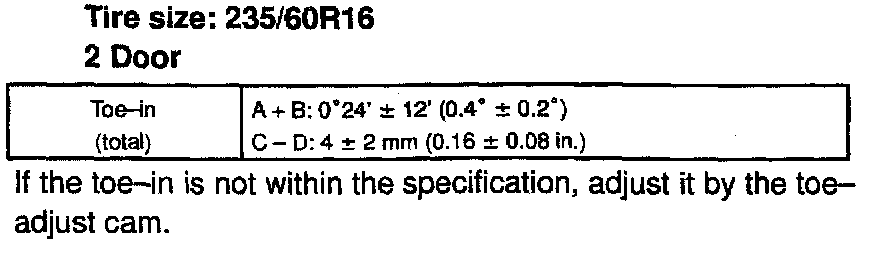

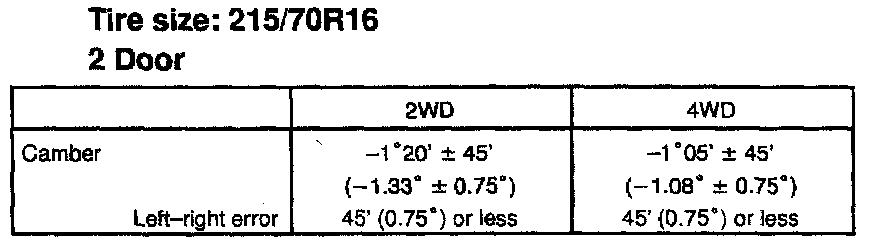

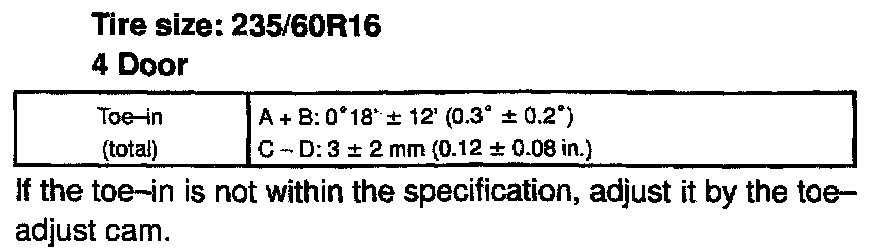

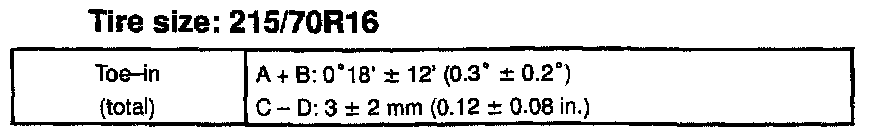

Rear Wheel Alignment
