Engine Torque and Sequence

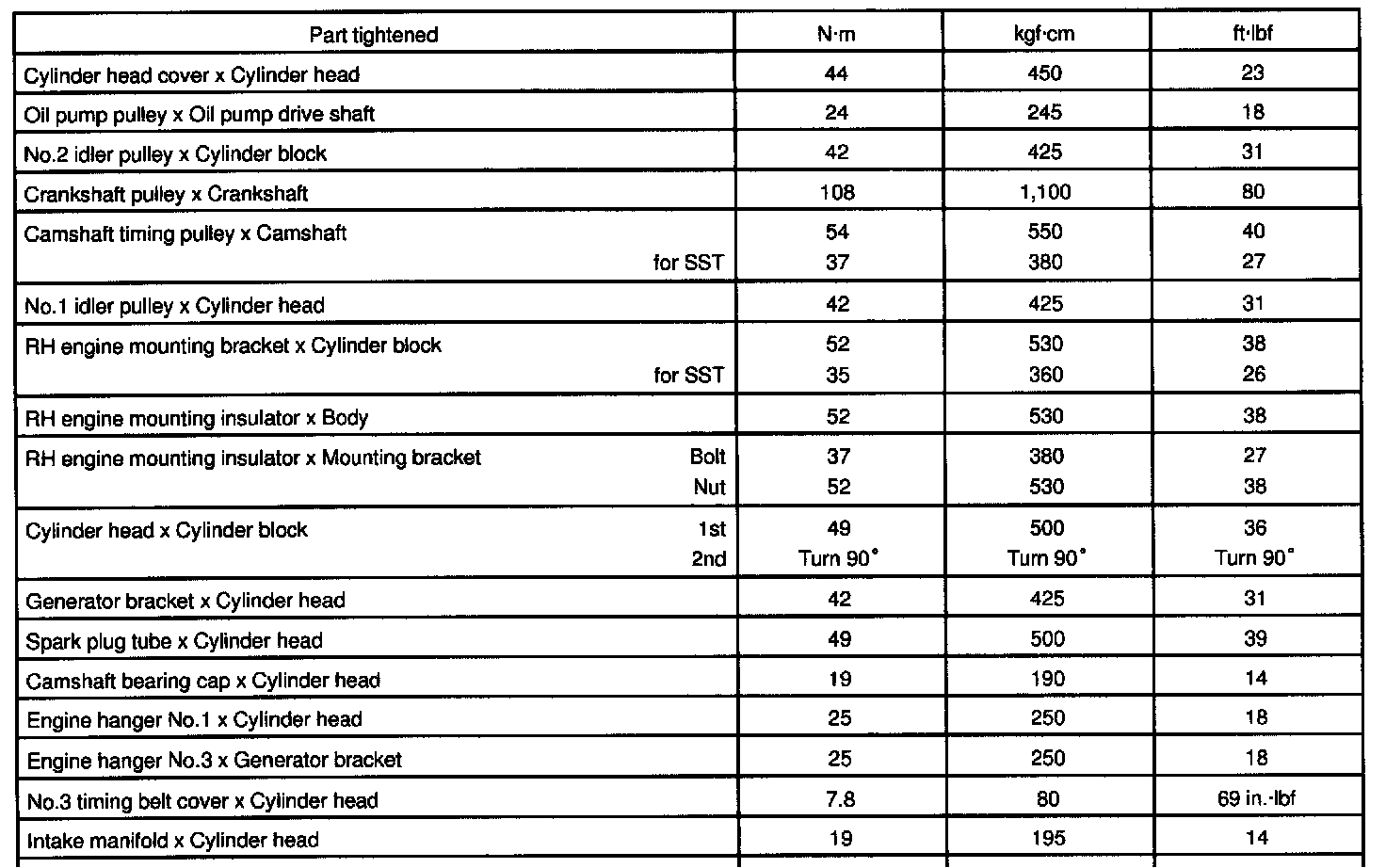

3S-FE Engine Mechanical Torque:

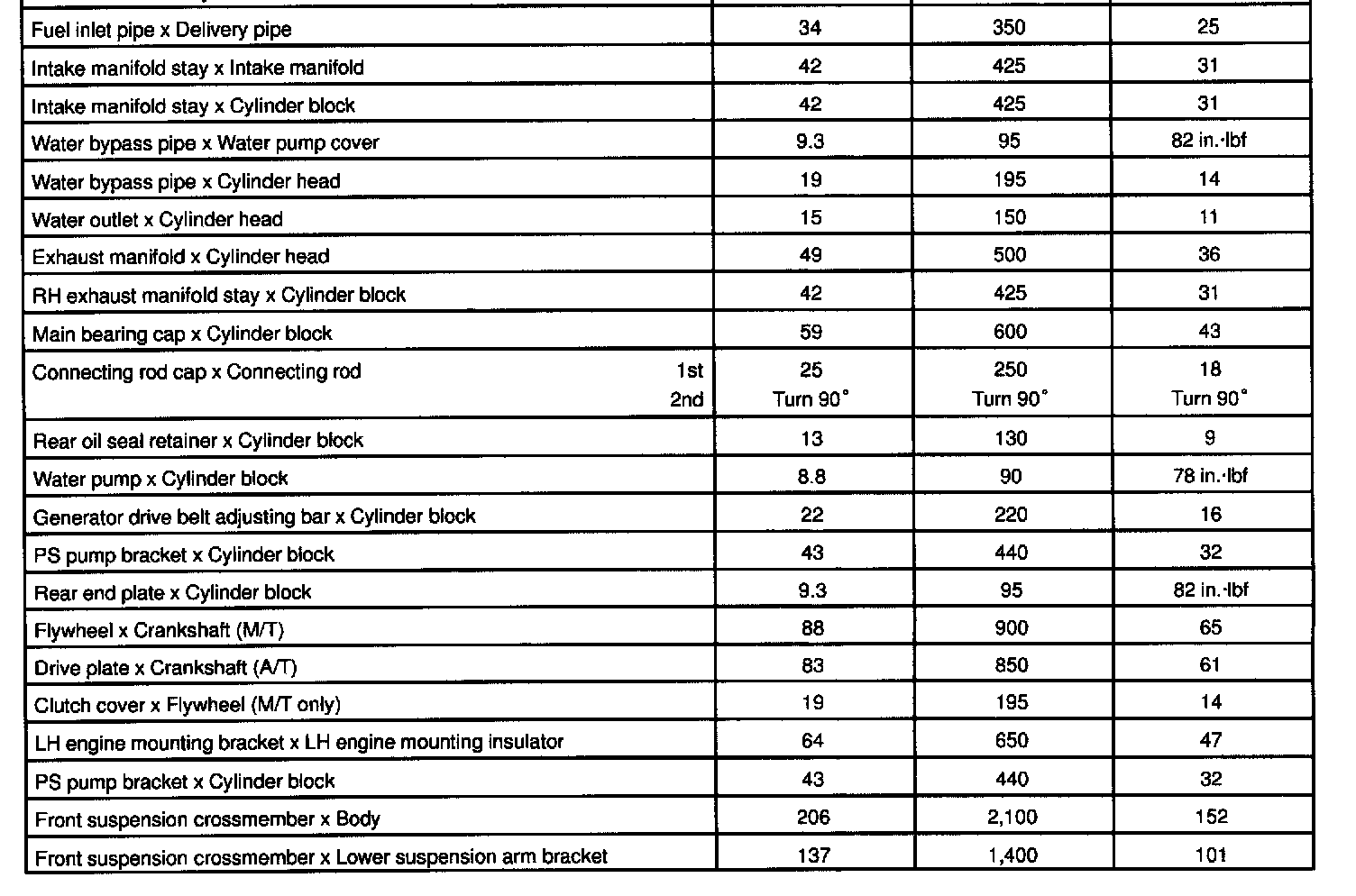

3S-FE Engine Torque Cont.:

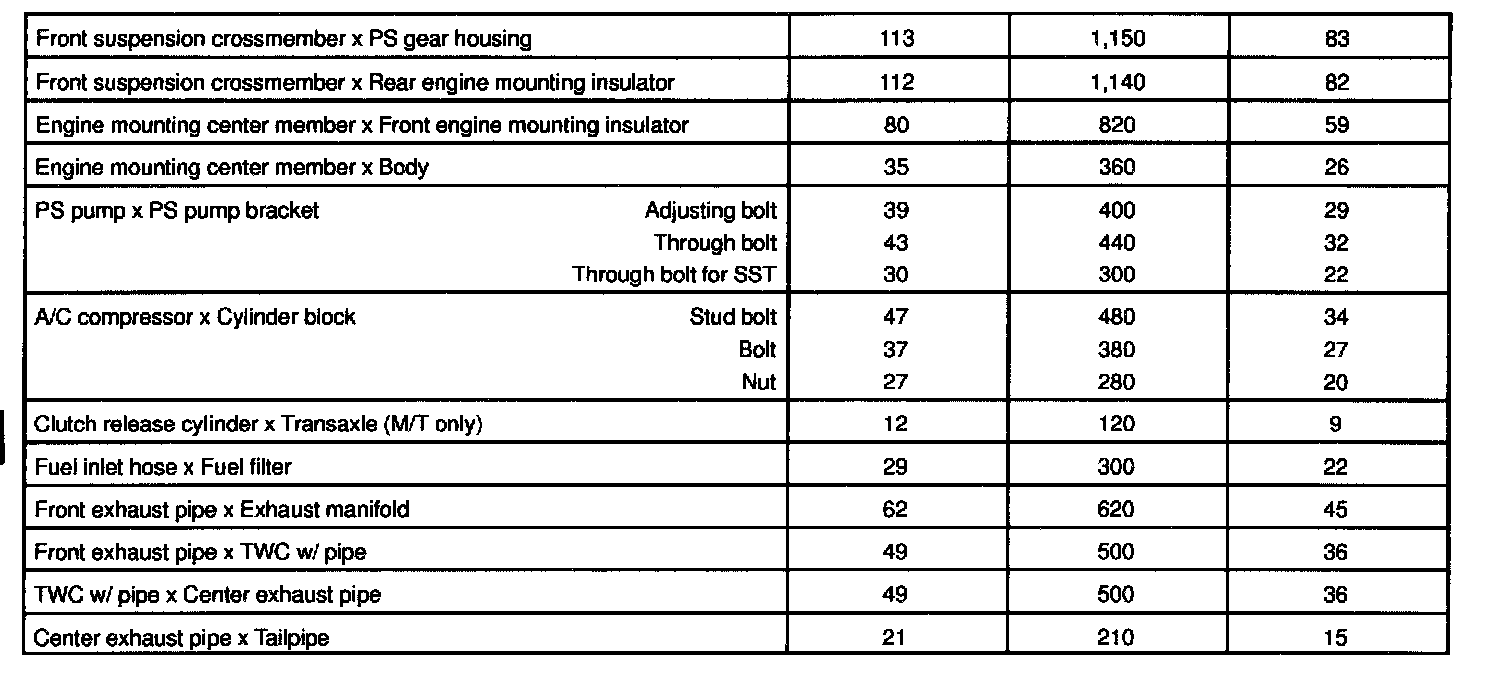

3S-FE Engine Torque Cont.:

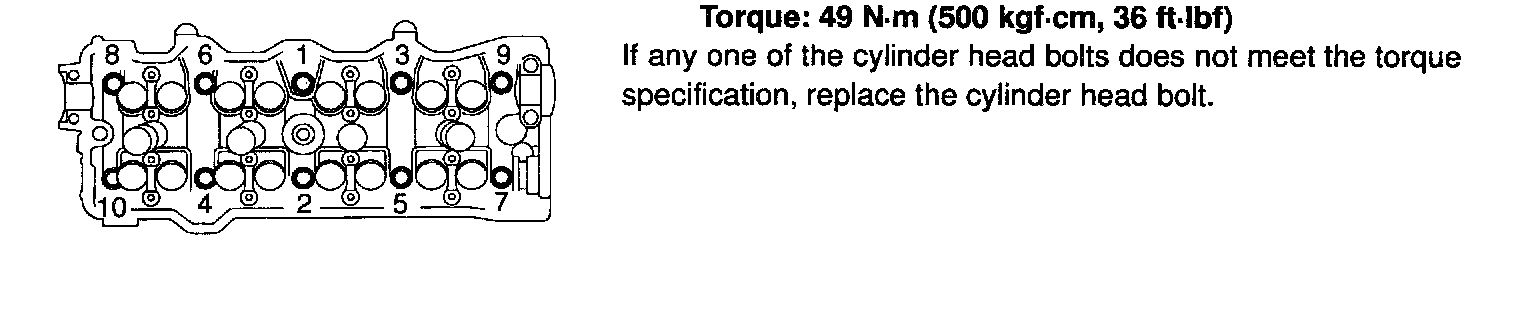

3S-FE Cylinder Head Torque & Sequence:




3S-FE Cylinder Head Torque & Sequence:
