Cruise Control Switch: Testing and Inspection

Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION
This circuit carries the SET/COAST RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.

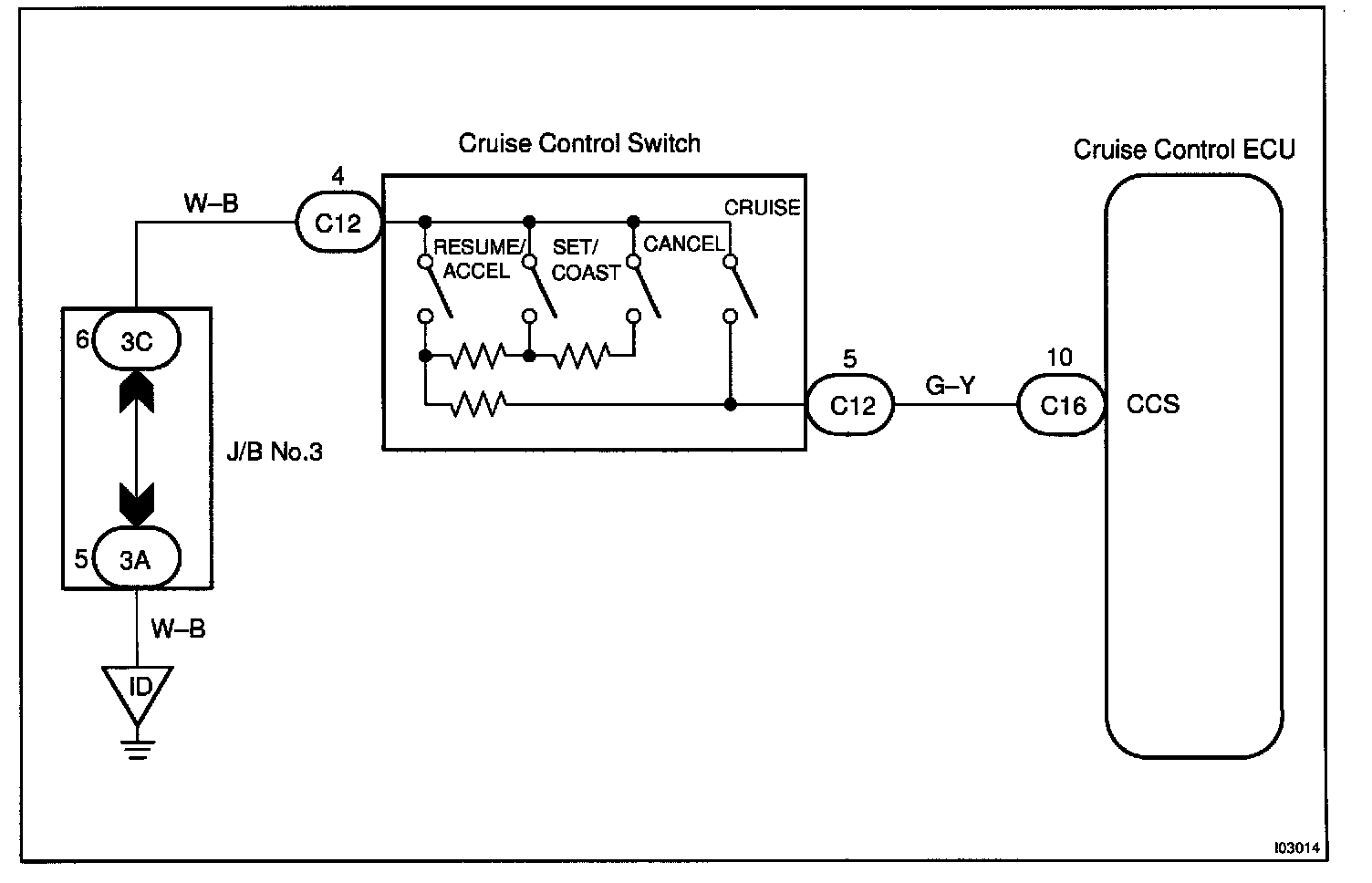

Wiring Diagram:

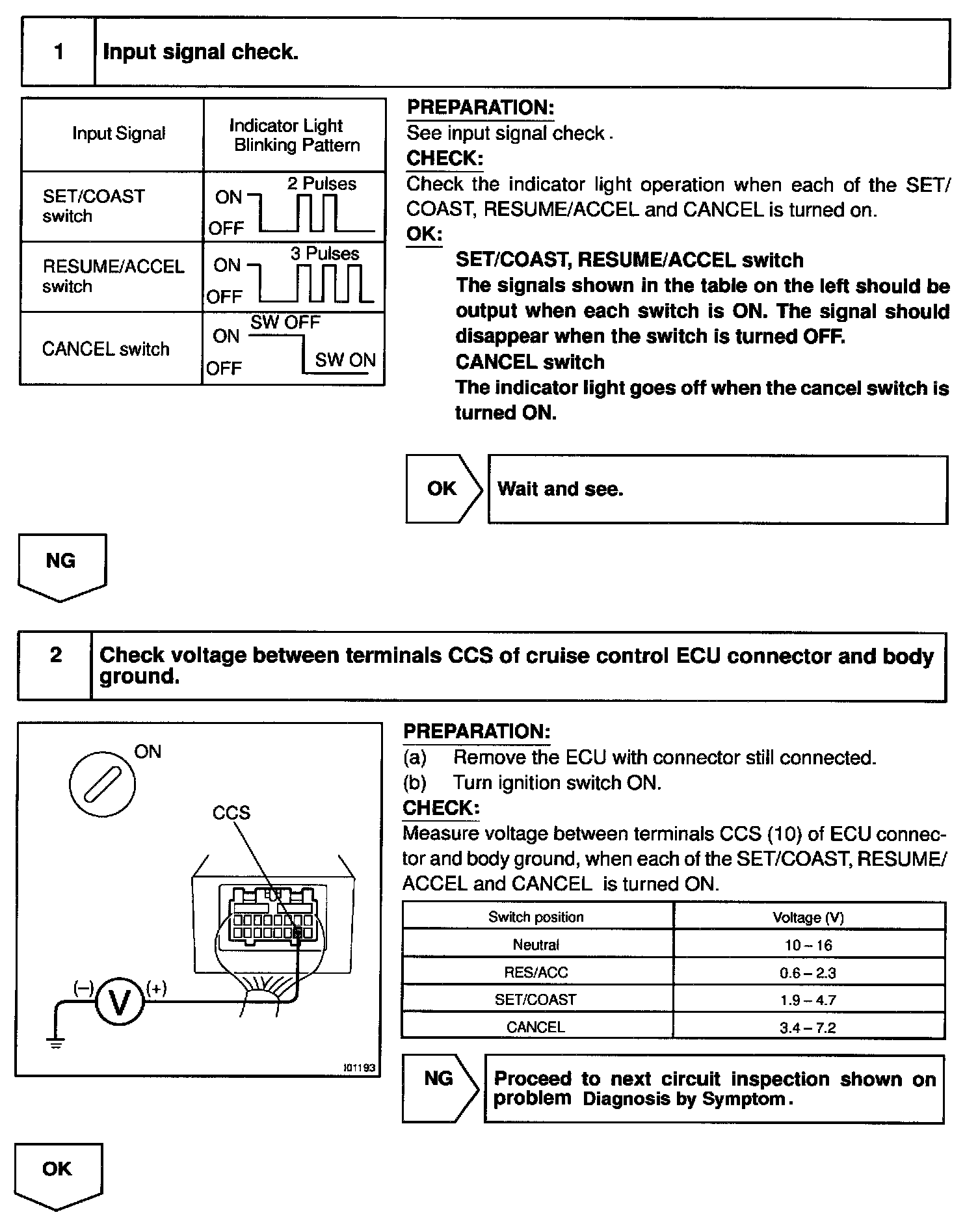

Steps 1 - 2:

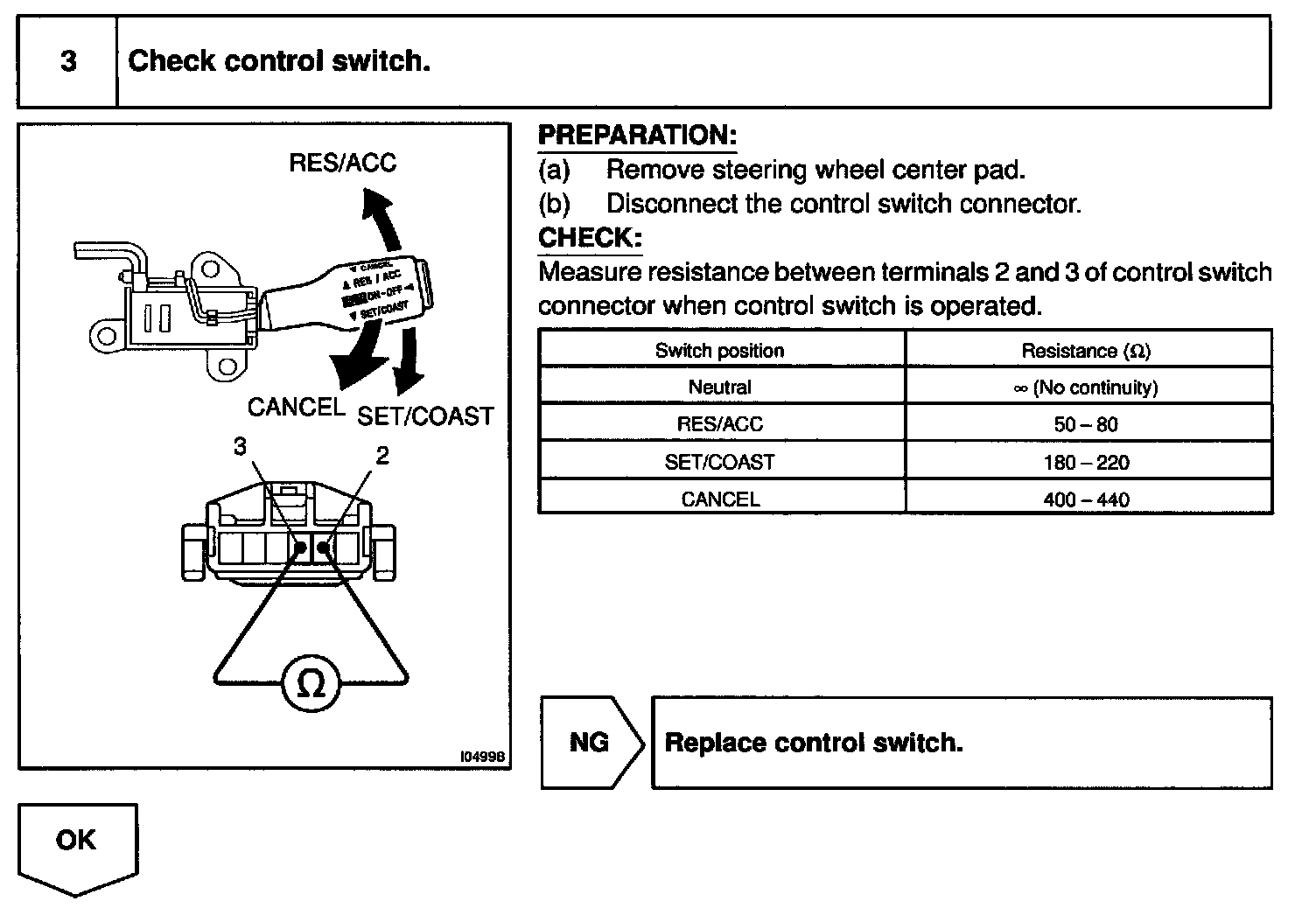

Step 3:

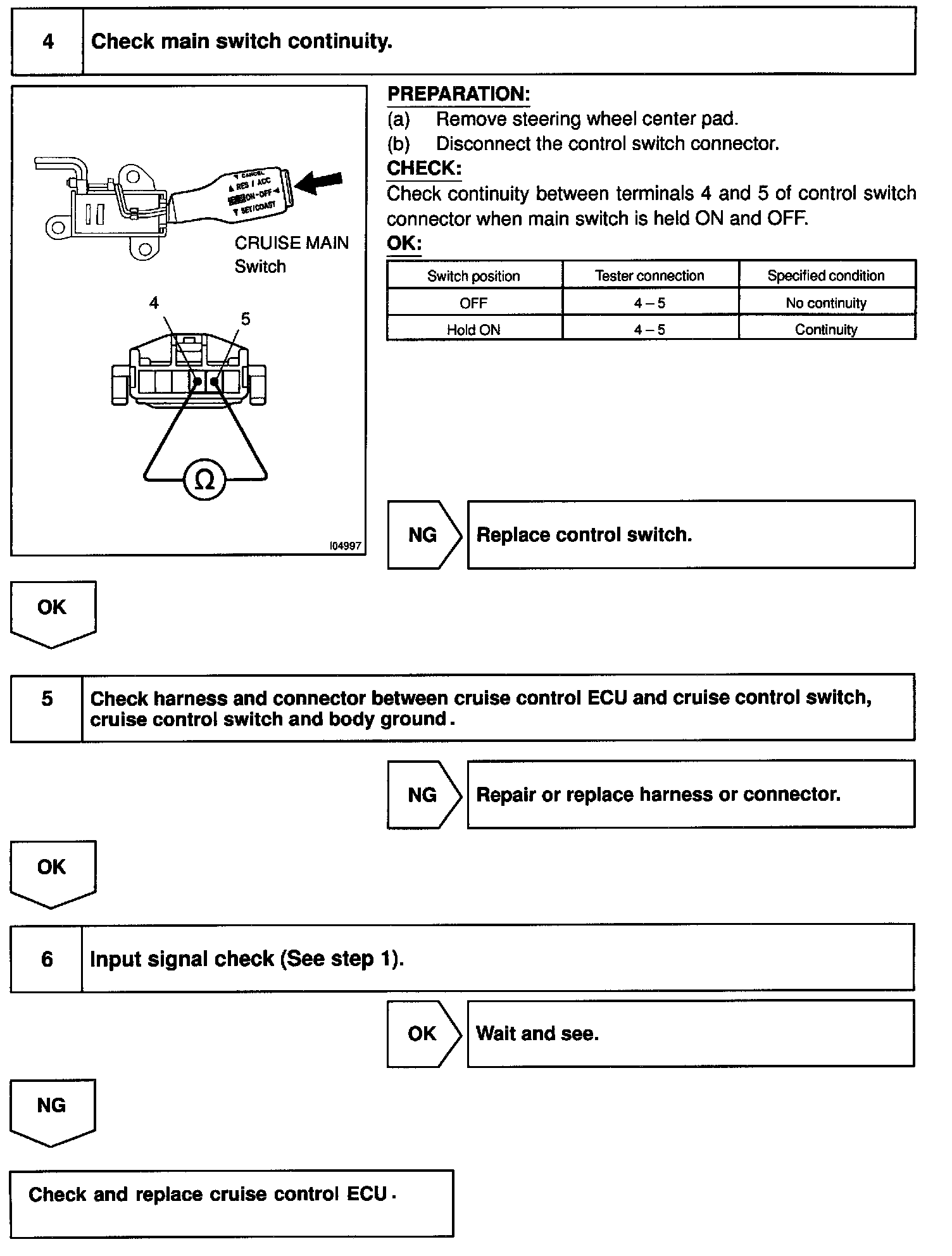

Steps 4 - 6:

INSPECTION PROCEDURE
