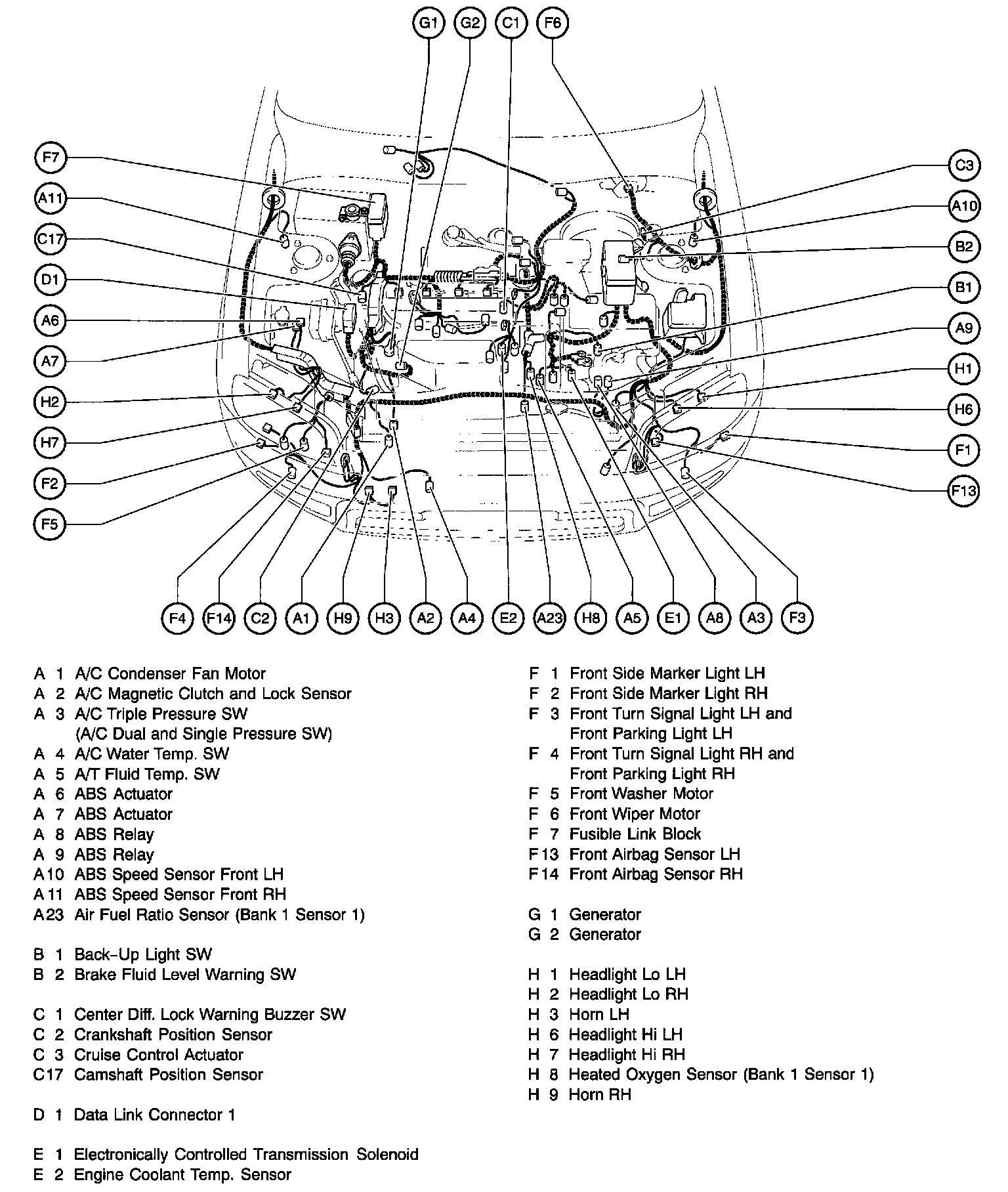

Engine Compartment

A 1 A/C Condenser Fan Motor
A 2 A/C Magnetic Clutch and Lock Sensor
A 3 A/C Triple Pressure SW (A/C Dual and Single Pressure SW)
A 4 A/C Water Temp. SW
A 5 A/T Fluid Temp. SW
A 6 ABS Actuator
A 7 ABS Actuator
A 8 ABS Relay
A 9 ABS Relay
A10 ABS Speed Sensor Front LH
A11 ABS Speed Sensor Front RH
A23 Air Fuel Ratio Sensor (Bank 1 Sensor 1)

B 1 Back-Up Light SW
B 2 Brake Fluid Level Warning SW

C 1 Center Diff. Lock Warning Buzzer SW
C 2 Crankshaft Position Sensor
C 3 Cruise Control Actuator
C17 Camshaft Position Sensor

D 1 Data Link Connector 1

E 1 Electronically Controlled Transmission Solenoid
E 2 Engine Coolant Temp. Sensor

F 1 Front Side Marker Light LH
F 2 Front Side Marker Light RH
F 3 Front Turn Signal Light LH and Front Parking Light LH
F 4 Front Turn Signal Light RH and Front Parking Light RH
F 5 Front Washer Motor
F 6 Front Wiper Motor
F 7 Fusible Link Block
F13 Front Airbag Sensor LH
F14 Front Airbag Sensor RH

G 1 Generator
G 2 Generator

H 1 Headlight Lo LH
H 2 Headlight Lo RH
H 3 Horn LH
H 6 Headlight Hi LH
H 7 Headlight Hi RH
H 8 Heated Oxygen Sensor (Bank 1 Sensor 1)
H 9 Horn RH

I 1 Idle Air Control Valve
I 5 Injector No.1
I 6 Injector No.2
I 7 Injector No.3
I 8 Injector No.4
I 9 Intake Air Temp. Sensor
I12 Ignition Coil and Igniter No.1
I13 Ignition Coil and Igniter No.2

K 1 Knock Sensor

M 1 Manifold Absolute Pressure Sensor

N 1 Noise Filter (Ignition System)

O 1 Oil Pressure SW

P 1 Park/Neutral Position SW

R 1 Radiator Fan Motor
R 2 Rear Washer Motor

S 1 Solenoid Valve SLD
S 2 Starter
S 3 Starter

T 1 Throttle Position Sensor

V 1 Vapor Pressure Sensor
V 2 Vehicle Speed Sensor (Combination Meter)
V 3 Vehicle Speed Sensor (Front)
V 4 Vehicle Speed Sensor (Rear)
V 5 VSV (Center Diff. Lock No.1)
V 6 VSV (Center Diff. Lock No.2)
V 7 VSV (EGR)
V 8 VSV (EVAP)
V 9 VSV (Vapor Pressure Sensor)

W 1 Water Temp. Sender
W 2 Washer Level Sensor
