Symptom Related Diagnostic Procedures

Headlight And Taillight System

Headlight And Taillight System / USA:

Headlight And Taillight System / CANADA (Part 1 Of 2):

Headlight And Taillight System / CANADA (Part 2 Of 2):

Light-ON Warning System:

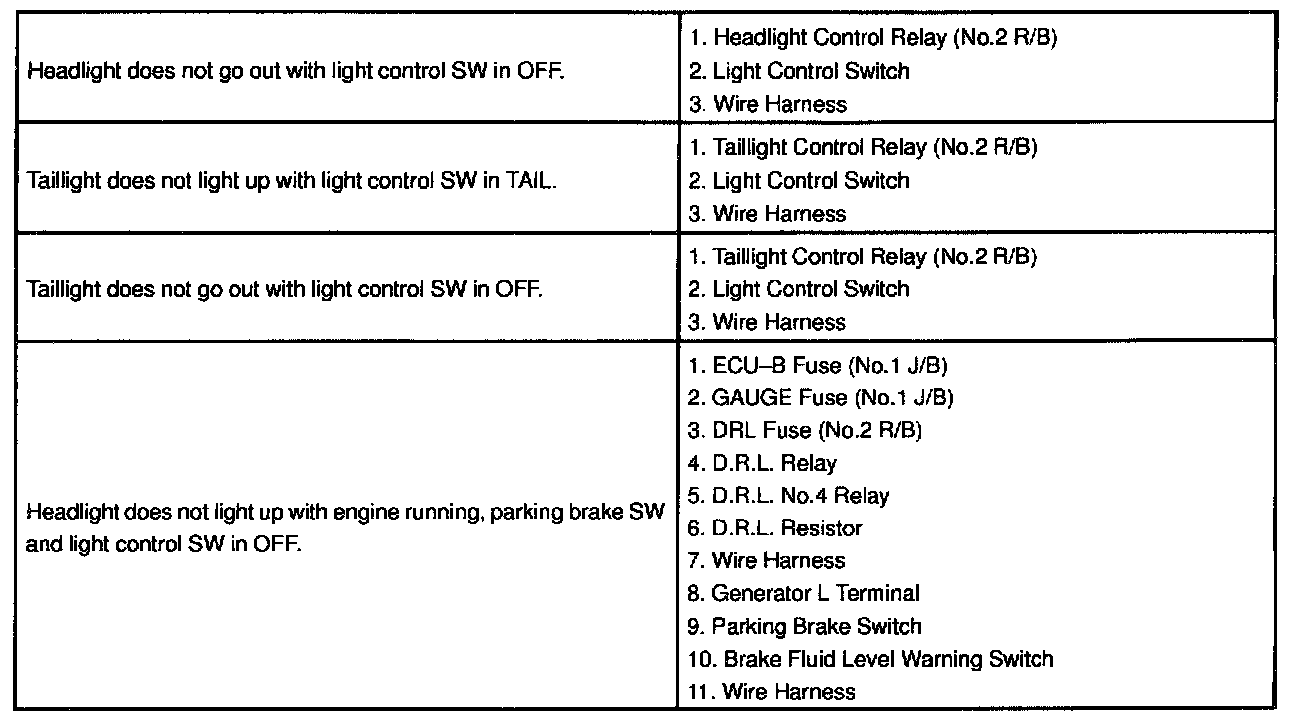

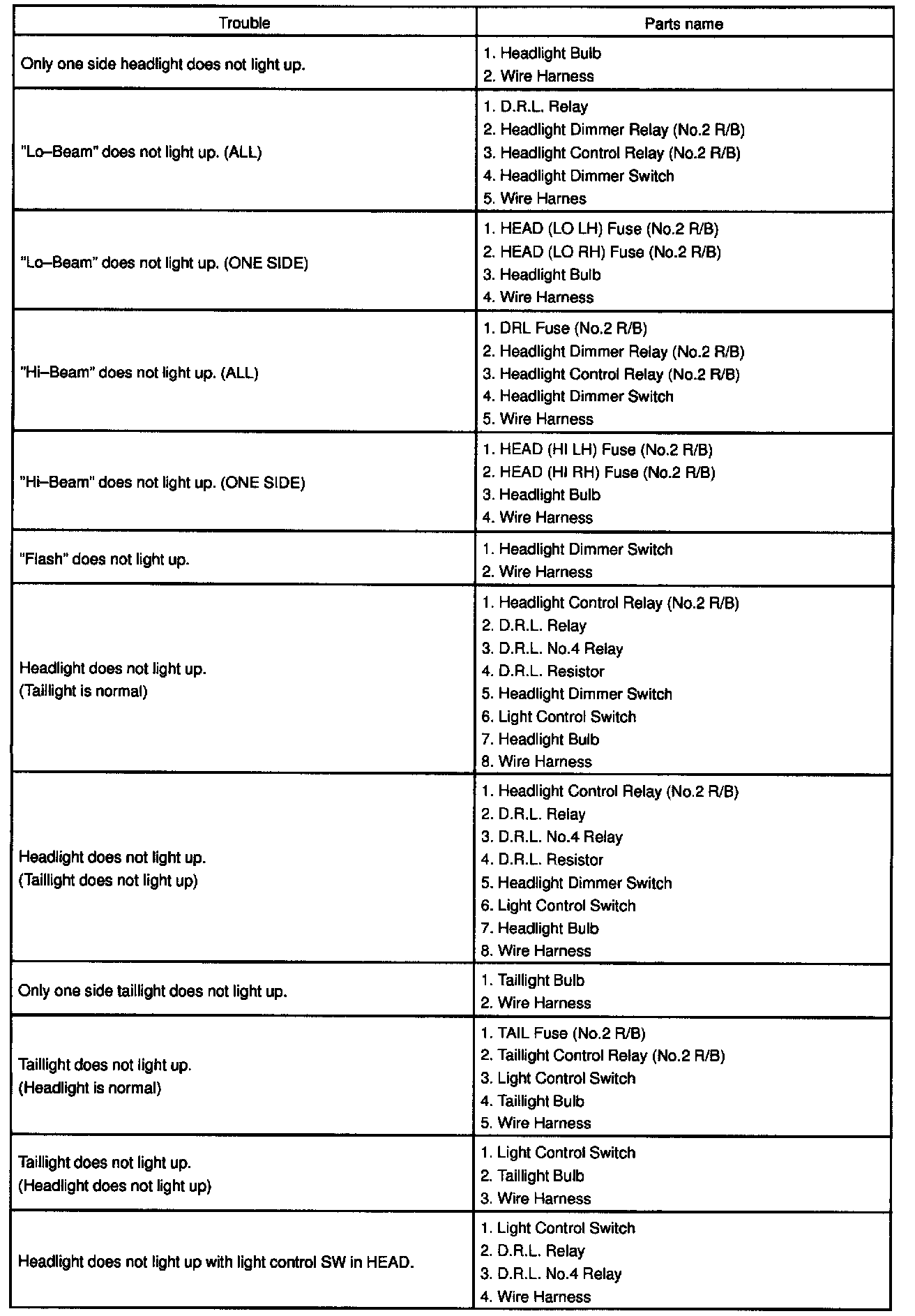

HINT: The tables will be useful for you in troubleshooting these electrical problems. The most likely causes of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and replace the part when it is found to be faulty.
