Connecting Rod Bearing

Connecting Rod Bearing

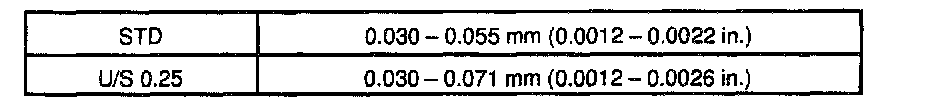

Standard oil clearance

Maximum oil clearance: 0.10 mm (0.0039 inch)
If the oil clearance is greater than maximum, replace the bearings. If necessary, grind or replace the crankshaft.

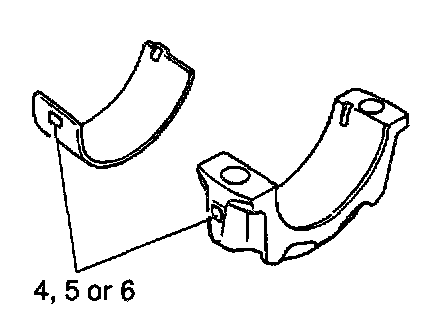

HINT: If using a standard bearing, replace with one having the same number as marked on the bearing cap. There are 3 sizes of standard bearings, marked "4", "5" and "6" accordingly.

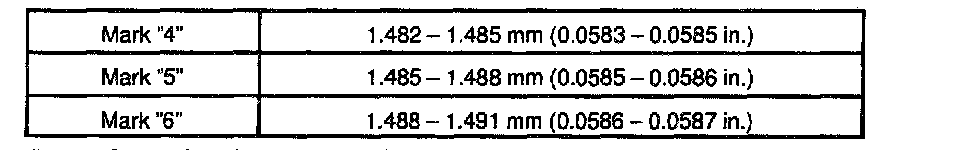

Reference - Standard Sized Bearing Center Wall Thickness
