Power Source Circuit

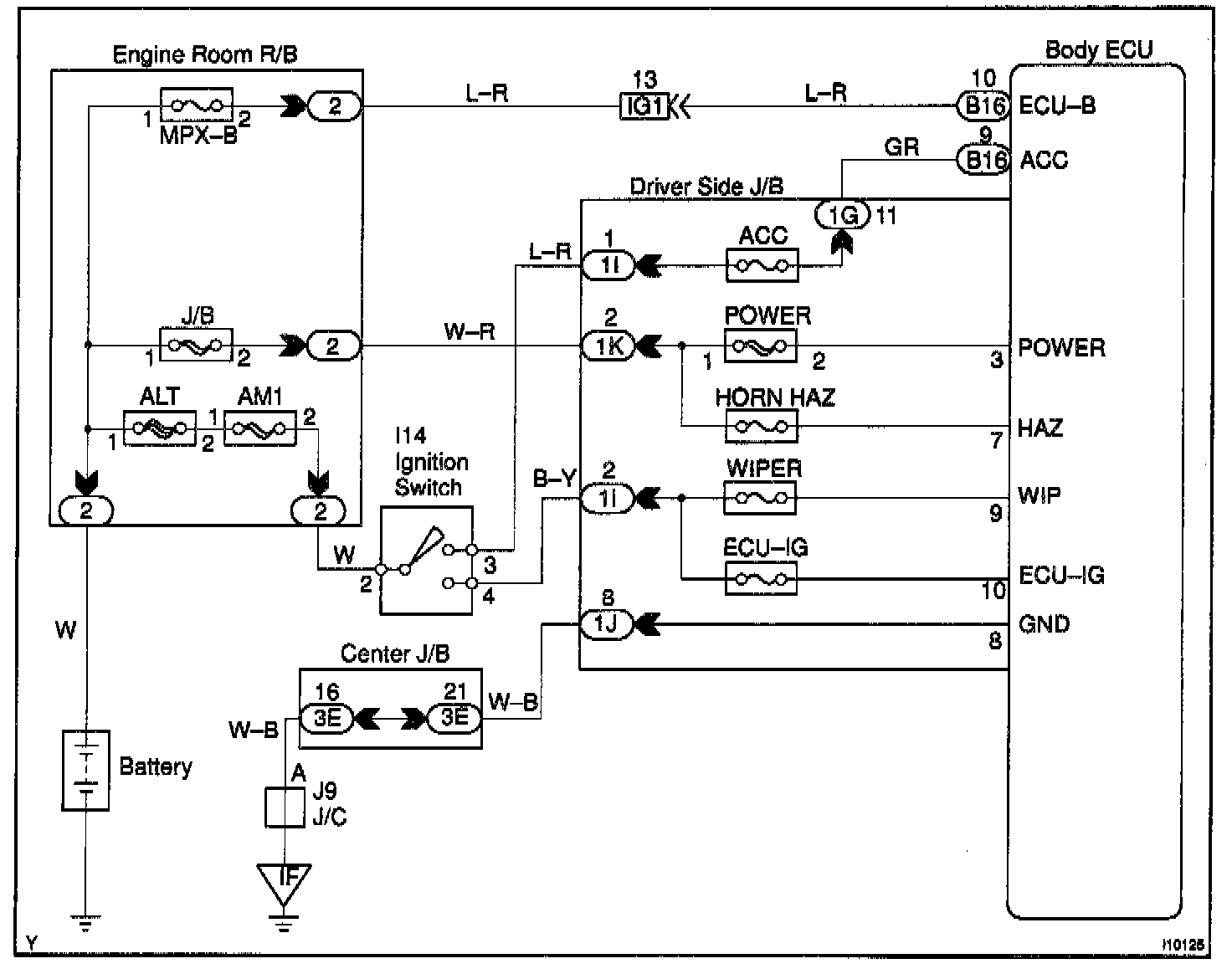

Wiring Diagram:
CIRCUIT DESCRIPTION
This circuit provides power to operate the body ECU.
Step 2:

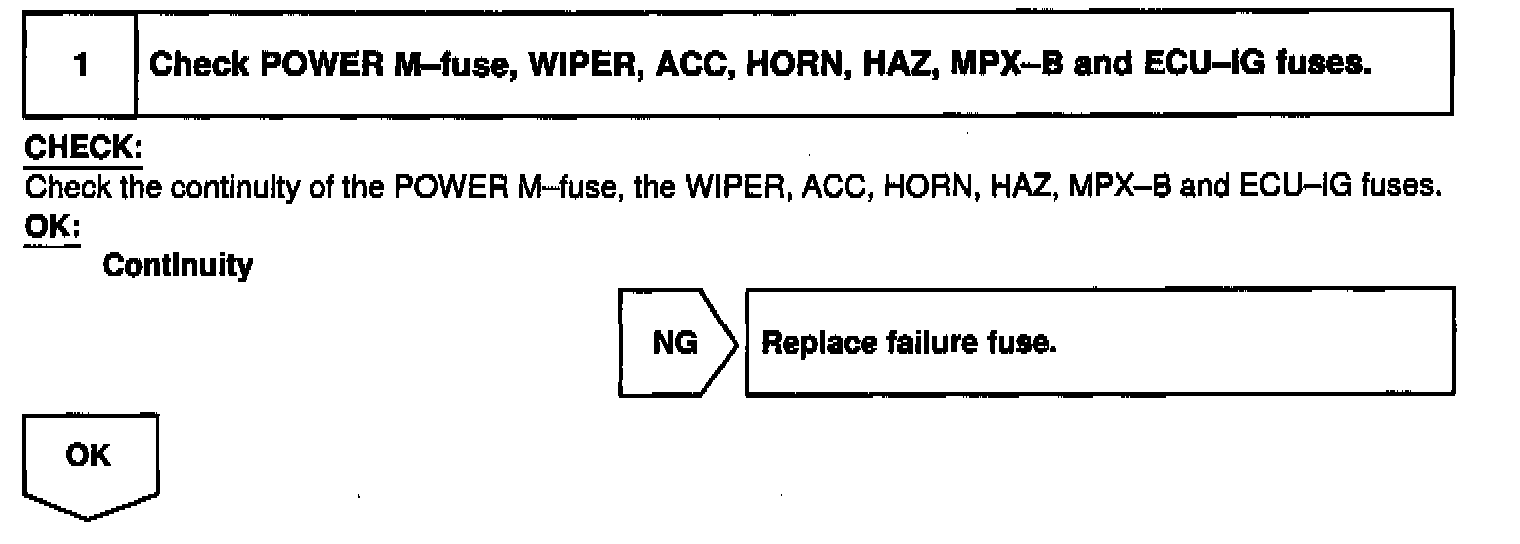

Step 1:

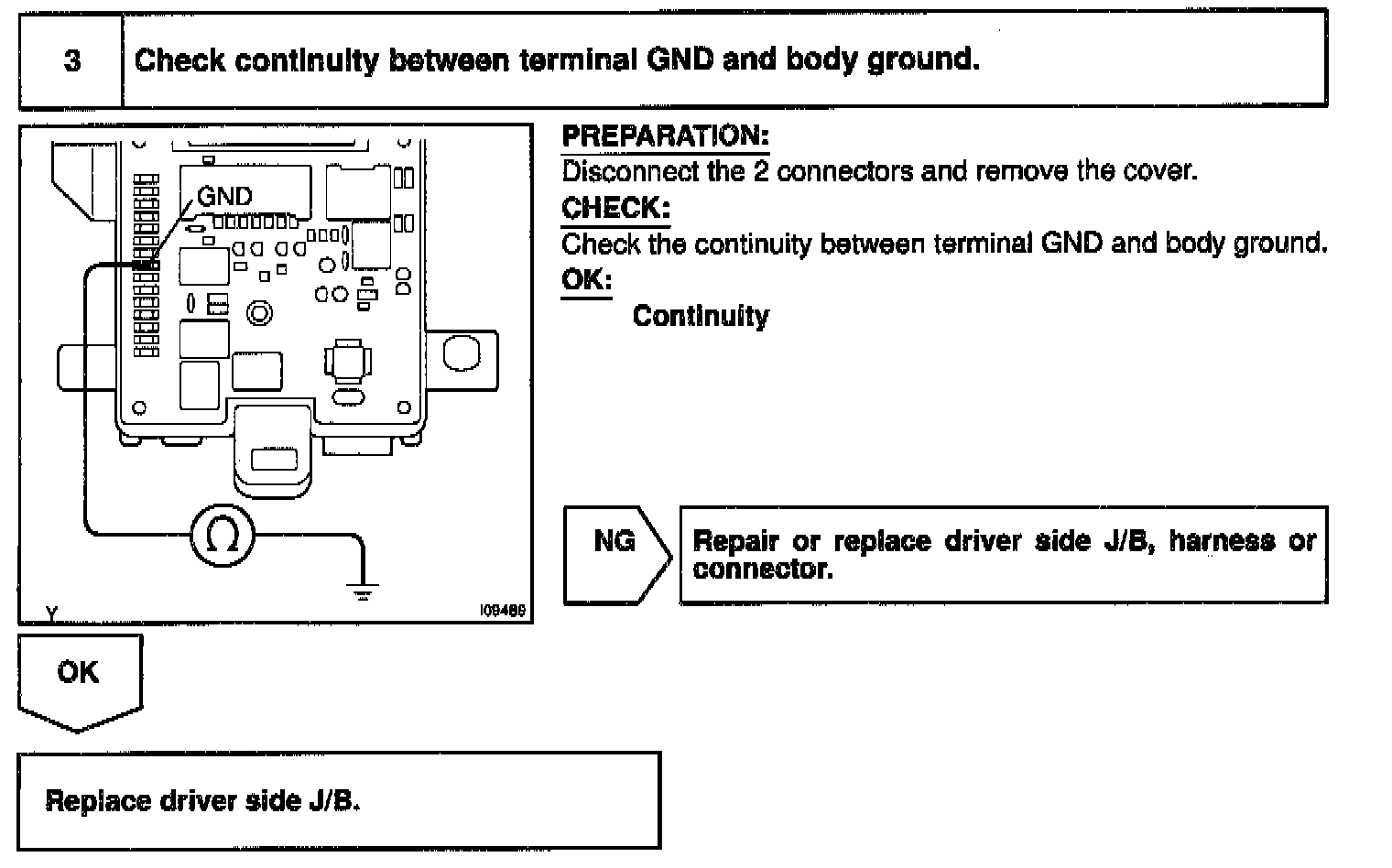

Step 3:
INSPECTION PROCEDURE
