ECM Power Source Circuit

CIRCUIT DESCRIPTION

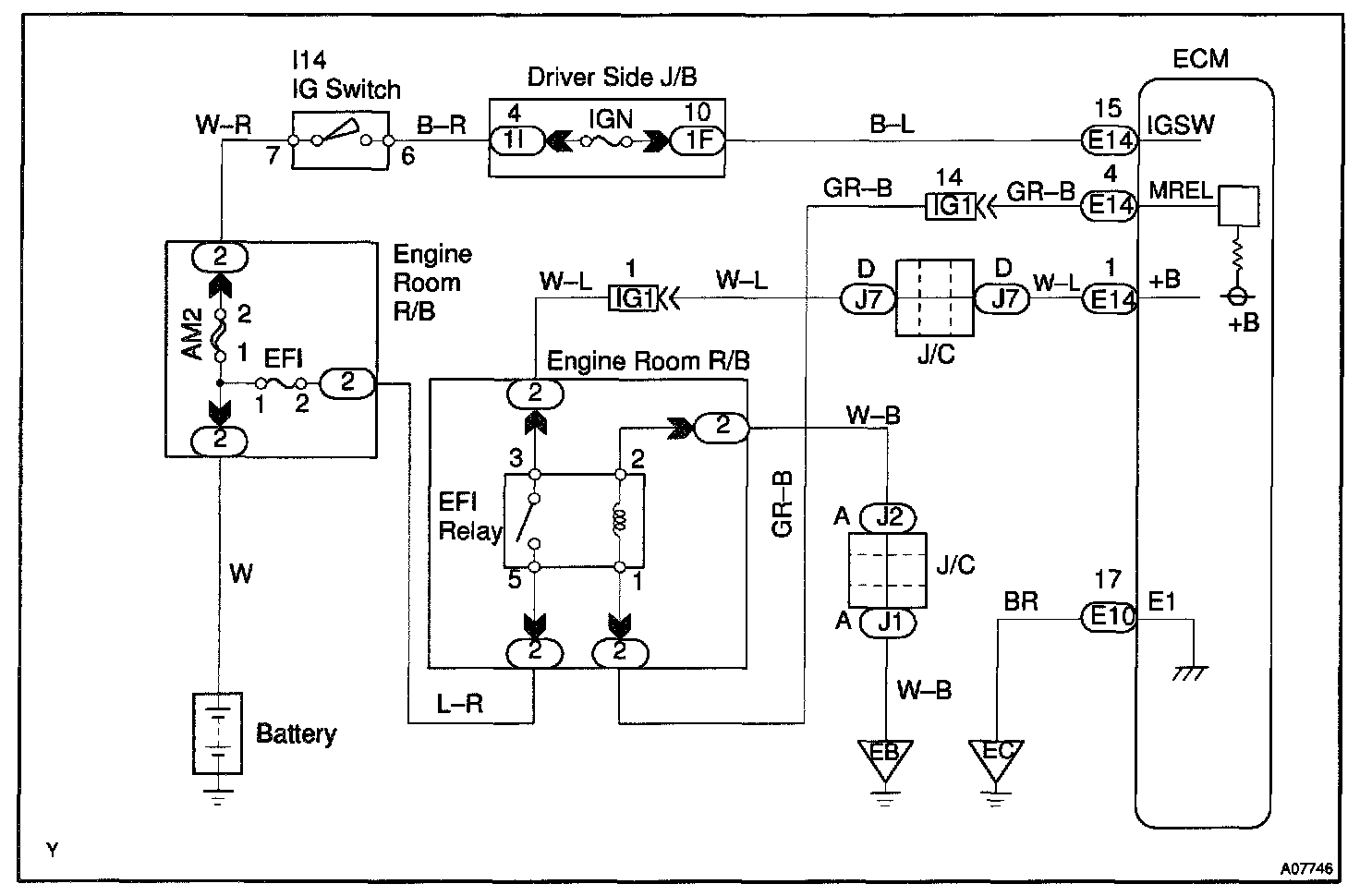

Wiring Diagram:

When the ignition switch is turned ON, battery positive voltage is applied to the coil, closing the contacts of the EFI main relay (Marking: EFI) and supplying power to terminal +B of the ECM.

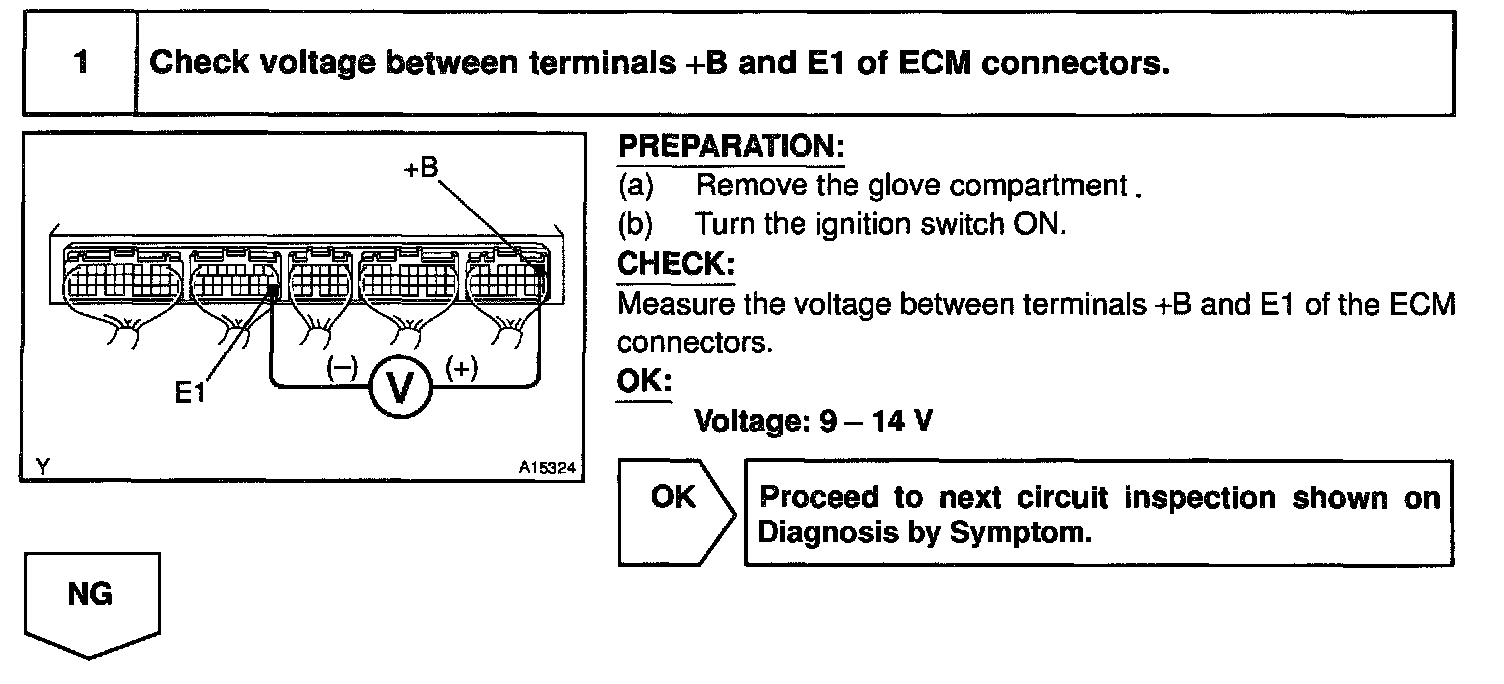

Step 1:

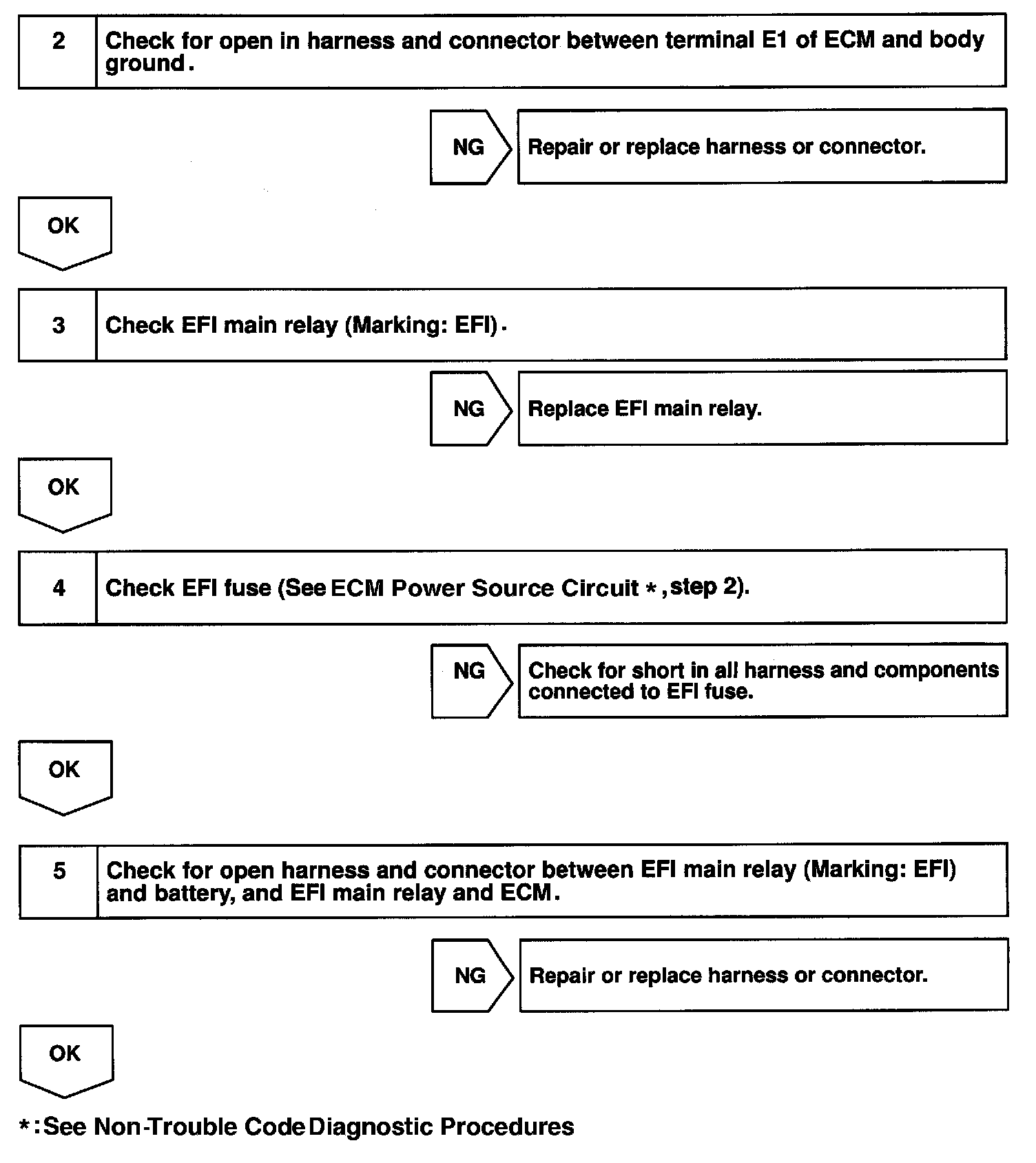

Steps 2 - 5:

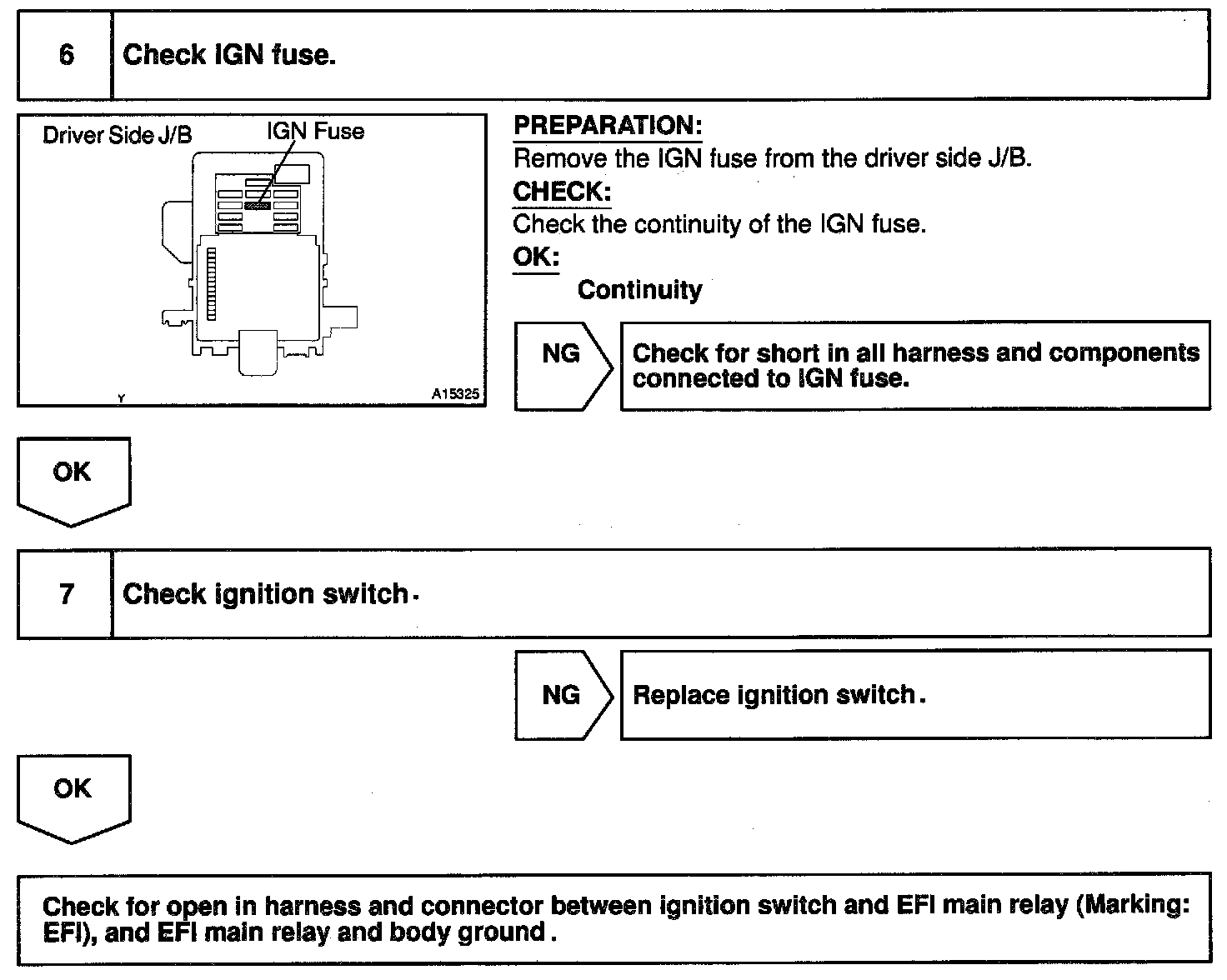

Steps 6 - 7:

INSPECTION PROCEDURE
