Clearing Trouble Codes

NOTE: This is the only information provided by the manufacturer for clearing diagnostic trouble codes for this system.

CLEAR THE DTC.




In case of not using the TOYOTA hand-held tester:

1. Using SST, connect terminals Tc and E1 of DLC1.
SST 09843-18020
2. Turn the ignition switch ON.

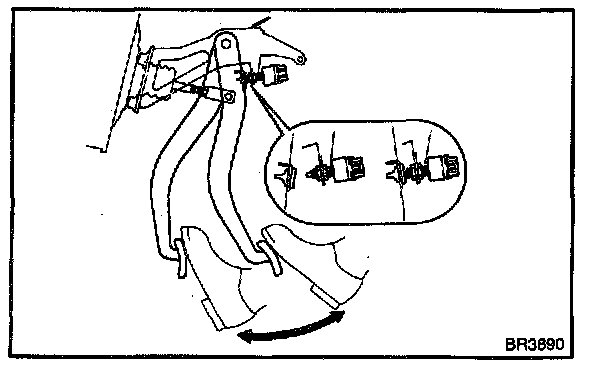

3. Clear the DTC stored in ECU by depressing the brake pedal 8 times or more within 5 sec.
4. Check that the warning light shows the normal code blinking pattern.




In case of using the TOYOTA hand-held tester:
1. Hook up the TOYOTA hand-held tester to DLC3.
2. Turn the ignition switch ON.
3. Operate the TOYOTA hand-held tester to erase the codes.

HINT: Please refer to the TOYOTA hand-held tester operator's manual for further details.
