Speed Sensor, Rear

REMOVAL

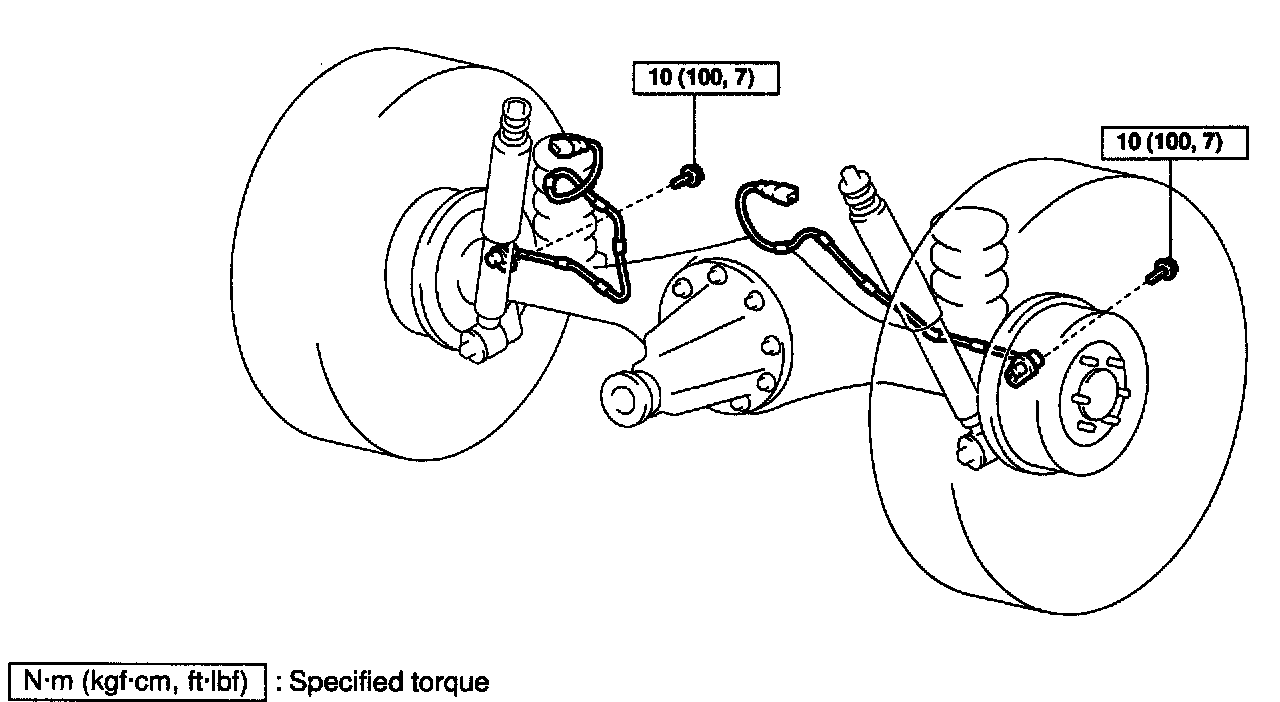

REMOVE SPEED SENSOR
a. Disconnect the speed sensor connector, and pull out the sensor wire harness with grommet.
b. Remove the 5 resin clips, holding the sensor wire harness from the frame, upper control arm and axle housing.





c. Remove the mounting bolt and speed sensor.
Torque: 10 Nm (100 kgf-cm, 7 ft. lbs.)

INSTALLATION
Installation is in the reverse order of removal.

NOTICE: Make sure that
- There are no foreign objects on the sensor or the part of the knuckle to which the sensor is to be installed.
- The sensor is installed flat against the knuckle when you tighten the bolt.

HINT: After installation, check the speed sensor signal
