Harness Locations

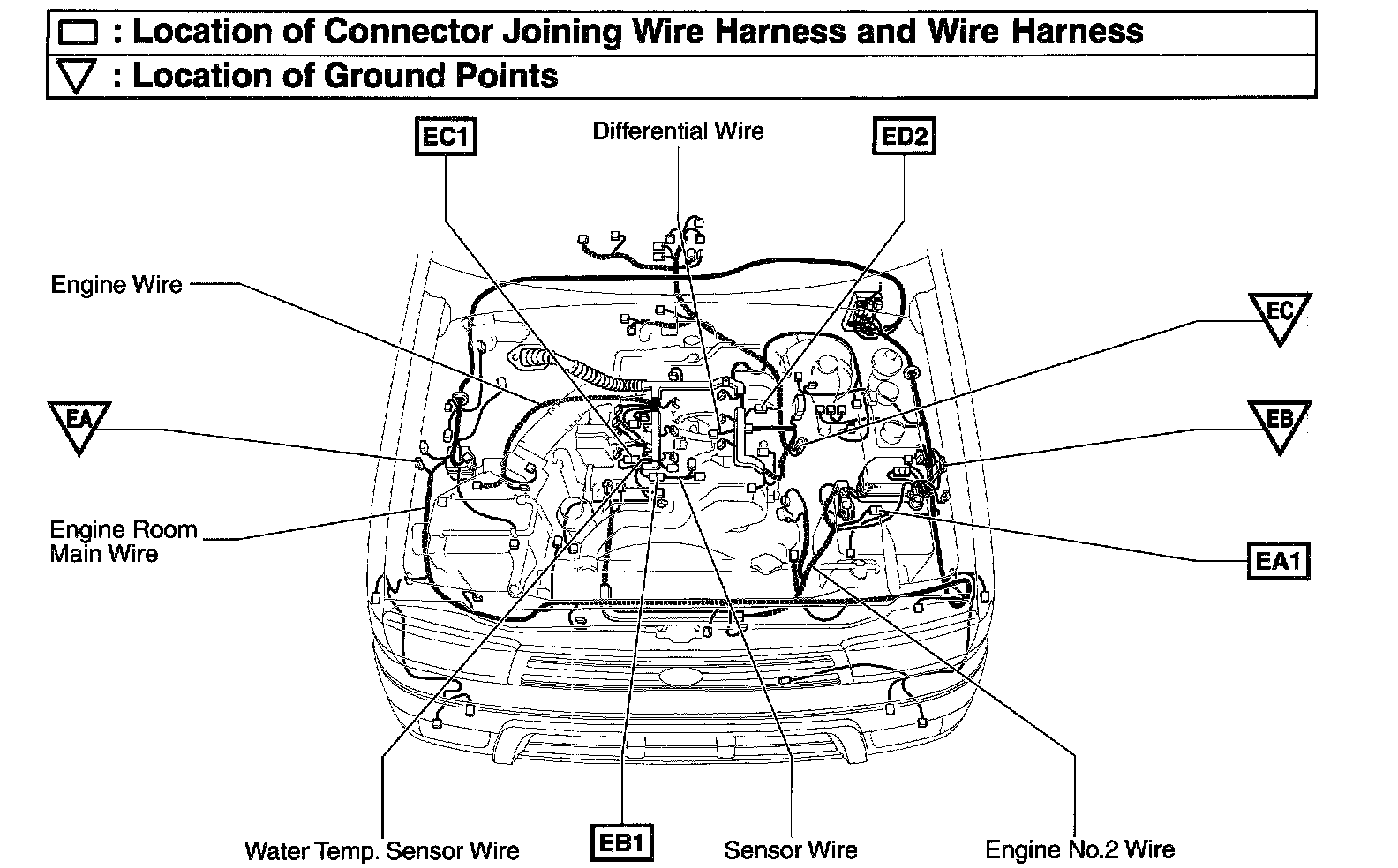

Engine Compartment:

Connector Location
EA1 Engine NO. 2 Wire and Engine Room Main Wire (Near the Engine Room R/B)
EB1 Sensor Wire and Engine Wire (Front Side of Cylinder Head Cover Right)
EC1 Engine Wire and Water Temp. Sensor Wire (Front Side of Cylinder Head Cover Right)
ED1 Engine Wire and Differential Wire (Near the Front Differential)

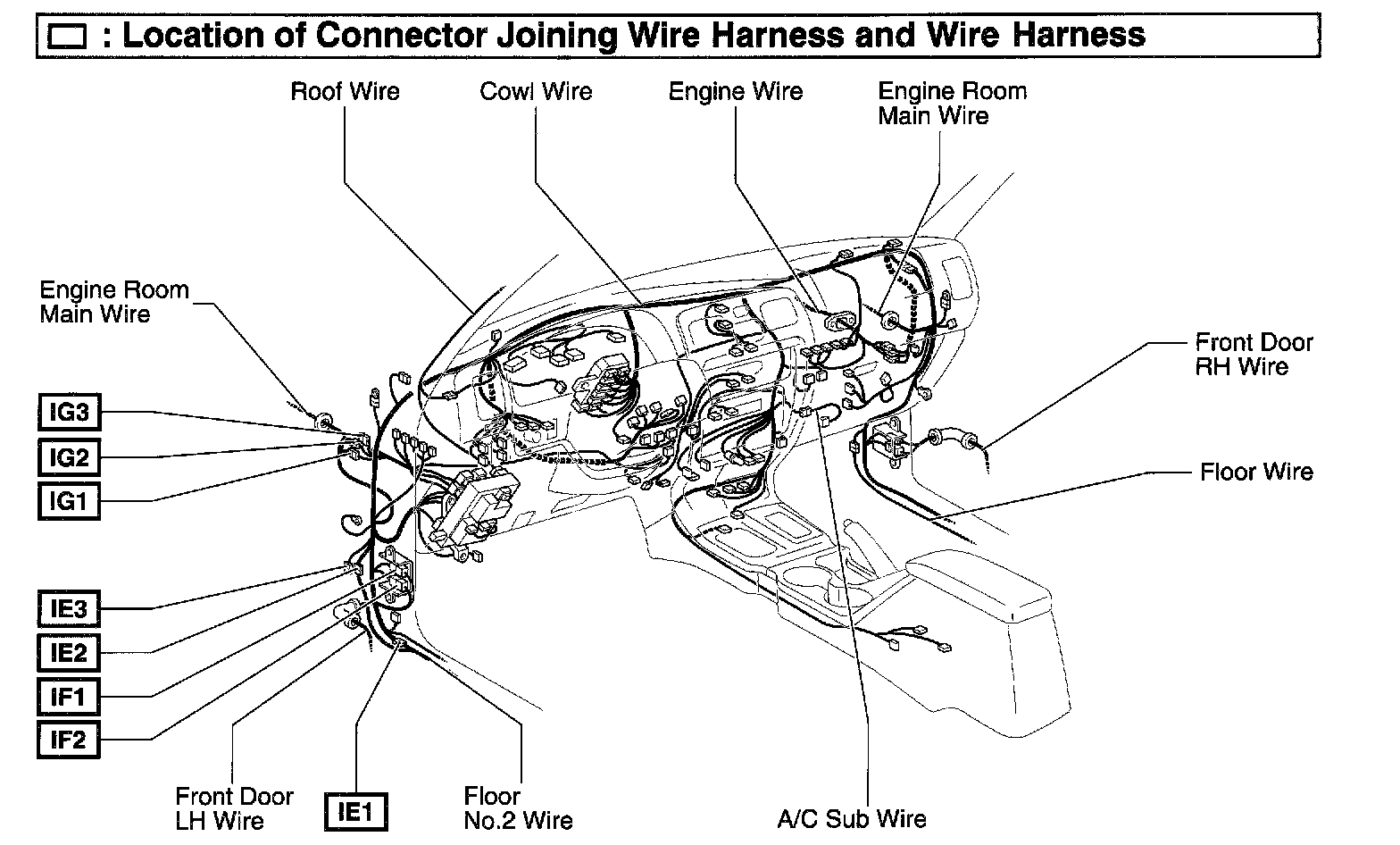

Instrument Panel / Console:

Connector Location
IE1 Cowl Wire and Floor No. 2 Wire (Left Kick Panel)
IE2 Cowl Wire and Floor No. 2 Wire (Left Kick Panel)
IE3 Cowl Wire and Floor No. 2 Wire (Left Kick Panel)
IF1 Front Door LH Wire and Cowl Wire (Left Kick Panel)
IF2 Front Door LH Wire and Cowl Wire (Left Kick Panel)
IG1 Engine Room Main Wire and Cowl Wire (Left Kick Panel)
IG2 Engine Room Main Wire and Cowl Wire (Left Kick Panel)
IG3 Engine Room Main Wire and Cowl Wire (Left Kick Panel)

Instrument Panel / Console:

Connector Location
IH1 Roof Wire and Cowl (Instrument Panel Reinforcement Left)
II1 Engine Wire and Cowl Wire (On the Glove Box)
II2 Engine Wire and Cowl Wire (On the Glove Box)
II4 Engine Wire and Cowl Wire (On the Glove Box)
IJ1 Cowl Wire and A/C Sub Wire (Near the A/c Unit)
IK1 Front Door RH Wire and Cowl Wire (Right Kick Panel)
IL1 Cowl Wire and Floor Wire (Right Kick Panel)

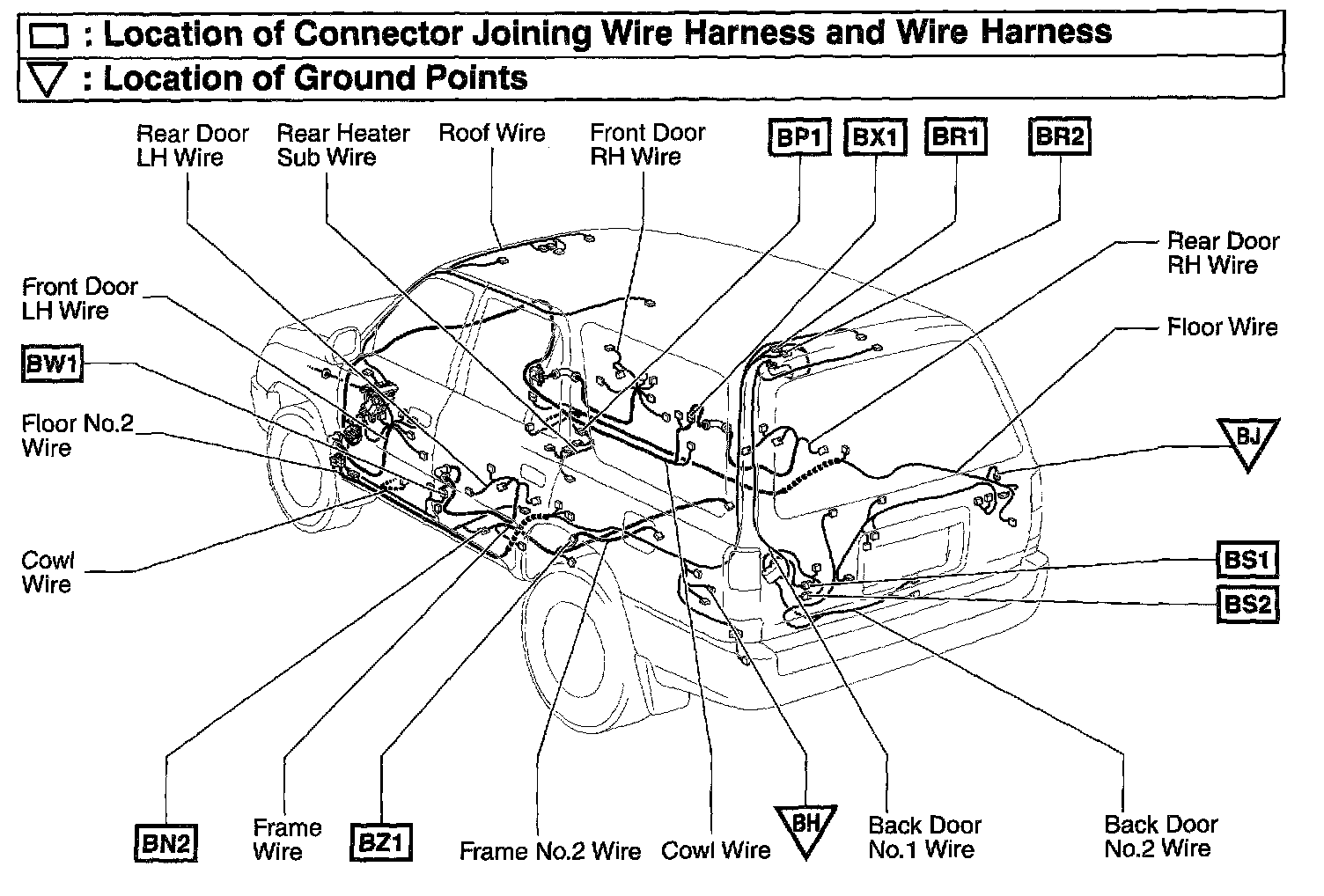

Body:

Connector Location
BN2 Frame Wire and Floor No. 2 Wire (Under the Left Side of Rear Seat Cushion)
BP1 Floor Wire and Rear Heater Sub Wire (Under the Front Passenger's Seat)
BR1 Back Door No. 1 Wire and Floor No. 2 Wire (Left Rear Side of Roof)
BR2 Back Door No. 1 Wire and Floor No. 2 Wire (Left Rear Side of Roof)
BS1 Back Door No. 1 Wire and Back Door No. 2 Wire (Back Door Left)
BS2 Back Door No. 1 Wire and Back Door No. 2 Wire (Back Door Left)
BW1 Rear Door LH Wire and Cowl Wire (Left Center Pillar)
BX1 Rear Door RH Wire and Cowl Wire (Right Center Pillar)
BZ1 Frame Wire and Frame No. 2 Wire (Upper the Rear Axle Housing Left)

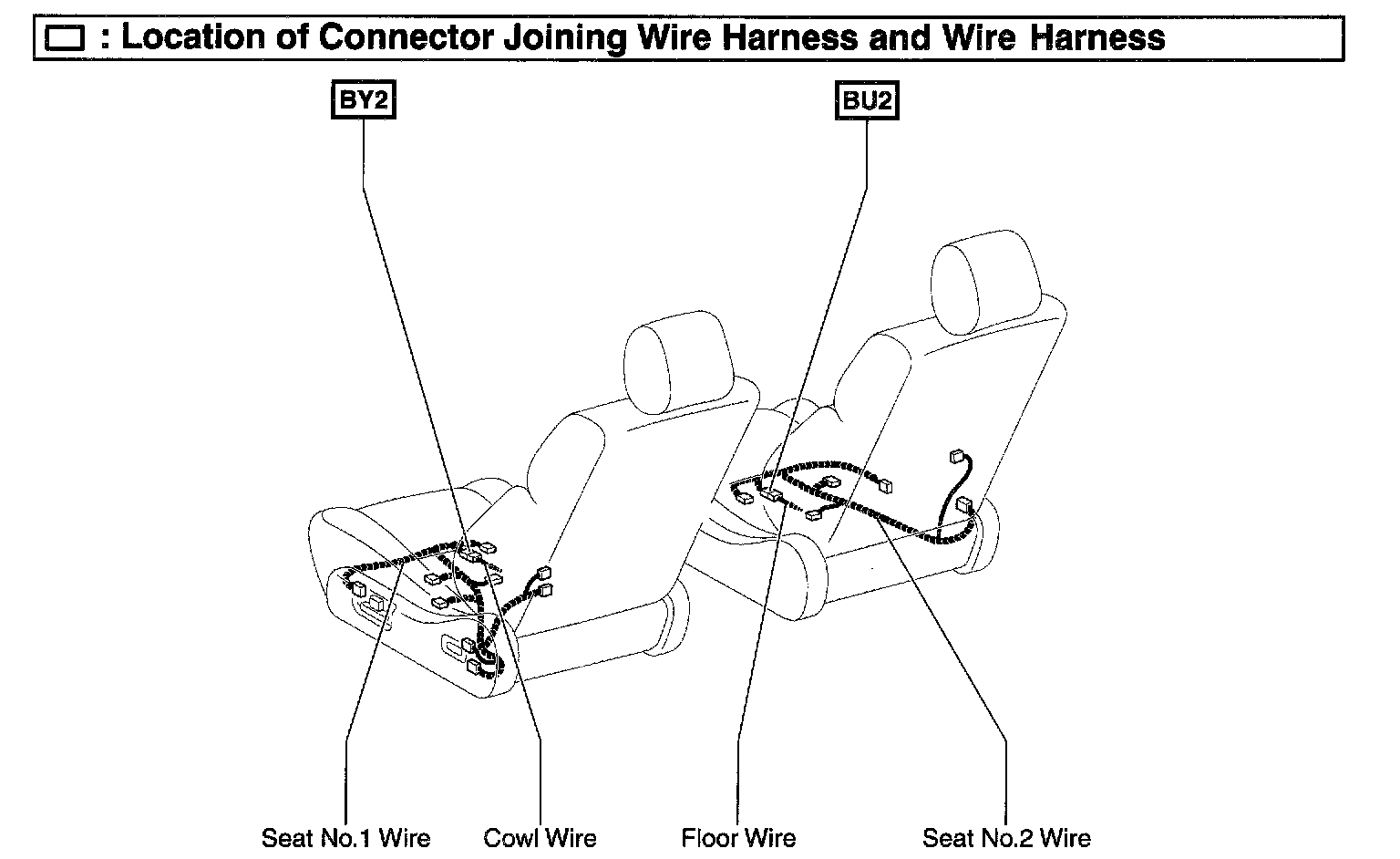

Seat:

Connector Location
BU2 Floor Wire and Seat No. 2 Wire (Under the Front Passenger's Seat)
BY2 Cowl Wire and Seat No. 1 Wire (Under the Driver's Seat)
