Exploded Views

COMPONENT PARTS

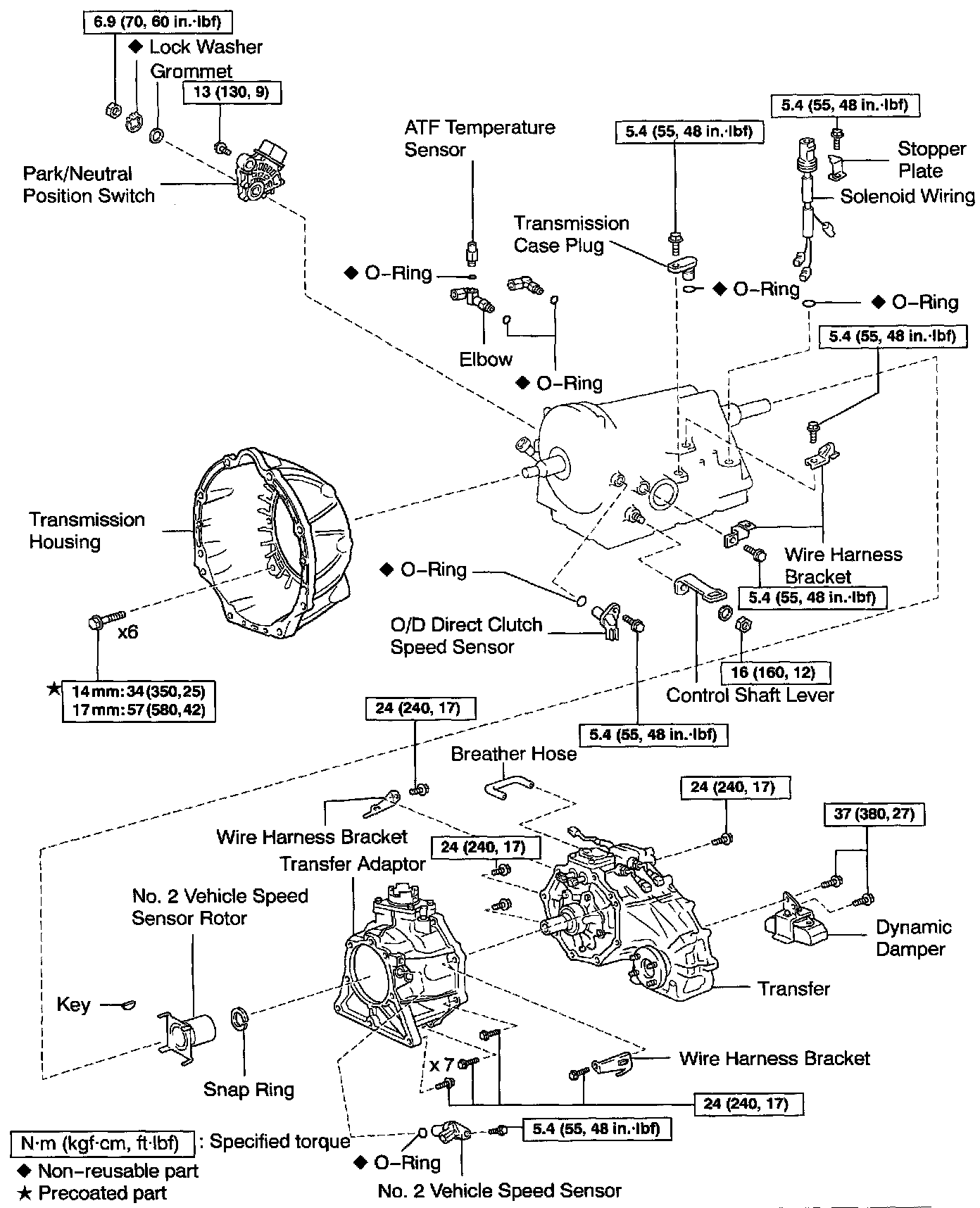

Part 1 of 3

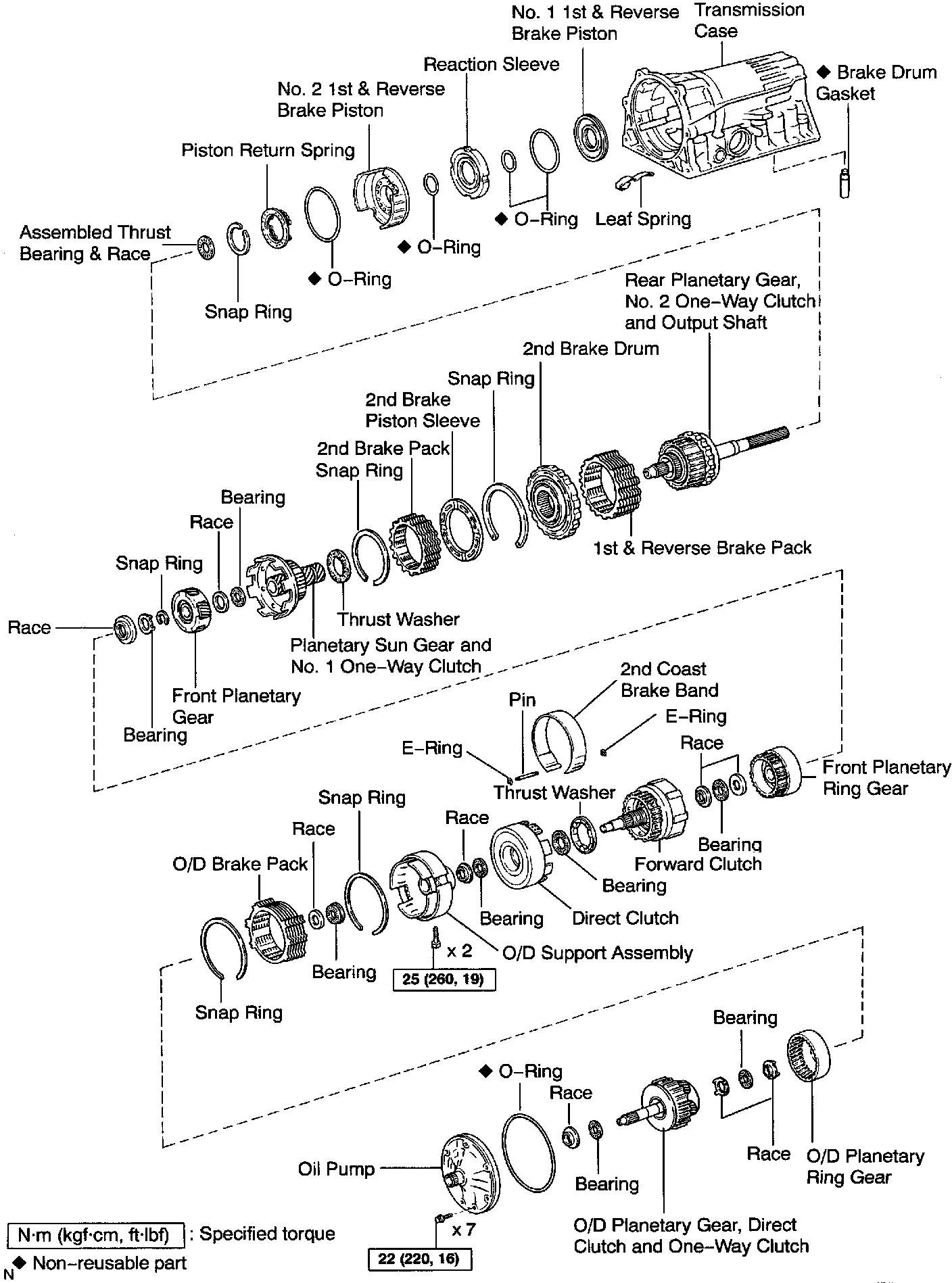

Part 2 of 3

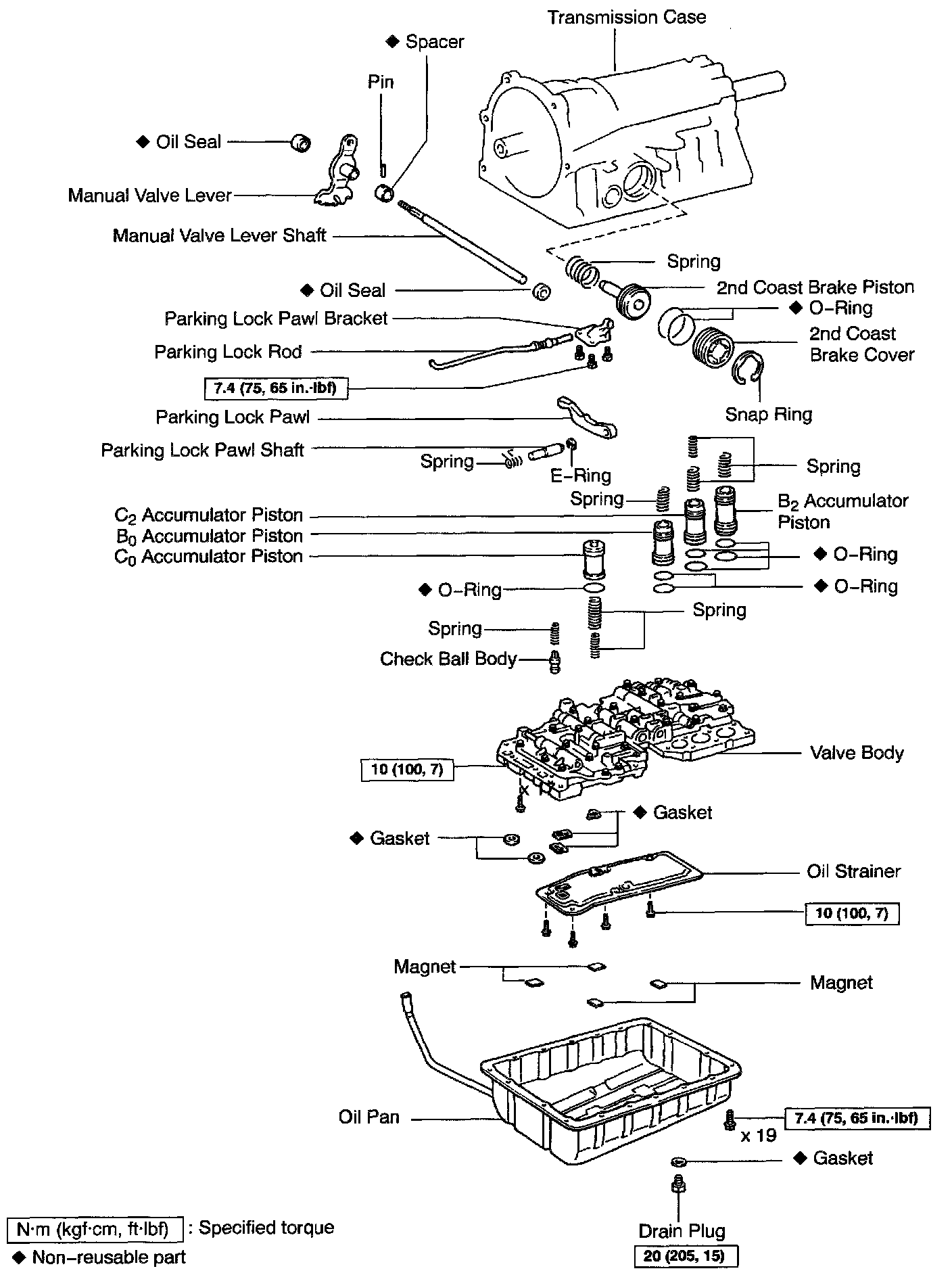

Part 3 of 3

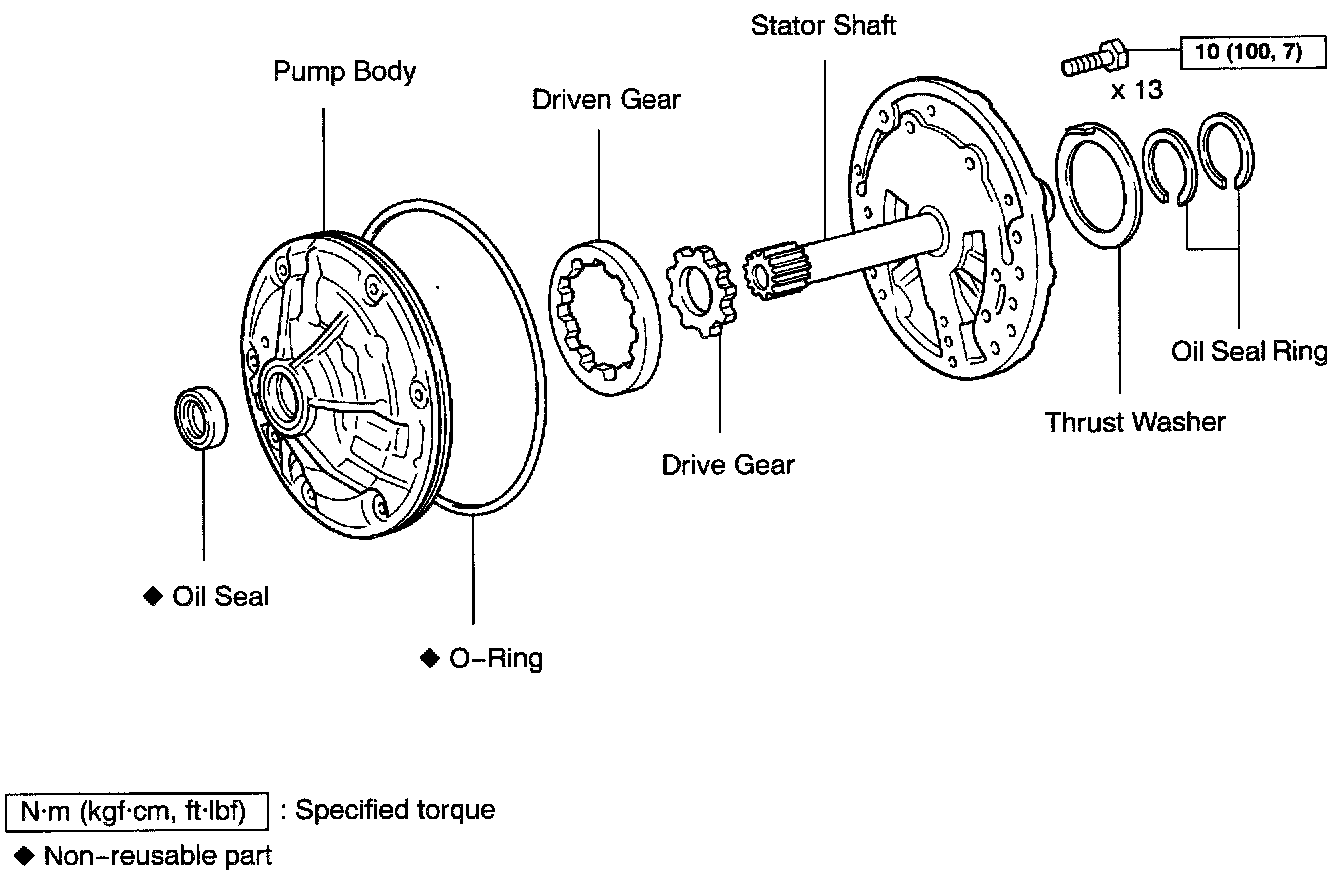

OIL PUMP

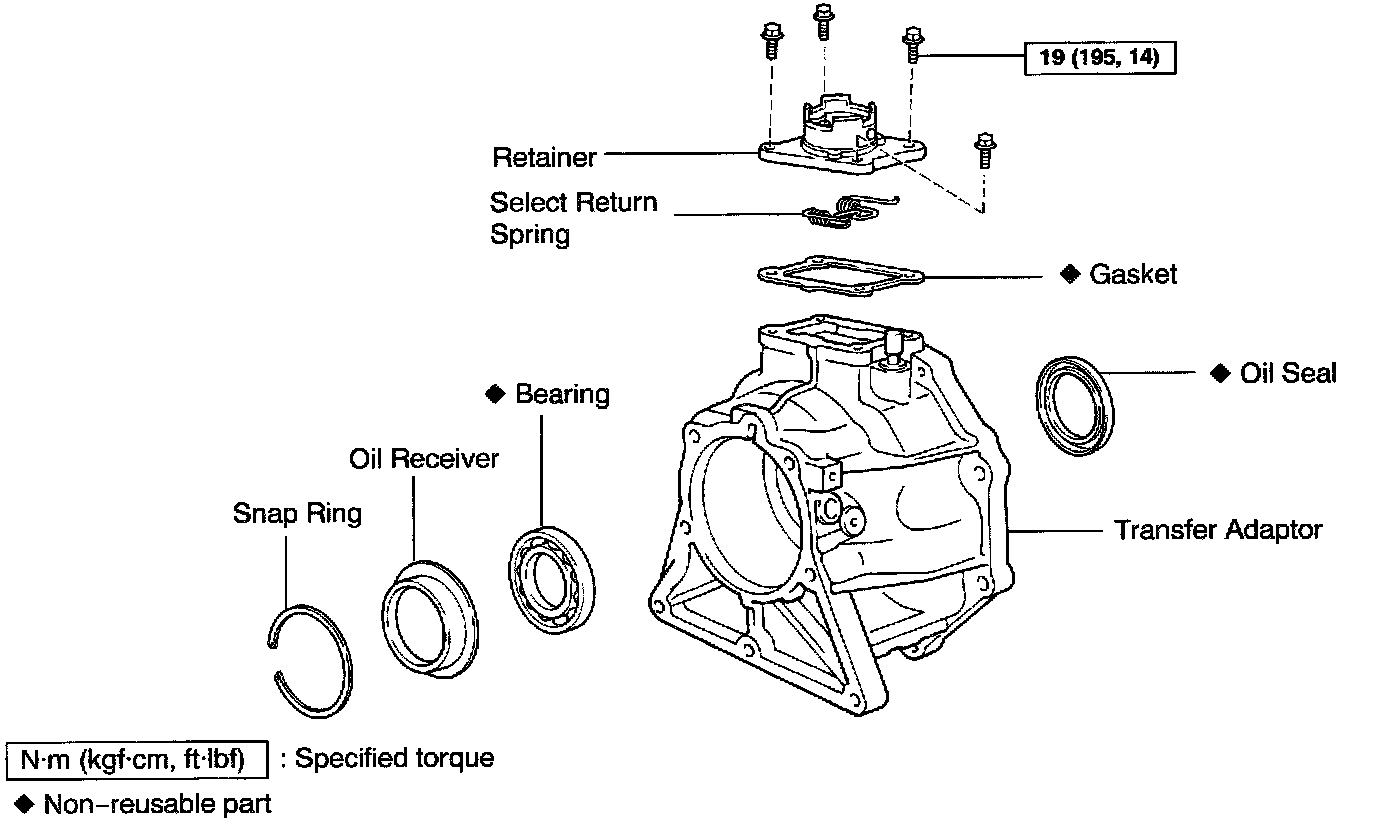

TRANSFER ADAPTOR

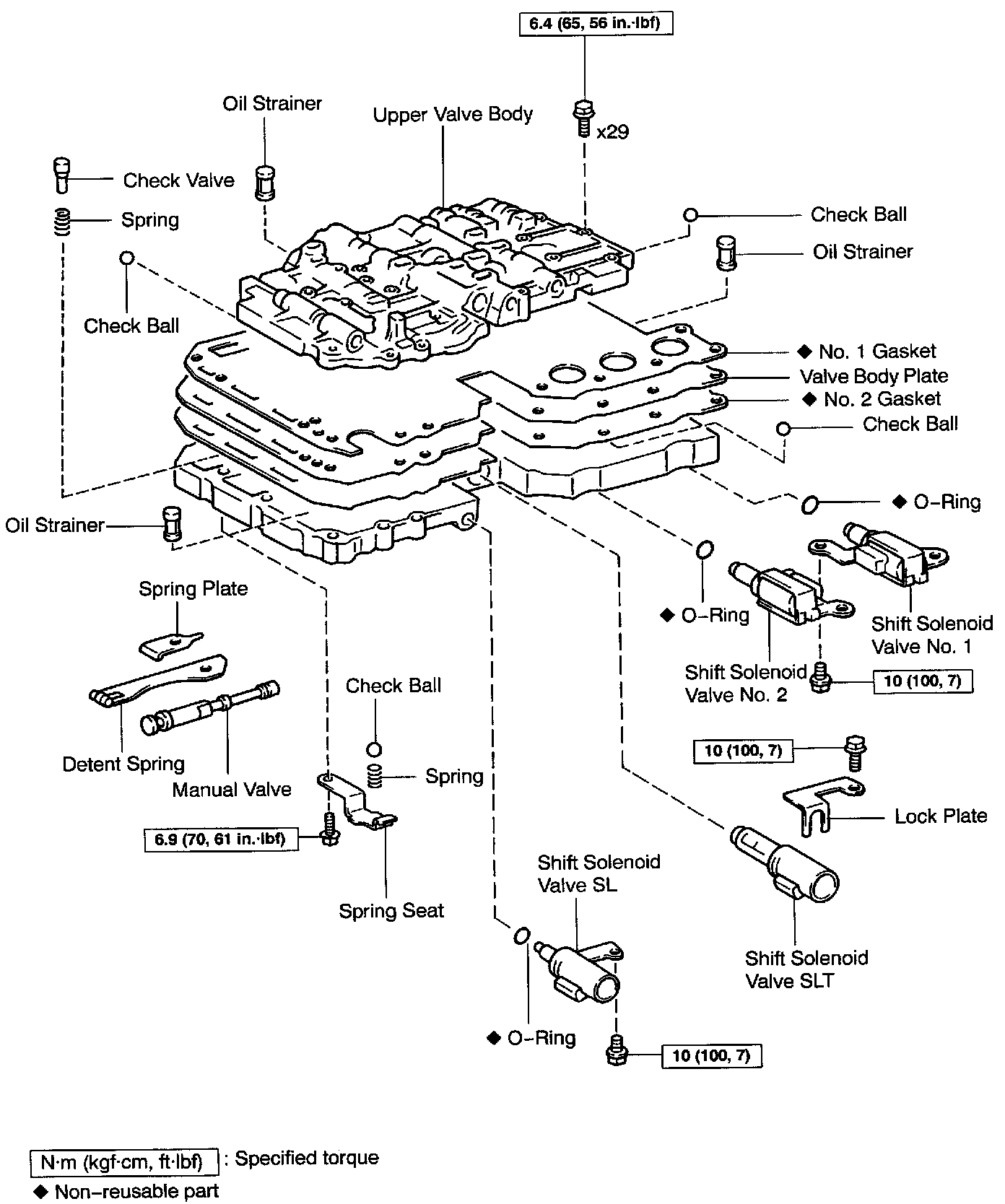

VALVE BODY

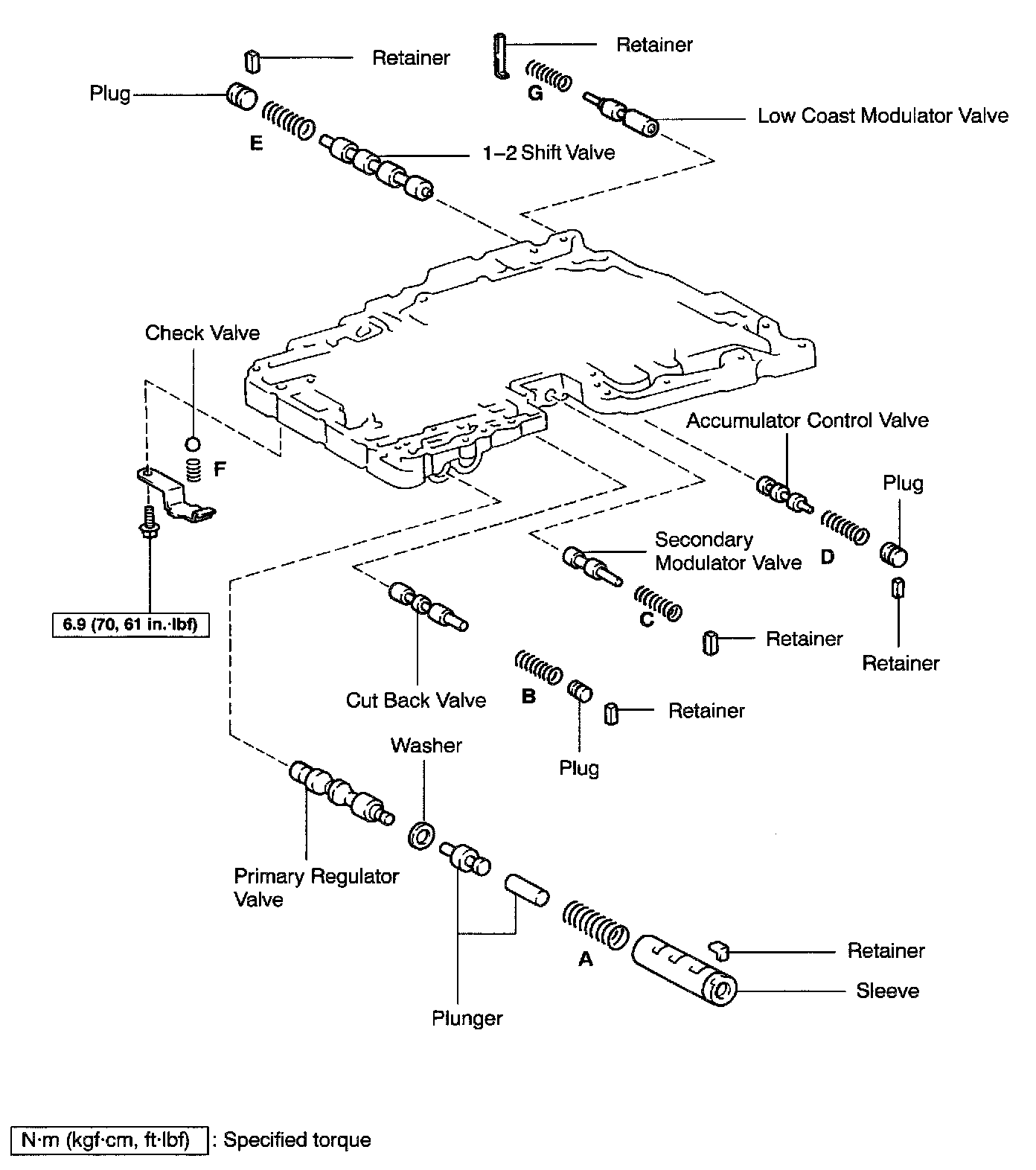

LOWER VALVE BODY
