Connector Code Lists

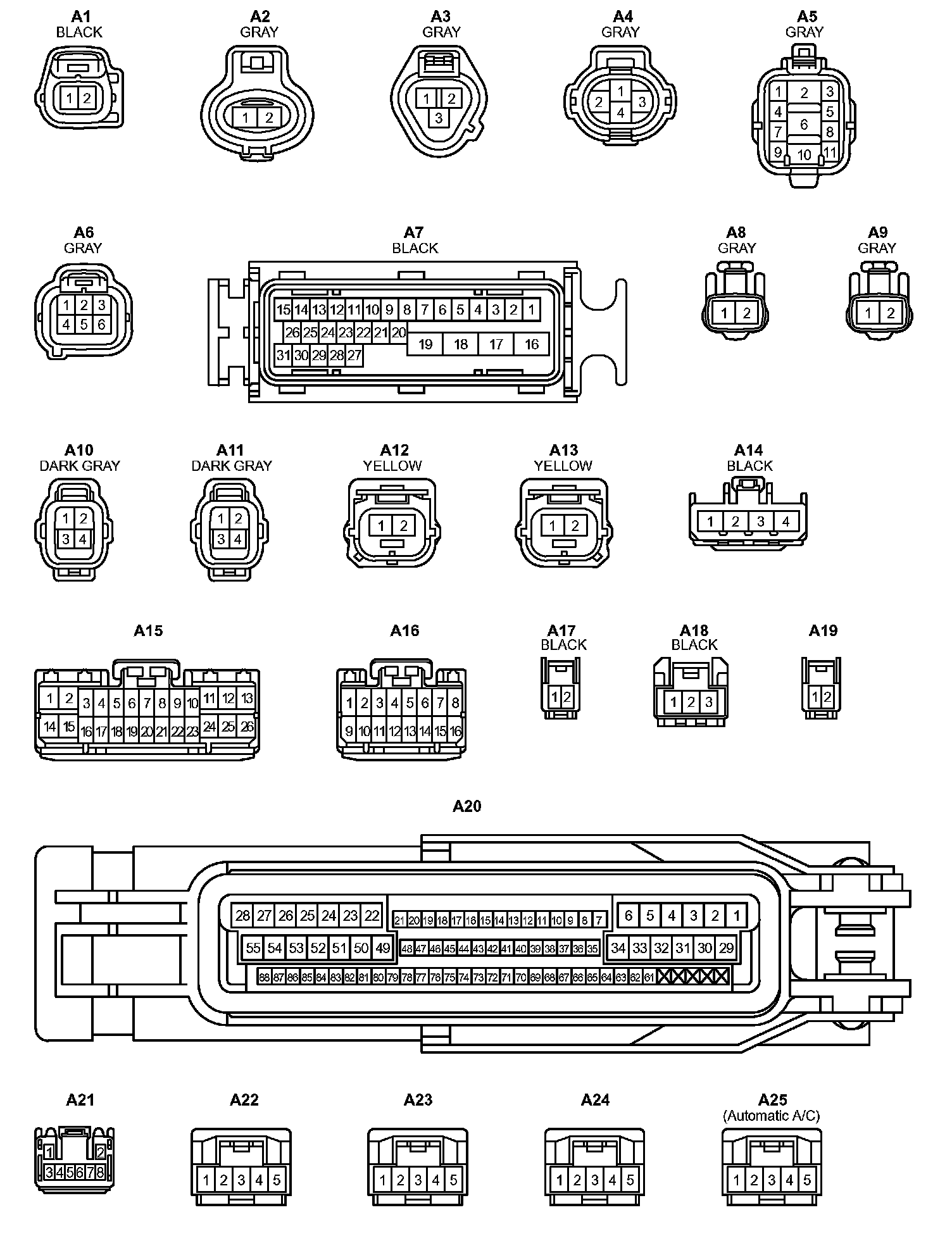

Connector Views (A1 - A25):

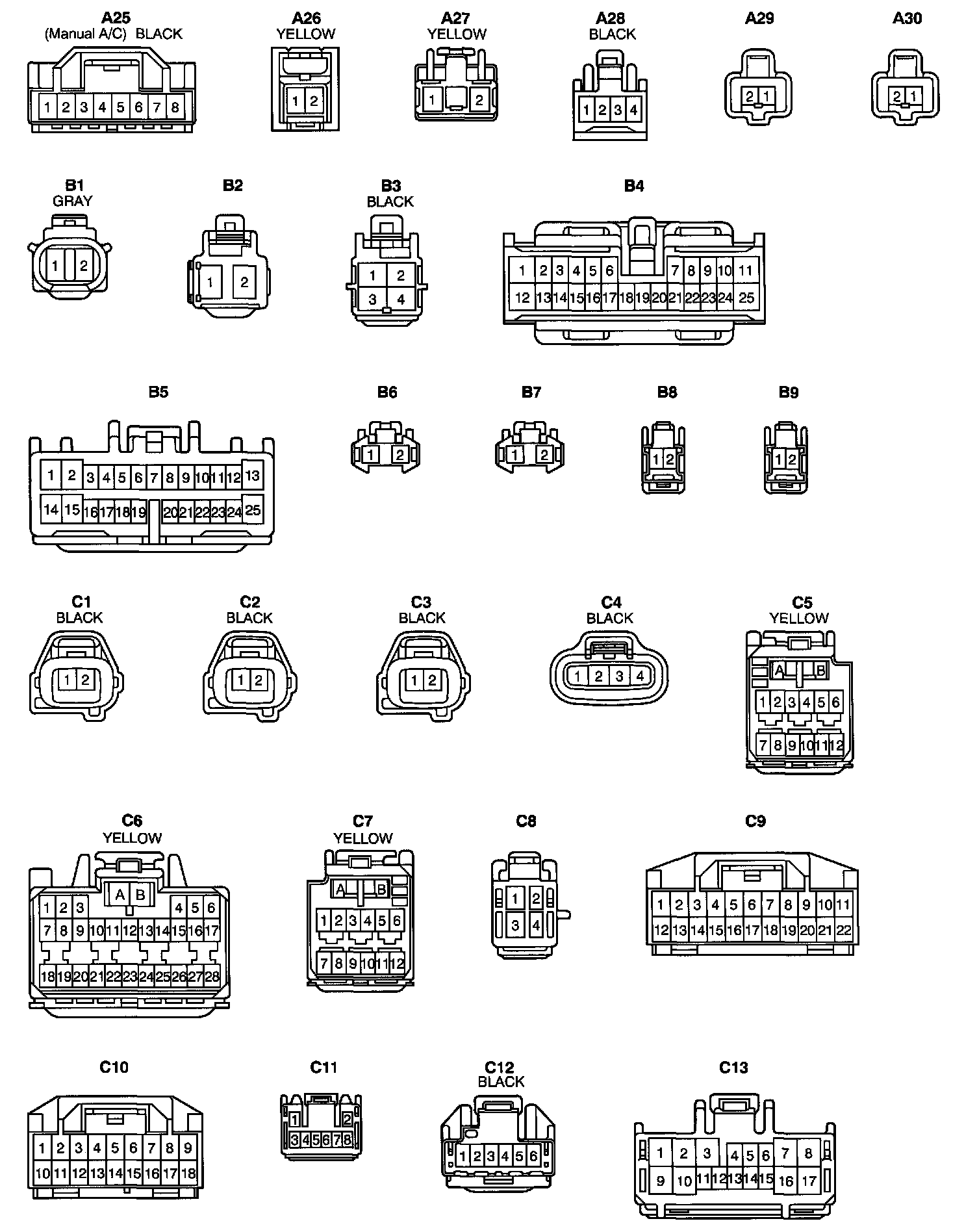

Connector Views (A25 - C13):

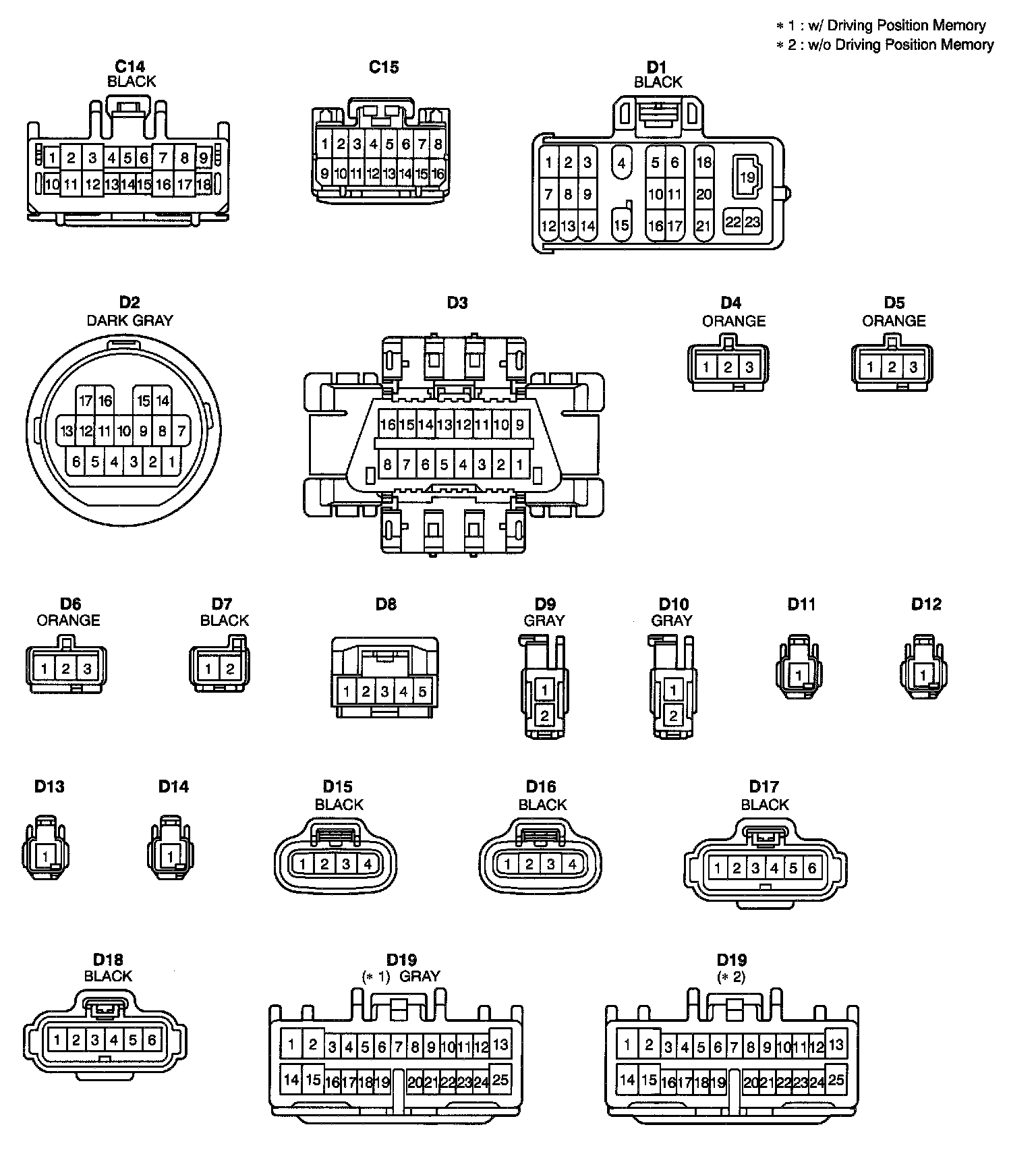

Connector Views (C14 - D19):

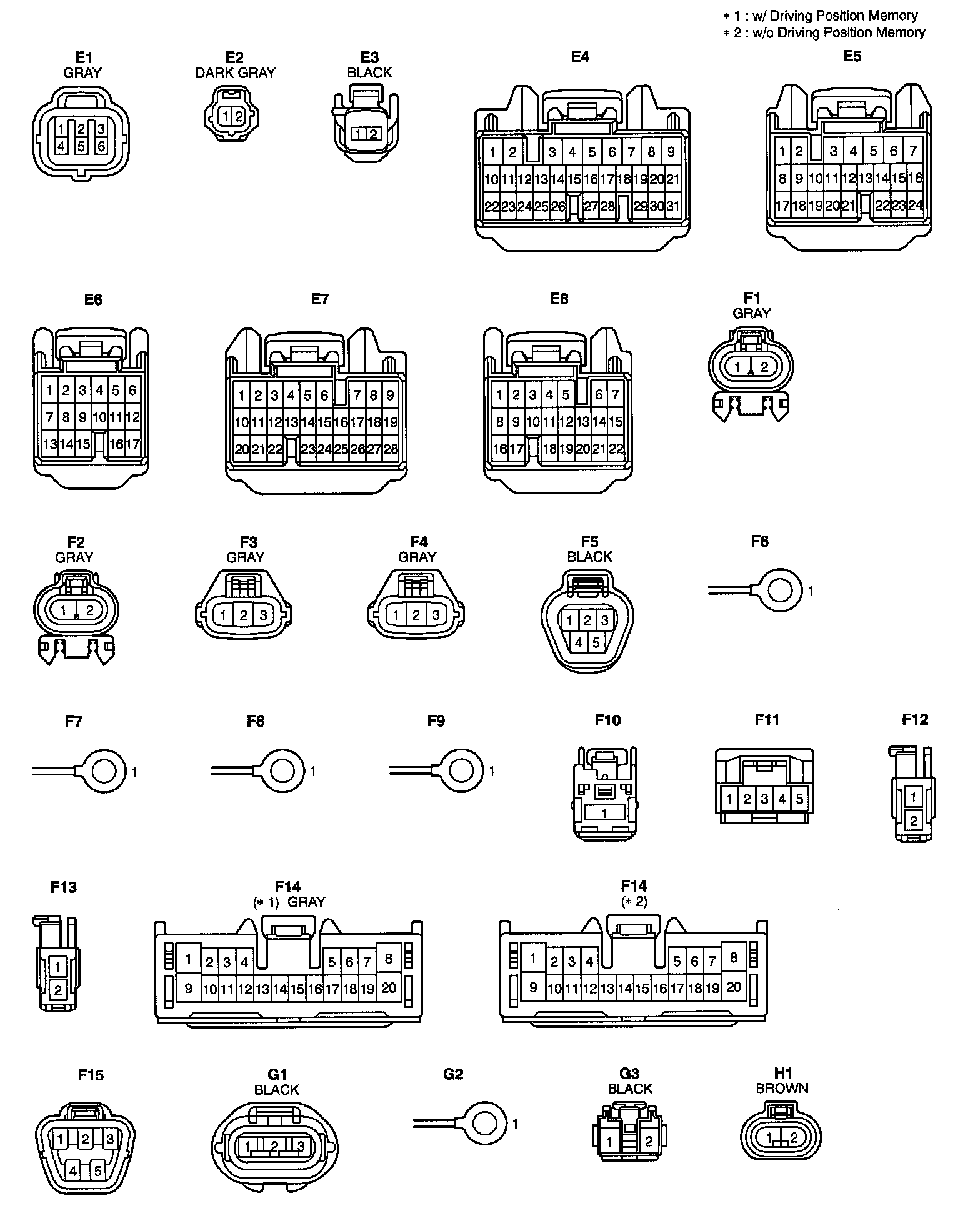

Connector Views (E1 - H1):

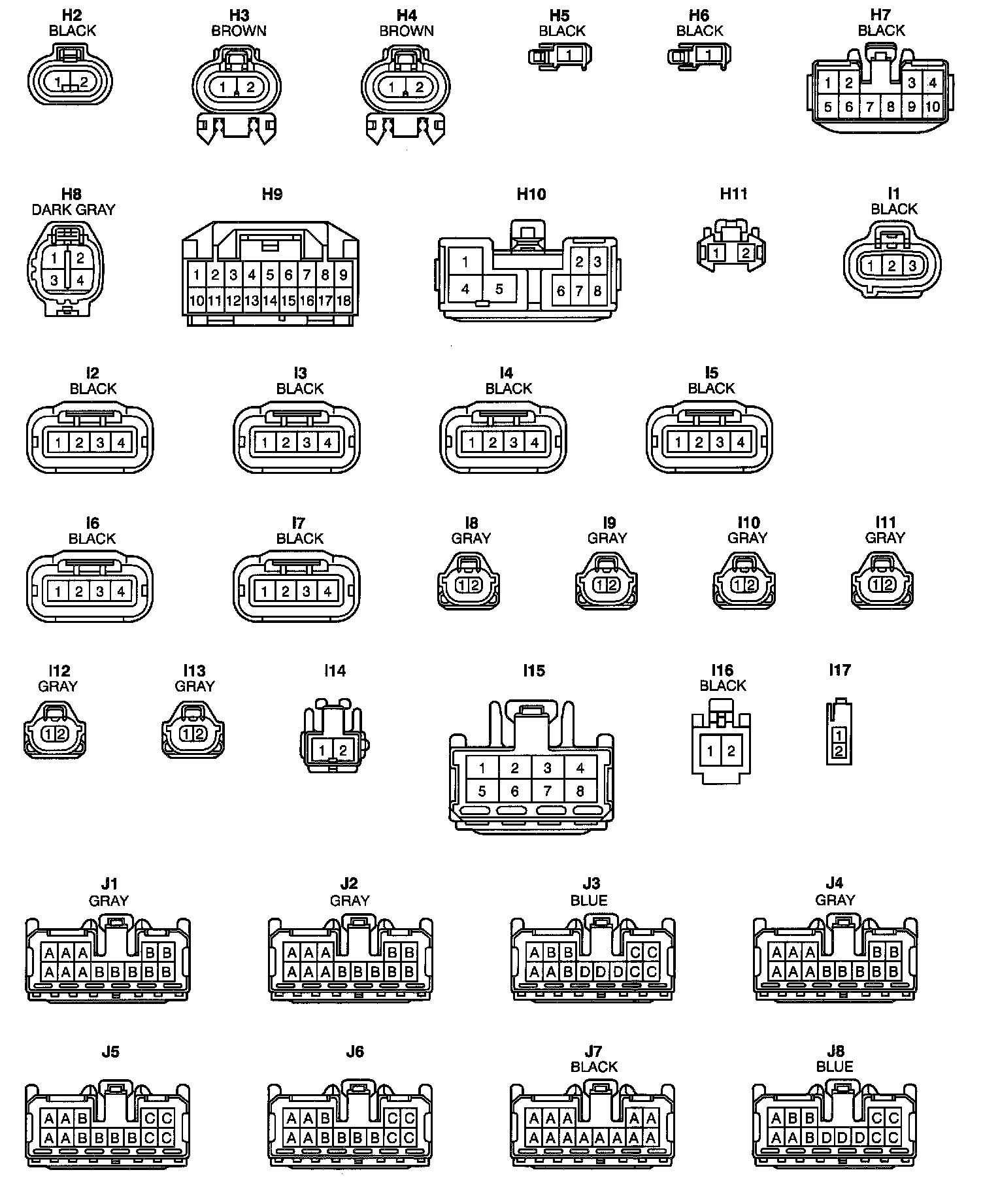

Connector Views (H2 - J8):

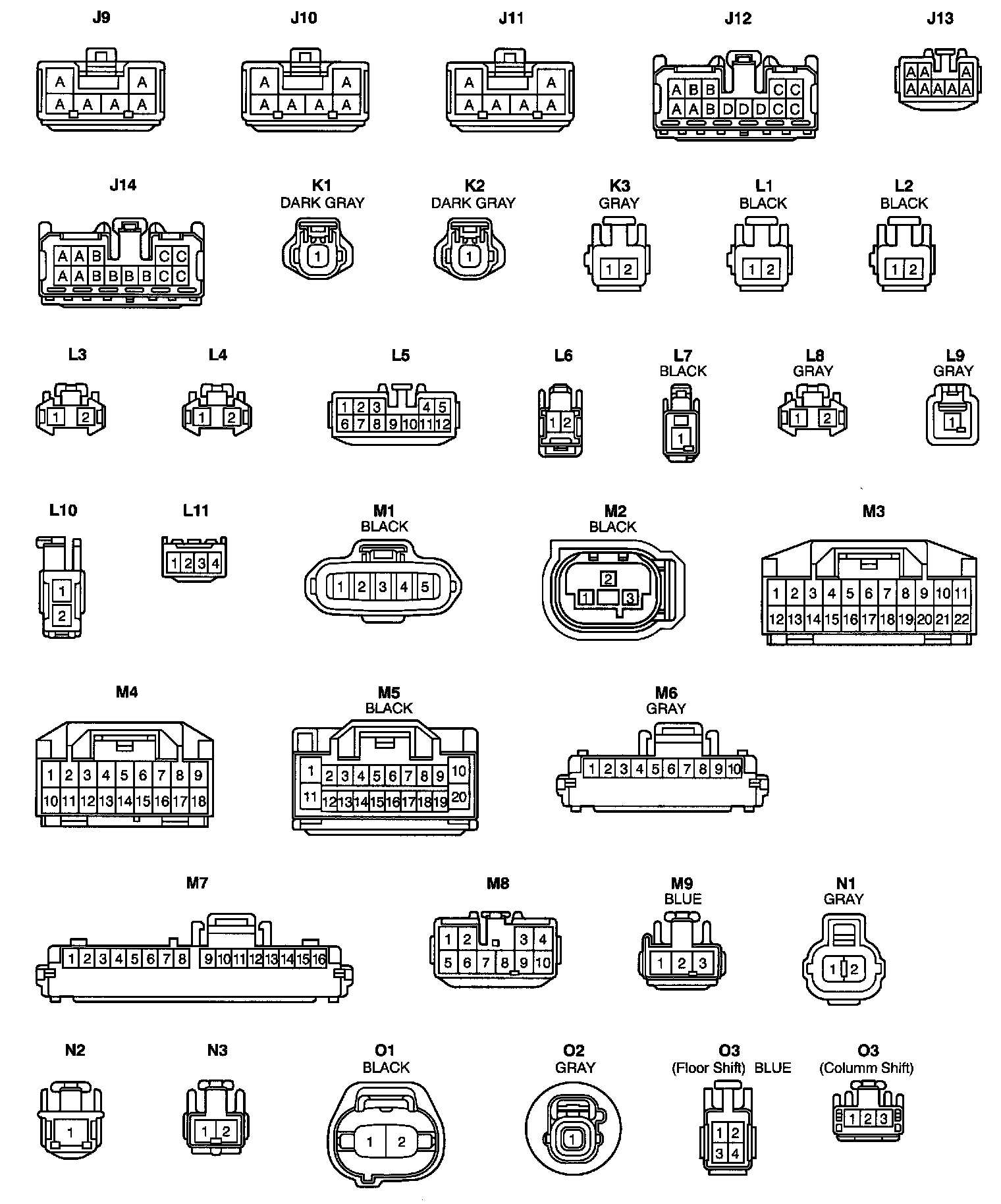

Connector Views (J9 - N3):

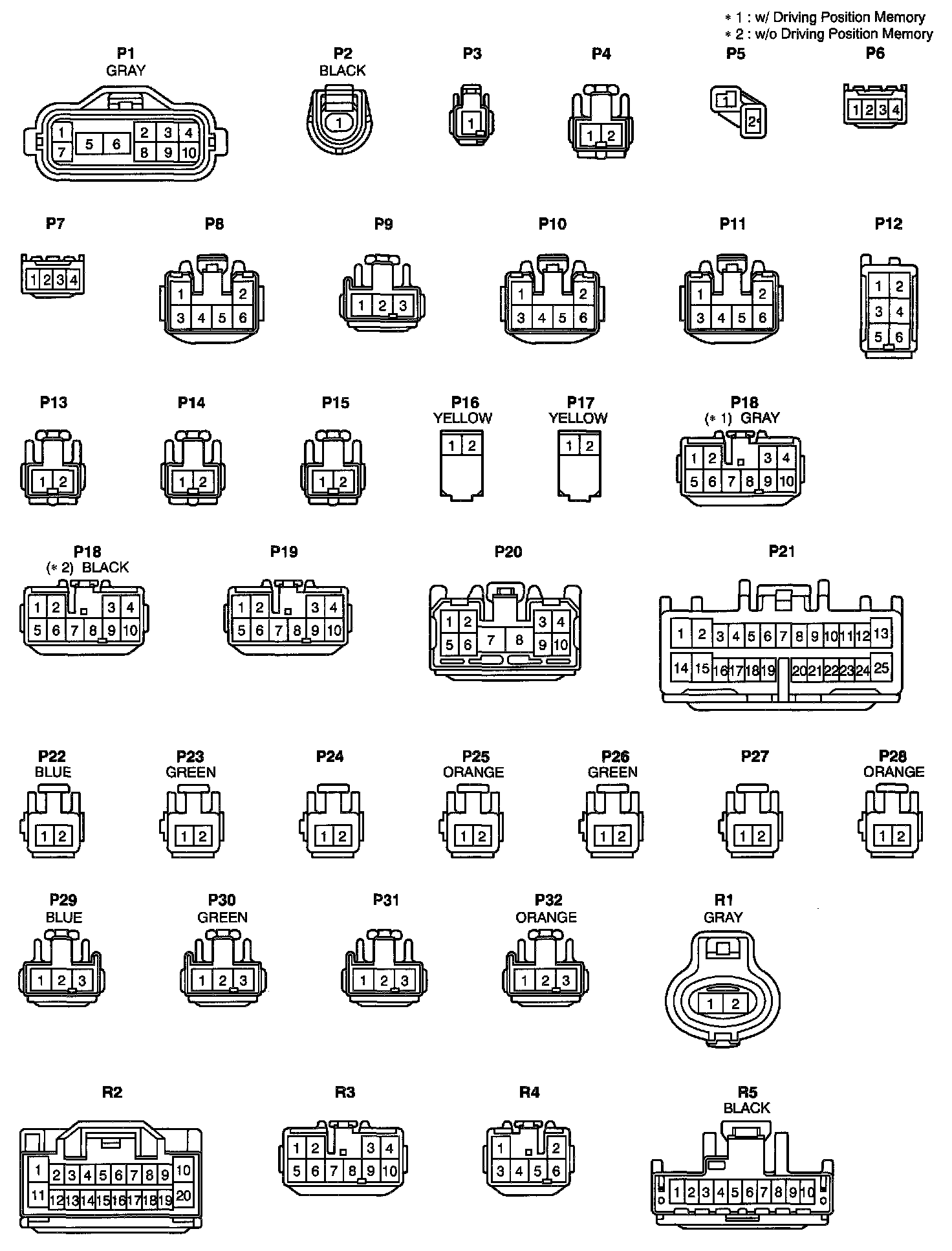

Connector Views (P1 - R5):

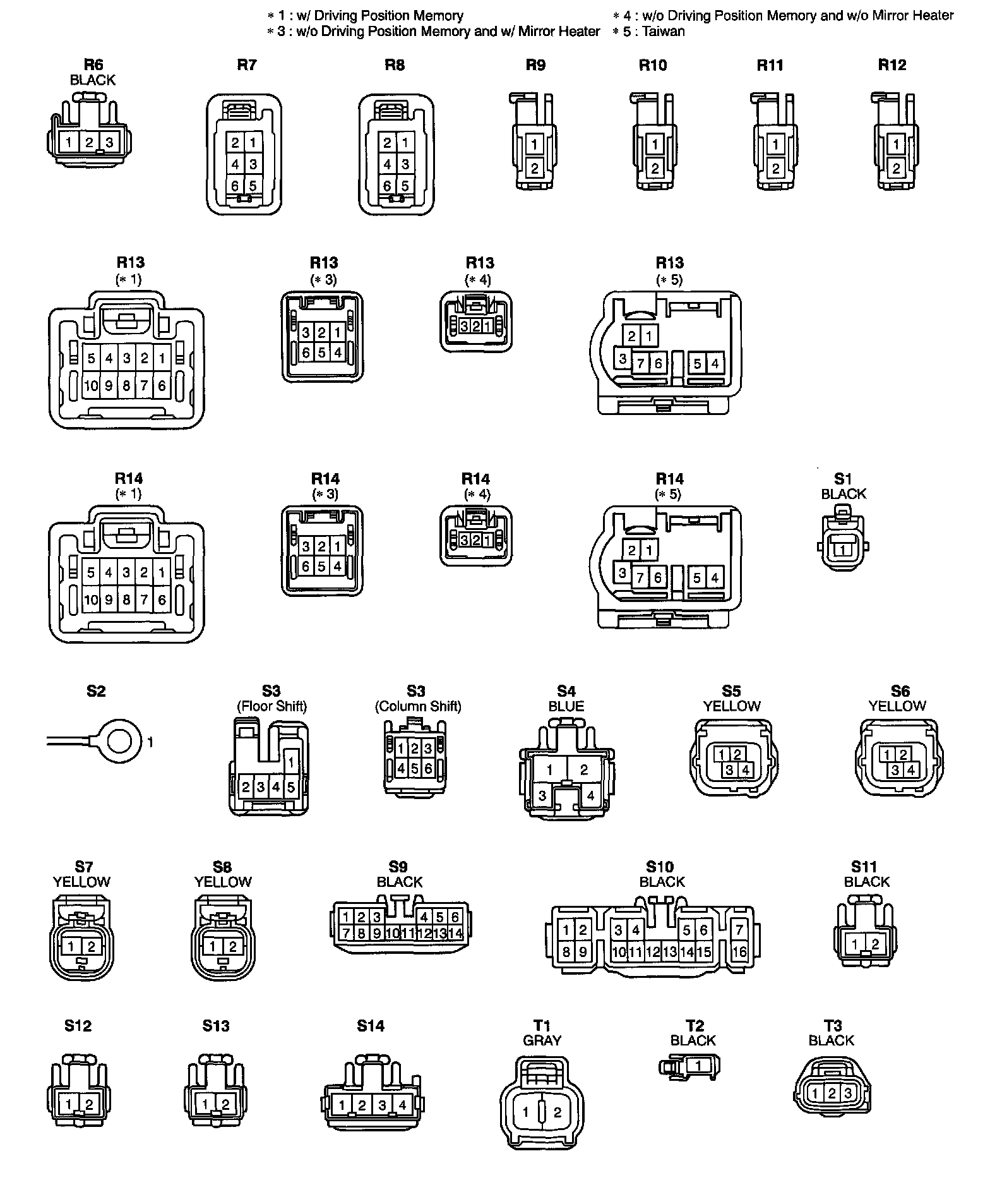

Connector Views (R6 - T3):

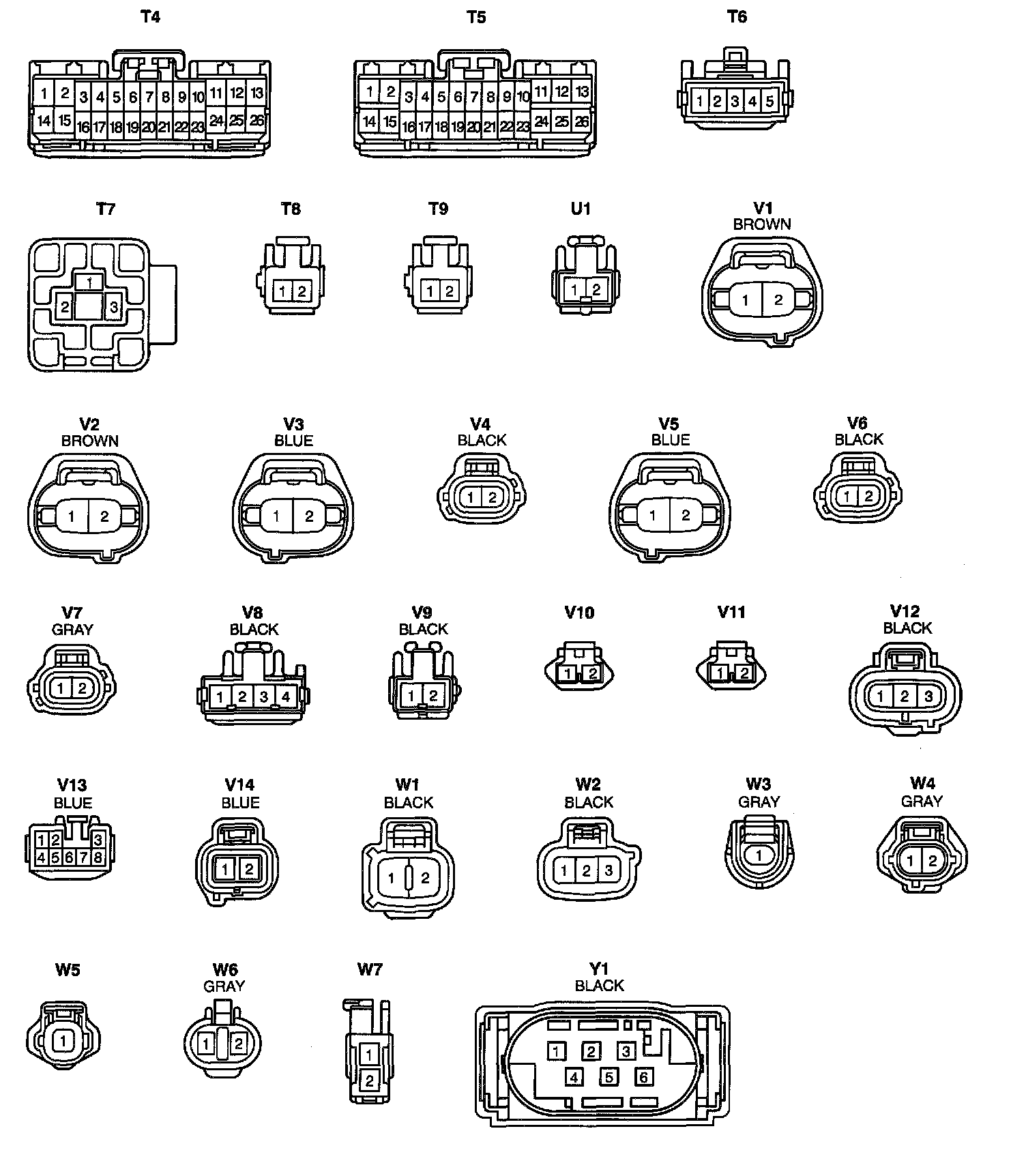

Connector Views (T4 - Y1):
