Door Courtesy Switch Circuit

CIRCUIT DESCRIPTION
The door courtesy switch goes on when the door is opened and goes off when door is closed.

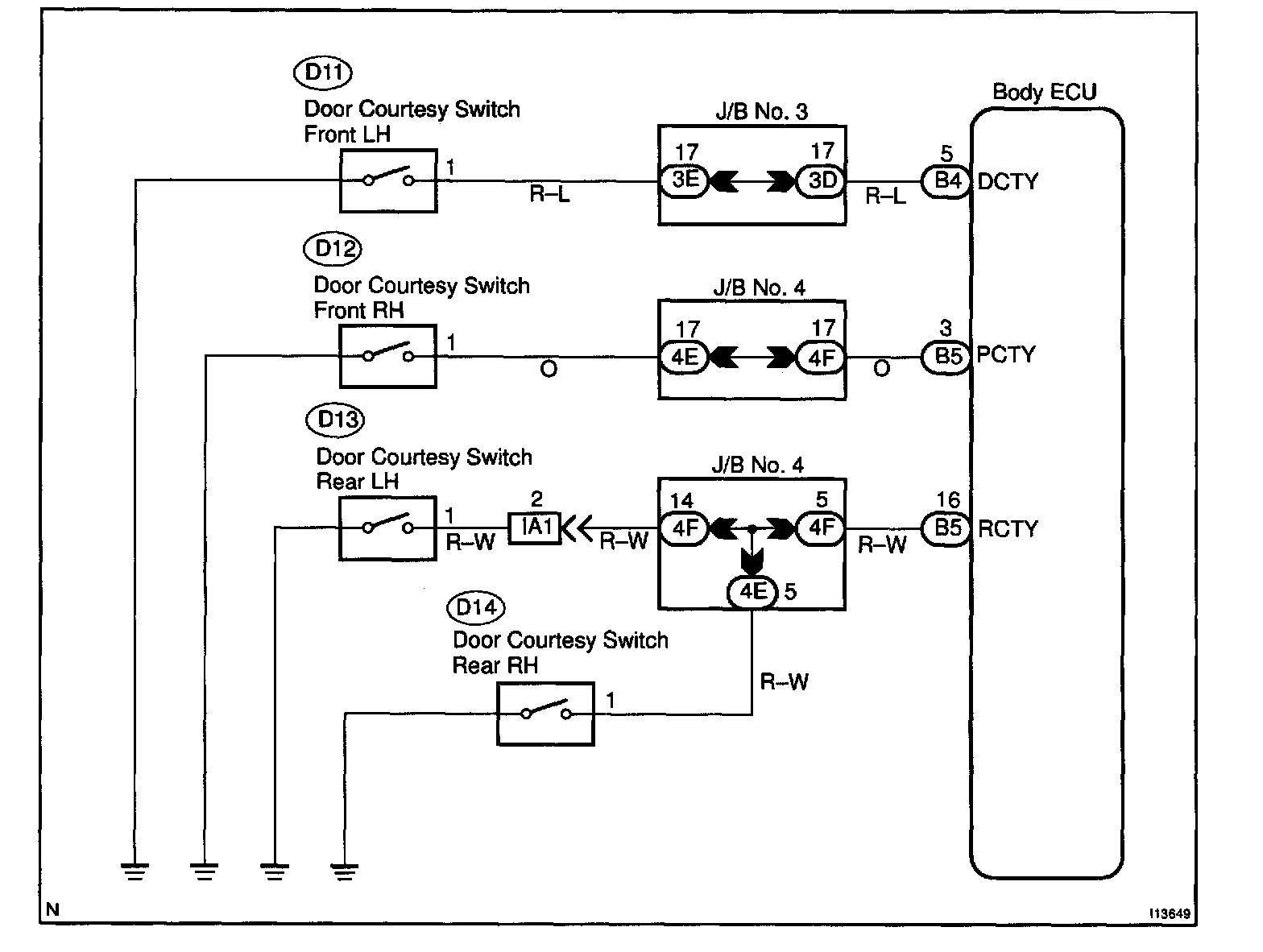

Wiring Diagram:

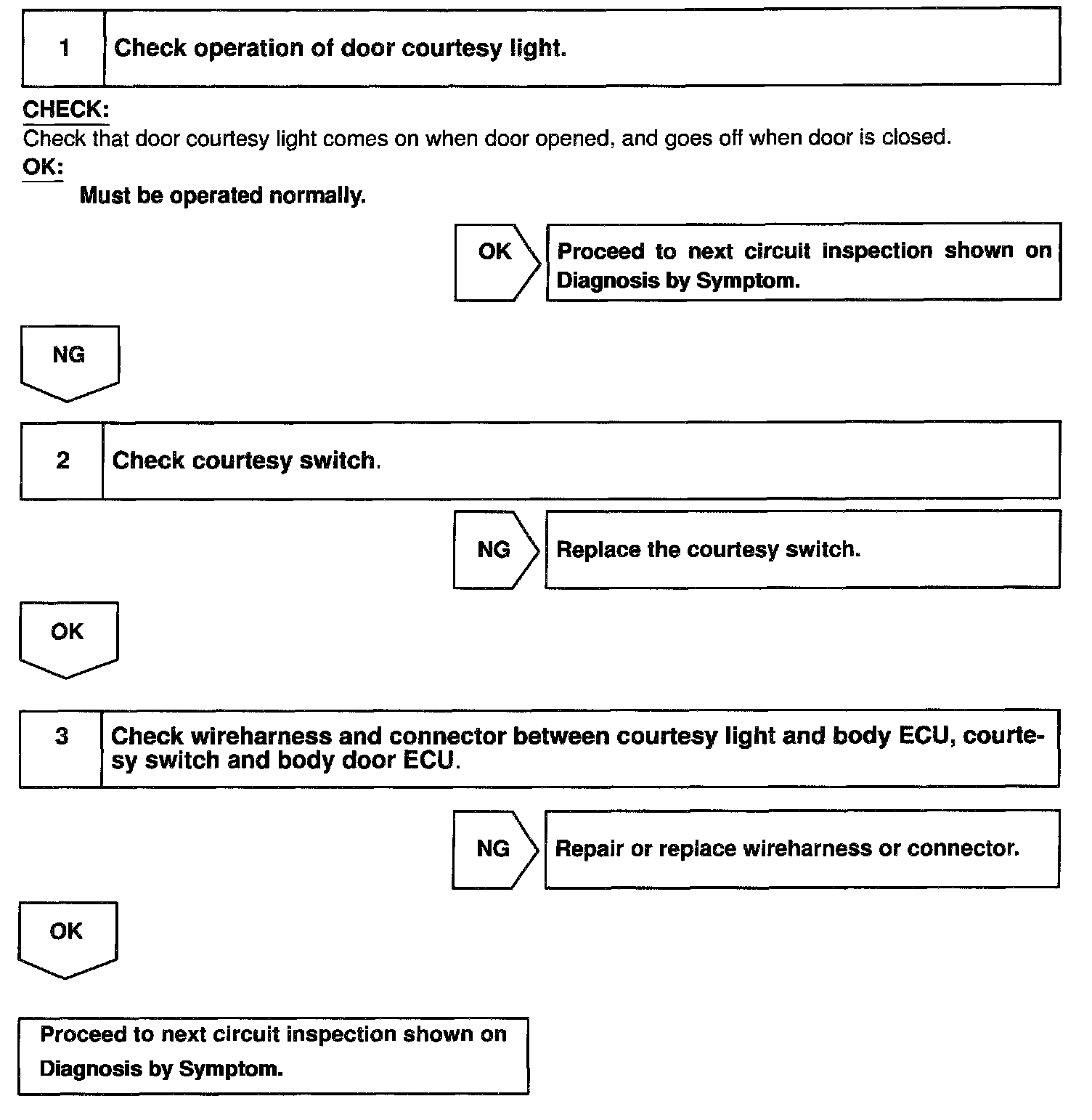

Steps 1 - 3:




INSPECTION PROCEDURE
