Engine Torque and Sequence

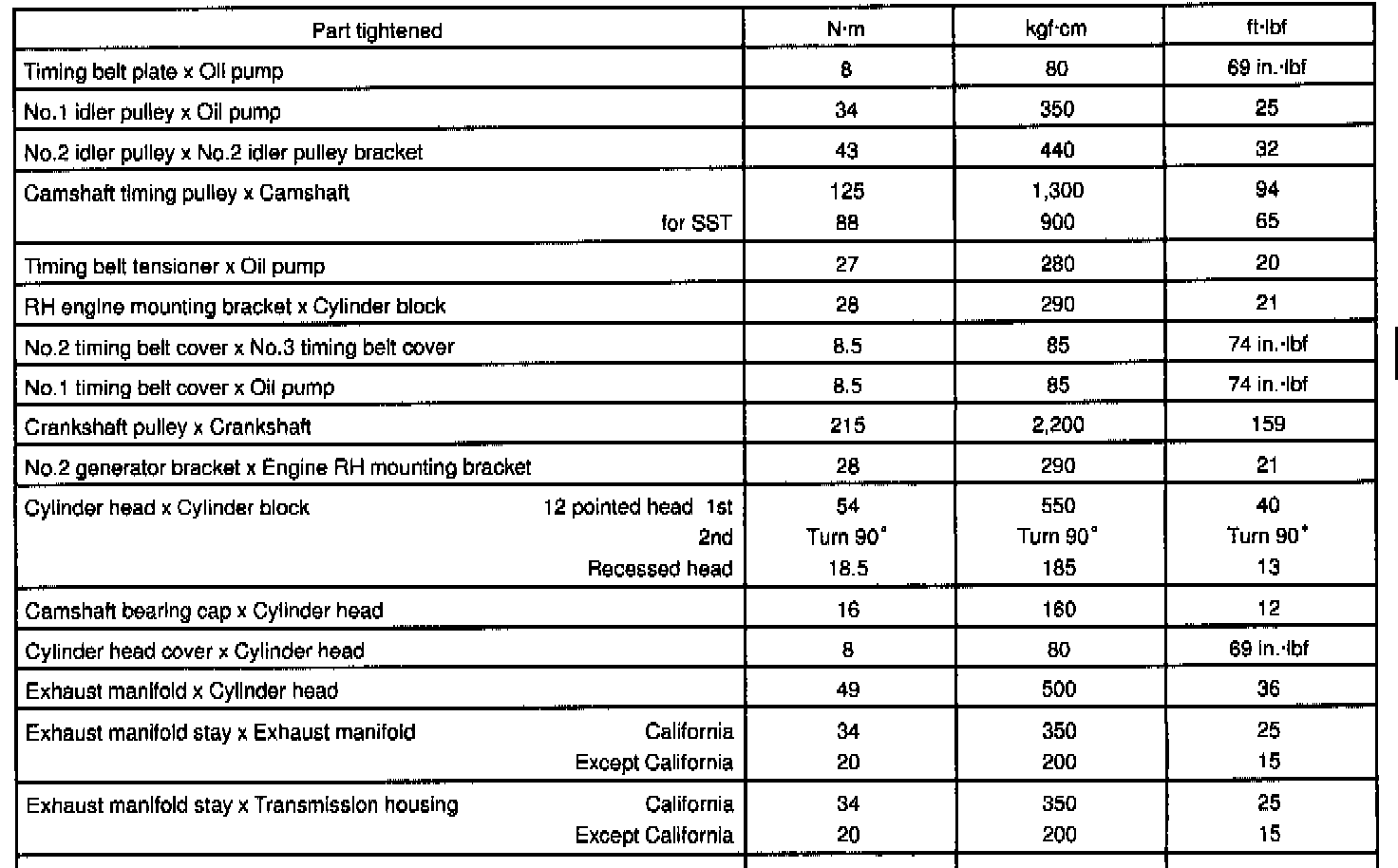

1MZ-FE Engine Mechanical Torque:

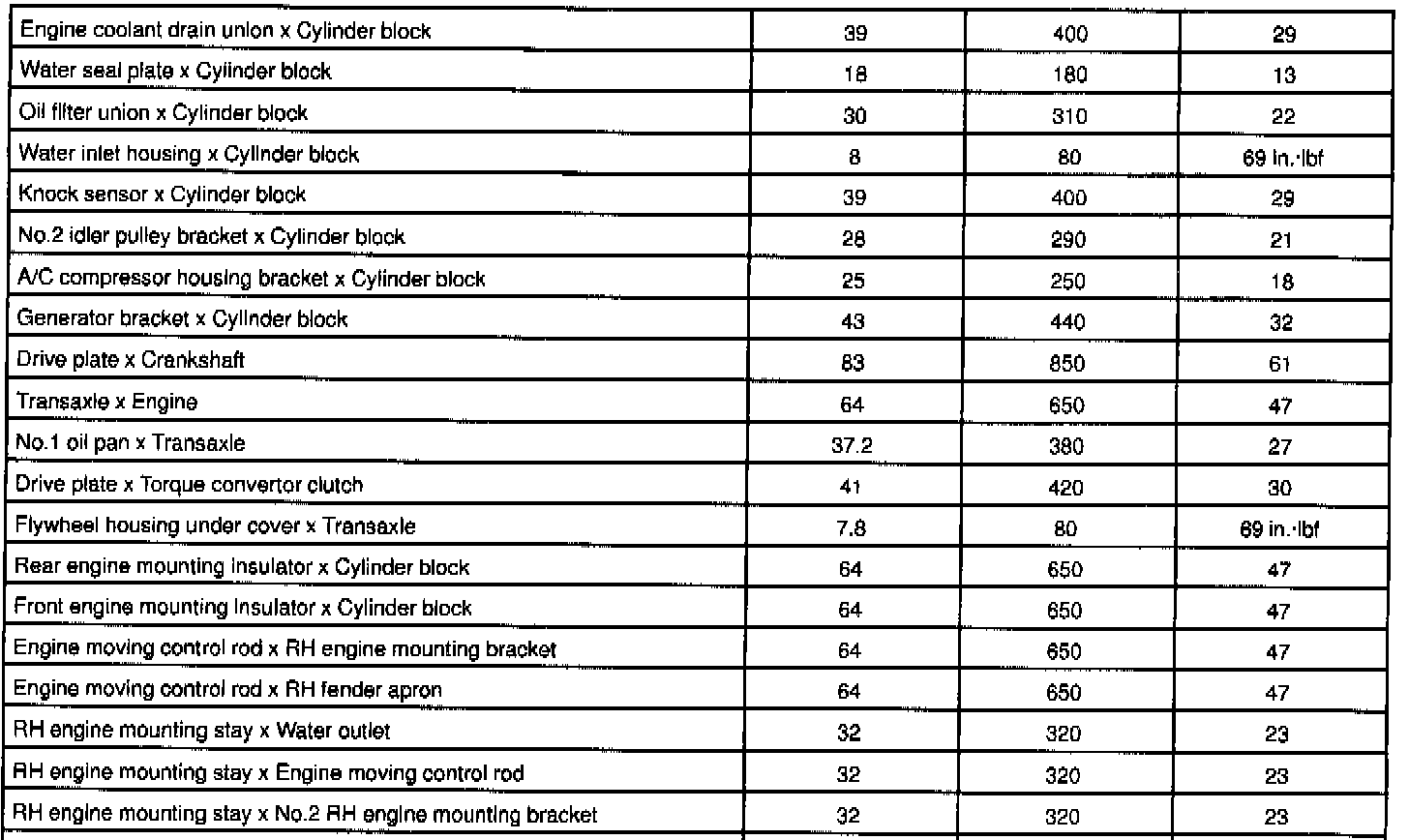

1MZ-FE Engine Torque Cont.:

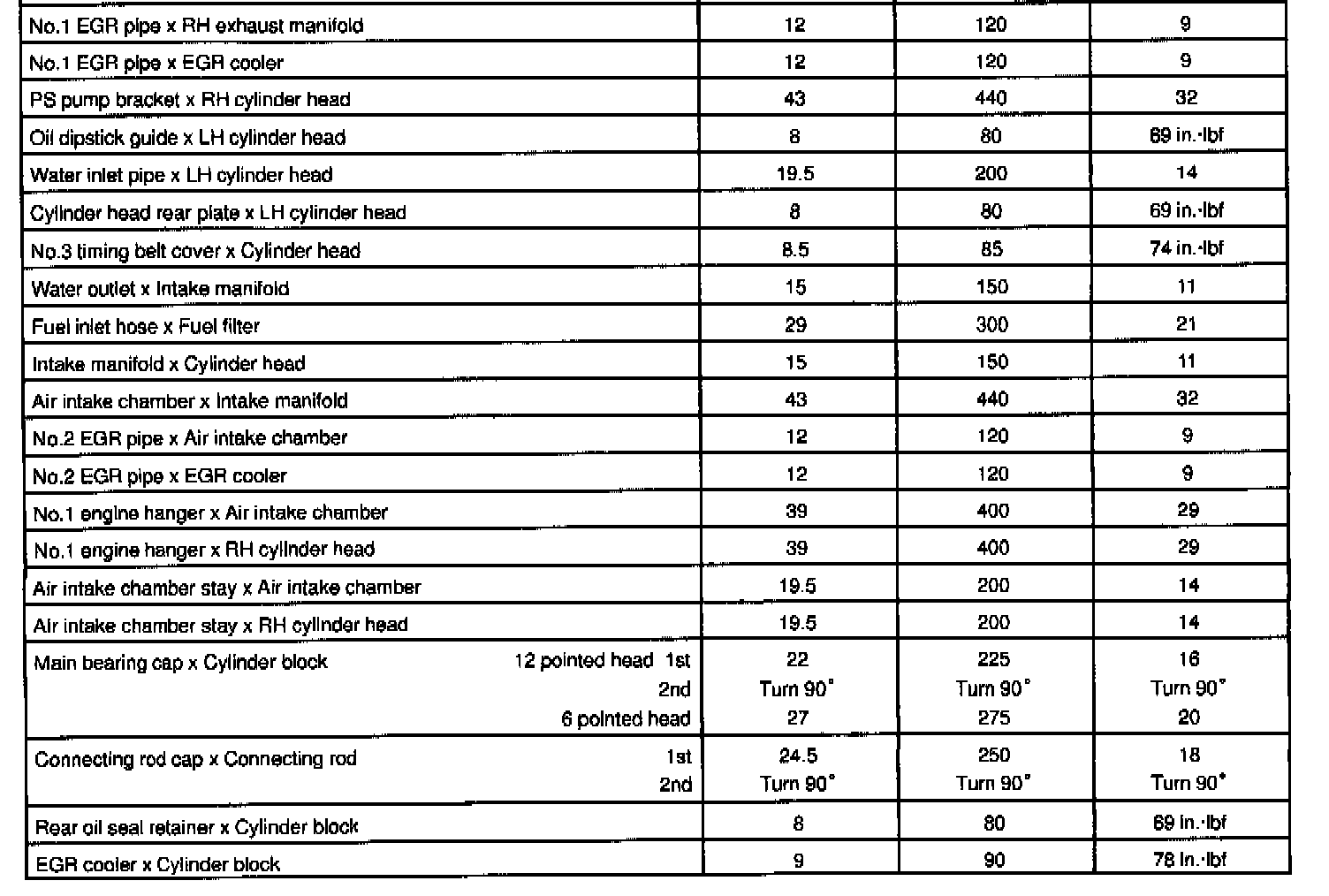

1MZ-FE Engine Torque Cont.:

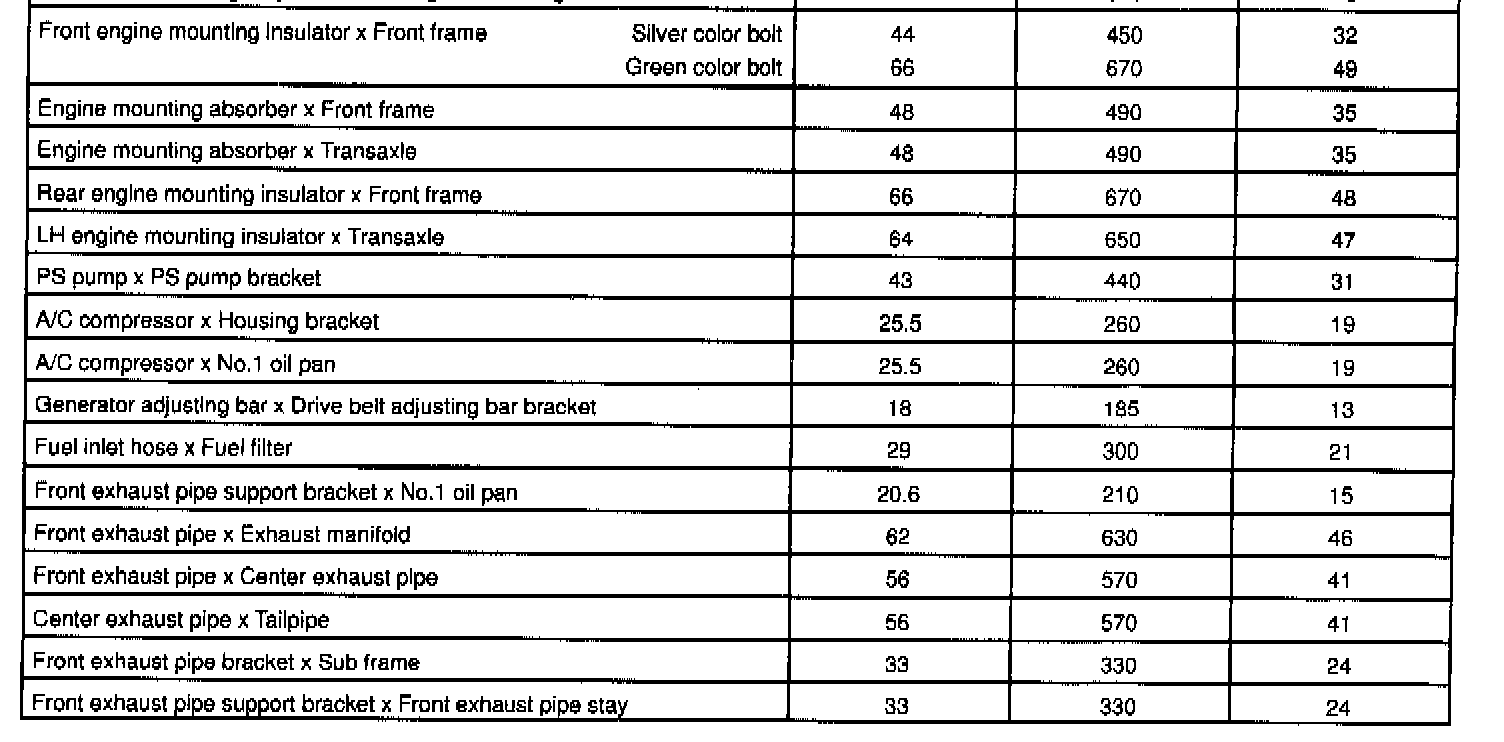

1MZ-FE Engine Torque Cont.:

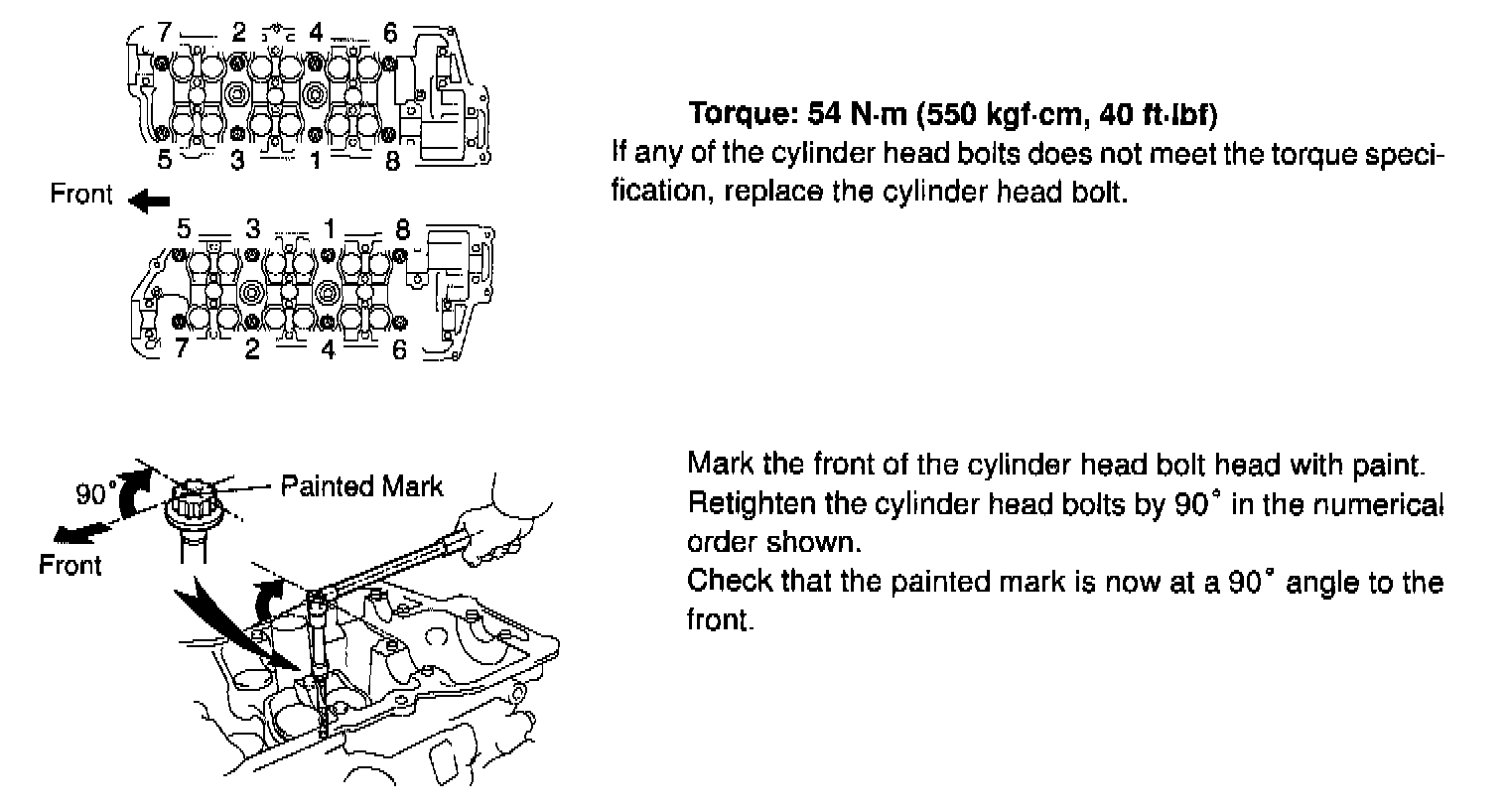

1MZ-FE Cylinder Head Torque & Sequence:

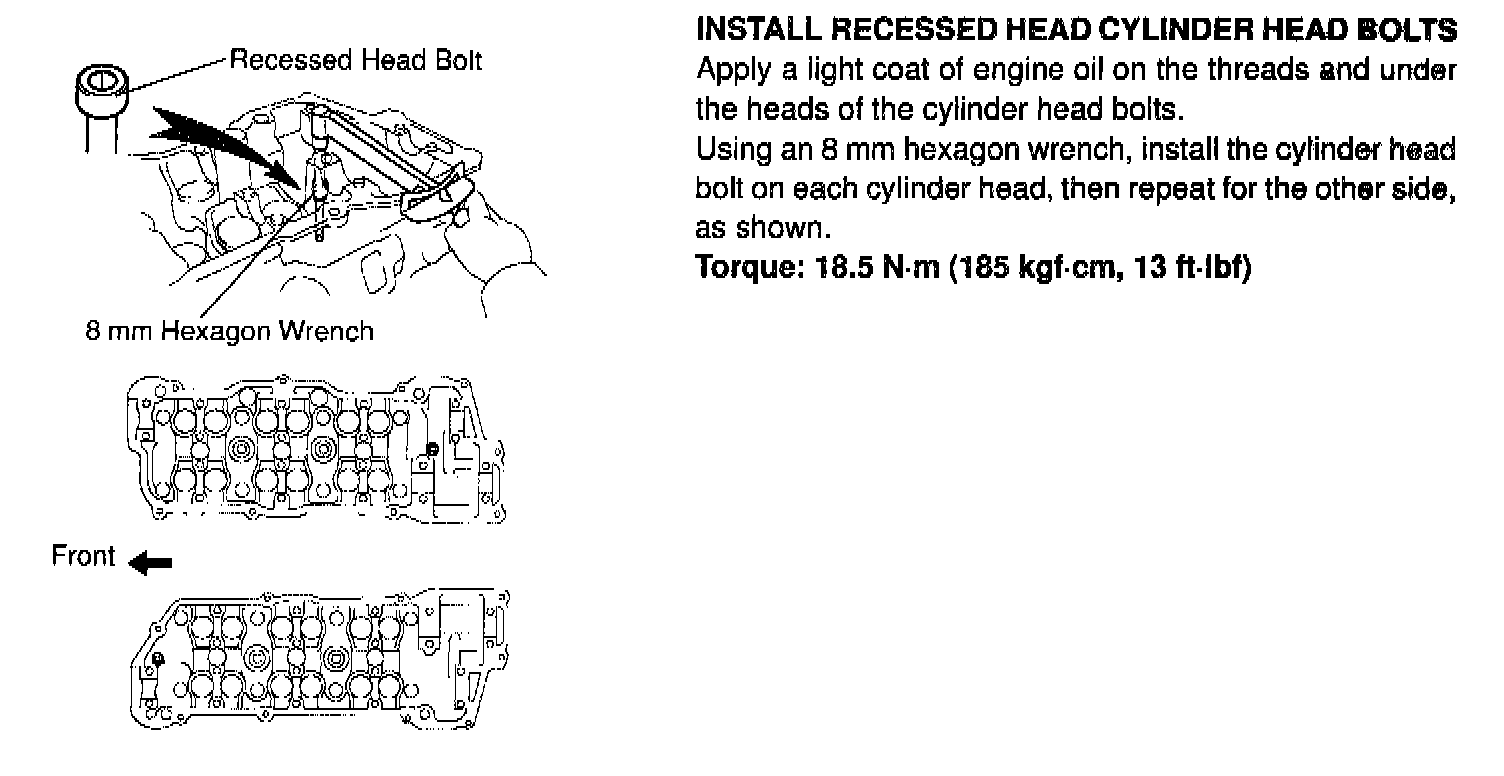

1MZ-FE Cylinder Head Torque & Sequence Cont.:
