Oil Pump, Engine

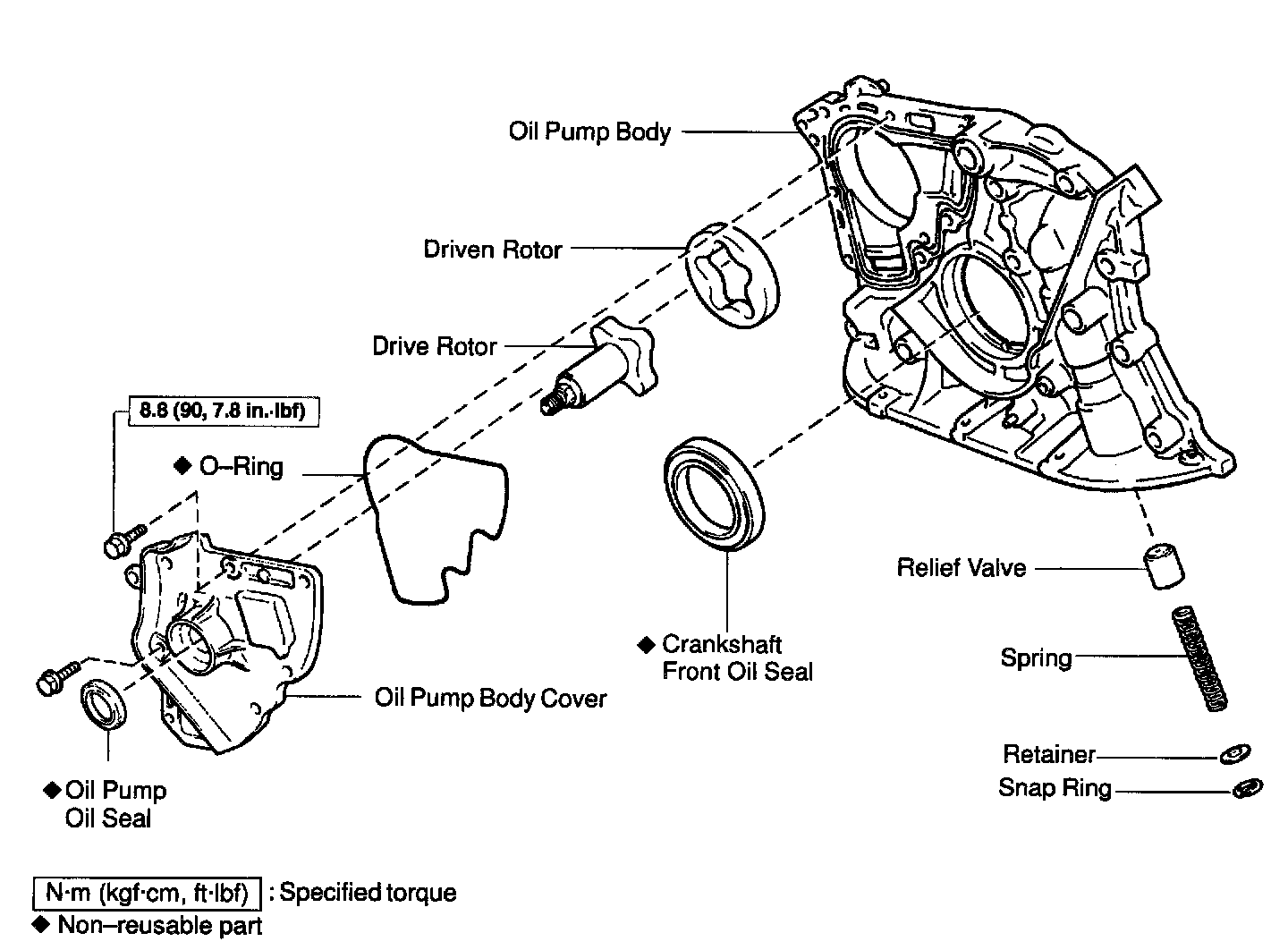

OIL PUMP REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS





Part 1 of 3





Part 2 of 3





Part 3 of 3
